Home Forums Product Discussion & Questions BeoLab BL3500 and the MCL/PL connector

Viewing 20 posts - 1 through 20 (of 85 total)
  • Author
    Posts
  • #44535
    Madskp
    GOLD Member
      • Denmark
      • Topics Started 39
      • Total Posts 965

      I know, this topic has been going on again and again. Can the MCL/PL connector on the BL3500 be used for direct connection of a iPhone/streaming device/ TV etc. and can it be turned on automatically?

      To start with, I don’t know if this thread will answer these questions? But I got so inspired by how far we got with alternative uses of the 1611 converter and MCL2AV in this thread https://beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/ (where parts of this was also discussed) that I thought lets try this approach for this subject also but in a separate thread.

      My take on this is to test ideas (crazy or not) I or other members get, so fell free to chime in with ideas and/or help with testing them. Any help is appreciated as there are variations in different hardware and software revisions that I will not be able to cover my self as I only got one BL3500.

      Also I am ready to be proven wrong so please let me know if you think I made a wrong assumption from my test result. I am always ready to try a test again.

      I know that there are several alternative options to make use of the BL3500 via its ML or MCL/PL connector, and I will also mention them in one of the first posts in this thread so it’s easy to see which possibilities there are for those use cases if you just need a working solution.

      Warning this is going to be a long thread

      #44536
      Madskp
      GOLD Member
        • Denmark
        • Topics Started 39
        • Total Posts 965

        Knowledge about the BL3500

        Link to BW product page: https://beoworld.org/prod_details.asp?pid=373

        Link to BW faq regarding BL3500: https://www.beoworld.org/faq_view.asp?id=80

        Beolab MKI (originally called LCS 9000) has an 8 pin connector on the back marked MCL. serial numbers are lower than 19343452

        Beolab MKII has an 8 pin connector often refered to as powerlink on the back, but according to the servicemanaul for BL3500 MKII only intended for use with Beolink Wireless 1 (W1). No pinout for the connector is shown in the service manual other than pin 6 in the Din connector being data. Serial numbers on BL3500 MKII are from 19343452 and up

        Not confirmed knowledge about the BL3500

        A user on Reddit https://www.reddit.com/r/BangandOlufsen/comments/rvr4f4/best_way_to_modernise_a_beolab_3500_soundbar_as/ apparently has a setup with a BL3500 MKI (SW 1.1) where he is injecting 5V from a USB power adapter to turn It on. User Matator has been in contact with this person who has mentioned that the power is connected to pin 1 and 7 on the DIN connector. It has not been possible for Matador, Guy or me to replicate this in our test’s in this thread https://beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/17/#post-16910 Nor with the reverse pin combination (pin 3 and 6) or the dataline and its shield (pin 6 and 7).

        #44537
        Madskp
        GOLD Member
          • Denmark
          • Topics Started 39
          • Total Posts 965

          Use cases via ML connector

          Beolab 3500 MKI or MKII connected to Beolink Converter type 1611, two sound inputs controlled with Beo remote via custom cable https://beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/4/#post-14017 thanks to Matador for the great drawing.

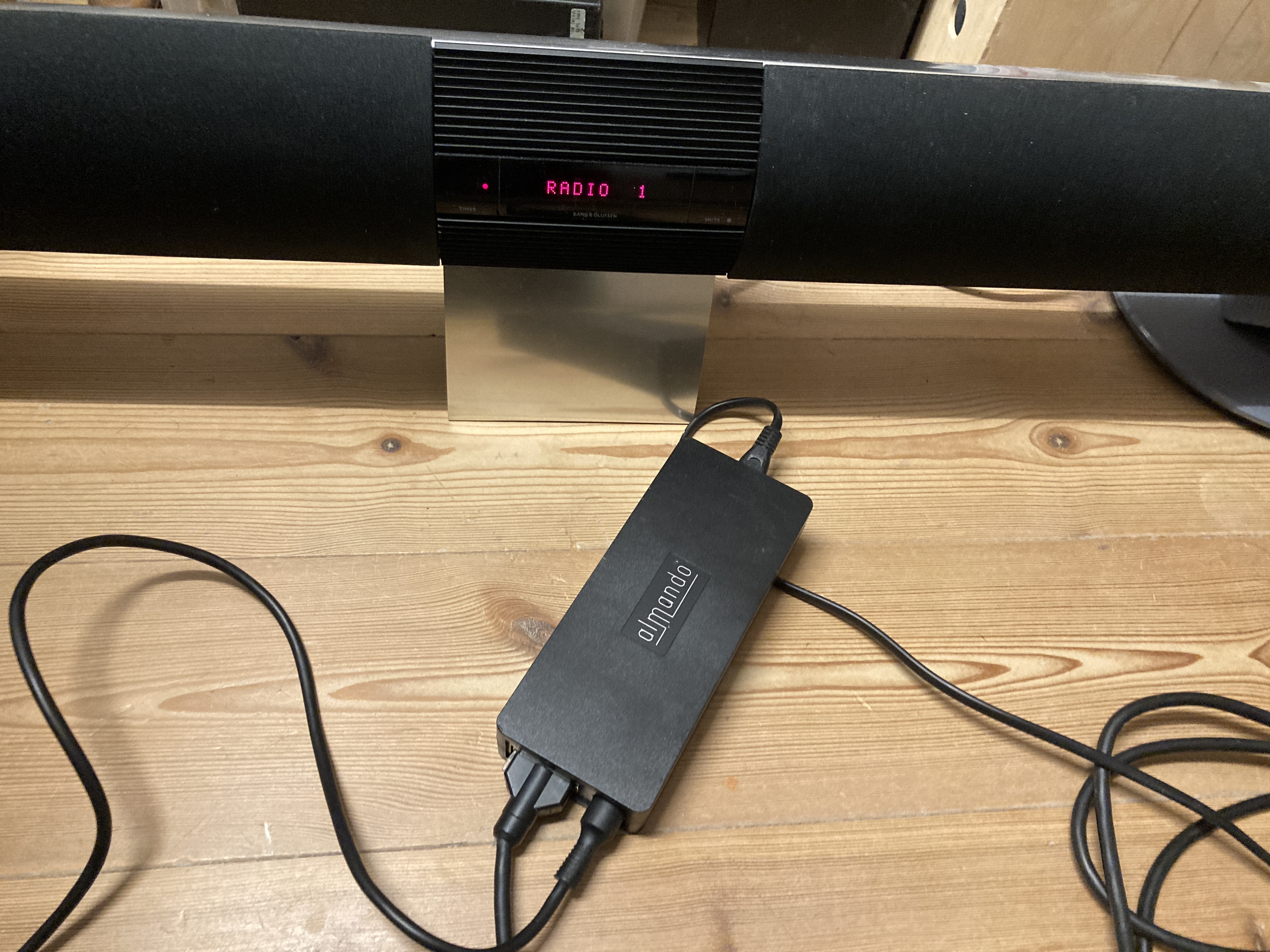

          Beolab 3500 MKI or MKII connected to Almando Masterplay with sound detection input https://almando.com/almando-masterplay.html?___store=endkunde_eng&___from_store=default

          According to the user manual for the product, the timer function on the BL3500 has to be active for it to work.

          I have no experience with this product, and haven’t read about experience with it.

          Use cases with MCL/Poverlink connector

          Beolink 3500 MKI MCL connector

          Custom cable pinout post number 2 in this thread https://www.hifi4all.dk/forum/forum_posts.asp?TID=32157&PN=1&TPN=30

          Beolab activated with Menu+0+4+GO command. Powers of at any other button press so no volume regulaton on the BL3500 or with remote. The MCL connector can be Can be used this way even though a ML source is also connected to the BL3500



          Beolink 3500 MKII PL connector

          Custom cable Custom cable pinout post number 2 in this thread https://www.hifi4all.dk/forum/forum_posts.asp?TID=32157&PN=1&TPN=30

          Beolab activated with Menu+Menu+0+4+GO command. Powers of at any other button press so no volume regulaton on the BL3500 or with remote. The PL connector can be used this way even though a ML source is also connected to the BL3500

          #44538
          Madskp
          GOLD Member
            • Denmark
            • Topics Started 39
            • Total Posts 965

            My Beolab 3500 is and MKI (SW 1.2) with the MCL connector. I have used the service manual for the BL3500 (its called LCS9000 servicemanual) available on Beoworld but also a lot of other servicemanuals, and MCL related documentation to get information and inspiration and I will try to mention them as we go along.

            To get A baseline for testing I choose to start with a test of the BL3500 in a MCL network as it was supposed to be used to confirm everything working and to know what to expect for certain scenarios. I have a Beomaster 5500 I have used as the audiomaster in the MCL setup.

            BM5000 – MCL Cable – BL3500

            Tested with both the setting ML off and ML on in the BL3500 service menu (Menu+0+9+GO)

            The sources from the BM5500 is controlable, and volume control is possible. This setup seems to be working as expected.

            With a multimeter I tried to measure voltages on the different pins, and I got a voltage reading of 4,68 V on the data pin (pin 6) relative to all other pins. The voltage would drop slightly for a second when I turned the system into standby, and then continue at 4,68V. I know that the signal has embedded data, so these measurements might not tell everything.

            #44539
            Madskp
            GOLD Member
              • Denmark
              • Topics Started 39
              • Total Posts 965

              As we already know that sound input on the MCL port of the BL3500 is possible when a ML source is also connected, I wanted to try if this was also the case if the MCL source has a datasignal.

              So I made this setup:

              BM5500 – MCL cable – BL3500 – ML cable – 1611 beolink converter – DIN to minjack cable – iphone.

              Tested with the setting ML on in the BL3500 service menu (Menu+0+9+GO)

              Only the source from the 1611 Beolink converter was available

              Tested with the setting ML off in the BL3500 service menu (Menu+0+9+GO)

              Beolab 3500 froze and didn’t react to any remote commands at all.

              So I guess the conclusion of this test is that the BL3500 can’t handle data signals on both the MCL and ML connector at the same time.

              #44540
              Madskp
              GOLD Member
                • Denmark
                • Topics Started 39
                • Total Posts 965

                The MCL connector on the BL3500 MKI will accept both speaker level inputs as stated in B&O specifications, and line level inputs as shown in the use case for the MCL connector in post 3 in this thread. I have also made some tests with this connection in this post https://beoworld.org/forums/topic/beolab-3500-and-1611-converter-settings/page/17/#post-17044

                and found out that signal and ground can be reversed.

                Looking at the diagram in the Beomaster 5500 servicemanual I discovered that the dataline for the MCL speaker connectors are connected to pin 6 in the AUX din, so I started wondering, could this also be used for connection between the Beomaster 5500 and the Beolab 3500.

                As the pinout for those connections are different I made a custom cable:

                BM5500 pin 2 – > BL3500 pin 3 and 5

                BM5500 pin 1 – > BL3500 pin 1

                BM5500 pin 4 – > BL3500 pin 4

                BM5500 pin 6 – > BL3500 pin 6

                Pin 7 on the BM5500 is datalink for tape and CD, so that is not used for this.

                Tested with the setting ML off in the BL3500 service menu (Menu+0+9+GO)

                This was not working.

                Wondering and going through diagrams and pinouts for the different connectors I noticed that the BL3500 has data shield on pin 7 connected directly to ground internally.

                Skærmbillede 2023-03-15 kl. 20.30.36

                But where should I connect that in my custom cable? Looking at MCL pinout’s answers that question:

                Skærmbillede 2023-03-15 kl. 20.27.40

                Ground on both speaker connectors as well as data shield is all connected which means that pin 3, 5 and 7 in the BL3500 MCL connector all has to be connected:

                BM5500 pin 2 – > BL3500 pin 3, 5 and 7

                BM5500 pin 1 – > BL3500 pin 1

                BM5500 pin 4 – > BL3500 pin 4

                BM5500 pin 6 – > BL3500 pin 6

                Tested with the setting ML off in the BL3500 service menu (Menu+0+9+GO)

                Success

                This is working just the same as with the MCL connection 🙂

                Voltage readings on the data pin (pin 6) are the same 4,68V as I registered with the MCL connection

                One thing to note from this test is that the BM5500 is the only product where I have found that the data pins in the Aux connector and the MCL speaker connector are connected internally in the Beomaster, so the result of this test might not be the same with other audiomasters.

                One other note that I don’t know if has any relation to this is the description of an obsolete Powerlink cable in the Beolink handbook where it is stated that pin 3 and 7 are short circuited. In my head that doesn’t make much sense in a powerlink cable where pin 3 is signal and 7 is data ground, but might make sense if it was used somehow with the BL3500??



                #44541
                Madskp
                GOLD Member
                  • Denmark
                  • Topics Started 39
                  • Total Posts 965

                  After I found out the pin 3, 5 and 7 has to be connected for the BL3500 to work with data signals and communicate with an audimaster I decided to try this in combination with voltage injection of 5V on pin 6 and 7 and afterwards on pin 1 and 7 with No result. I also tried it in combination with remote control commands as if the 5V would only be enough to get the speaker ready for receiving commands. Also tried it with the BL3500 in option 0.

                  #44542
                  Madskp
                  GOLD Member
                    • Denmark
                    • Topics Started 39
                    • Total Posts 965

                    Open Questions/to be investegated further:

                    What is the purpose of option 0 on BL3500? I have a hard time seeing a use case. The reference manual mentions option 0 if you wan’t to disable the IR receiver, but not for what purpose.

                    Can the BL3500 work on the AUX conenctor on other Audimasters? Or the MCL2AV?

                    Can the BL3500 work with powerlink and the right adapter? Are the datasignals the same?

                    This thread will be continued with my inputs when time allows it, but hopefully also with other inputs

                    #44543
                    Anonymous
                      • Topics Started 0
                      • Total Posts 27

                      Hi,

                      option 0 is used then you have a wireless 1

                      with linkeye connected

                      #44544
                      Madskp
                      GOLD Member
                        • Denmark
                        • Topics Started 39
                        • Total Posts 965

                        Hi, option 0 is used then you have a wireless 1 with linkeye connected

                        thanks for the input. Is it mentioned in a manual or guide somewhere? The reason for asking this is if this is for a connection with Masterlink or Powerlink?

                        There are some mentions of the Wireless 1 being used with BL3500 with powerlink, but not shown in the manuals I have seen.

                        #44547
                        Madskp
                        GOLD Member
                          • Denmark
                          • Topics Started 39
                          • Total Posts 965

                          I have linked to a PeterPan thread before that had the following note under a post about BL3500 and Wireless 1 – perhaps this accounts for the Option 0 setting (when using the first version of Wireless 1):

                          Haven’t seen this version on it before, but he had another post somewhere where there also was a homemade drawing with Powerlink connection between the Wireless 1 and the BL3500. It might be that there was something special in the first version of the wireless 1, but there was also a reference on the Beoworld product page for Beolink Wireless 1 https://beoworld.org/prod_details.asp?pid=1028 stating that the BL3500 would be upgraded with a PL socket to make it compatible with the wireless 1 which doesn’t seem to fit with the wireless 1 only working this way in the first version.

                          It might have only been for a small period of time that this was a thing, so it might not be very well documented.

                          Guess we’ll just have to experiment to get more knowledge 🙂

                          #44545
                          Guy
                          Moderator
                            • Warwickshire, UK
                            • Topics Started 15
                            • Total Posts 1,343

                            thanks for the input. Is it mentioned in a manual or guide somewhere? The reason for asking this is if this is for a connection with Masterlink or Powerlink?

                            I have linked to a PeterPan thread before that had the following note under a post about BL3500 and Wireless 1 – perhaps this accounts for the Option 0 setting (when using the first version of Wireless 1):

                            NOTE

                            The combination Wierless 1, version no. 1780 and BeoLab 3500 version no. 1601 must not be connected to a separate IR-Sensor, here the IR sensor that is built into BeoLab 3500 works.

                            Installation of a separate IR-Sensor therefore only applies to the first version of Wireless 1.

                            Here’s the thread (I used google translate – 3 Mar post refers): https://www.hifi4all.dk/forum/forum_posts.asp?TID=20679&PN=1&TPN=149#top

                            #44546
                            Guy
                            Moderator
                              • Warwickshire, UK
                              • Topics Started 15
                              • Total Posts 1,343

                              I have just been reading through the rest of this thread – some great detective work!  The requirement for pins 3, 5 and 7 to be connected is indeed strange!

                              One thing to note from this test is that the BM5500 is the only product where I have found that the data pins in the Aux connector and the MCL speaker connector are connected internally in the Beomaster, so the result of this test might not be the same with other audiomasters.

                              I think BC9500 is the same (TV AUX pin 6 connected to MCL speakers).  So the data going over an MCL system is Audio Aux Link (AAL).

                              #44548
                              Madskp
                              GOLD Member
                                • Denmark
                                • Topics Started 39
                                • Total Posts 965

                                I think BC9500 is the same (TV AUX pin 6 connected to MCL speakers).  So the data going over an MCL system is Audio Aux Link (AAL)

                                Probably that is. However on any product diagrams they are lead to different pins on the microcomputer in the product. This could of course be for other reasons like not passing a standby all signal through the entire system chain, but only to components in the same room.





                                #44549
                                Madskp
                                GOLD Member
                                  • Denmark
                                  • Topics Started 39
                                  • Total Posts 965

                                  Can the BL3500 work on the AUX conenctor on other Audimasters? Or the MCL2AV?

                                  I have made a test with the MCL2AV that I have, although it’s unstable at the moment, so the result will have to be verified.

                                  But using the same cable that I used for the BM5500 I tried to connect the BL3500 directly to the MCL2AV’s AUX connector, and my Beocord 3500 to the tape connector of the MCL2AV. No IR eye or speakers connected to the MCL2AV.

                                  I was then able to start the Beocord 3500 through the BL3500 and play/stop/FF/RW/step forward and backward, so datalink commands was passed through from AAL to AL signals. However I got no sound through.

                                  Tried again with the BM5500 just to check that my cables were ok and it still worked.

                                  I have to get my MCL2AV going stable again or get another one, but I think the control signal part is interesting.



                                  #44550
                                  Madskp
                                  GOLD Member
                                    • Denmark
                                    • Topics Started 39
                                    • Total Posts 965

                                    I have also tried to modify the cable a little and make a connection from the Powerlink sockets on my BC6 to the BL3500 just to see if that could do anything. No luck though. The Tv playing music on the V.MEM input from an analog source. The BL3500 just turns on briefly shoving V.TAPE, and then turns off again.

                                    #44551
                                    Guy
                                    Moderator
                                      • Warwickshire, UK
                                      • Topics Started 15
                                      • Total Posts 1,343

                                      Interesting results so far – the fact that the MCL2AV AUX socket connection allowed control was useful, but I too don’t understand why there was no sound.  I thought that pins 1 and 4 always output the sound from MCL2AV.

                                      My gear is put away at the moment so I think it will be next week before I am able to try anything similar (with a known working MCL2AV), but until then I will be following with interest!

                                      #44552
                                      Madskp
                                      GOLD Member
                                        • Denmark
                                        • Topics Started 39
                                        • Total Posts 965

                                        Interesting results so far – the fact that the MCL2AV AUX socket connection allowed control was useful, but I too don’t understand why there was no sound. I thought that pins 1 and 4 always output the sound from MCL2AV. My gear is put away at the moment so I think it will be next week before I am able to try anything similar (with a known working MCL2AV), but until then I will be following with interest!

                                        I am also confused as to why the sound is not comming through as it is from the BM5500 that also output sound on pin 1 and 4. I think I will have to focus on fixing the instabilities in my MCL2AV to be sure of the results.

                                        #44553
                                        Madskp
                                        GOLD Member
                                          • Denmark
                                          • Topics Started 39
                                          • Total Posts 965

                                          Madskp wrote: Can the BL3500 work on the AUX conenctor on other           Audimasters? Or the MCL2AV?

                                          I have made a test with the MCL2AV that I have, although it’s unstable at the moment, so the result will have to be verified. But using the same cable that I used for the BM5500 I tried to connect the BL3500 directly to the MCL2AV’s AUC connector, and my Beocord 3500 to the tape connector of the MCL2AV. No IR eye or speakers connected to the MCL2AV. I was then able to start the Beocord 3500 through the BL3500 and play/stop/FF/RW/step forward and backward, so datalink commands was passed through from AAL to AL signals. However I got no sound through. Tried again with the BM5500 just to check that my cables were ok and it still worked. I have to get my MCL2AV going stable again or get another one, but I think the control signal part is interesting.

                                          Got the MCL2AV fixed. Ended up replacing the last 3 transistors in the power supply circiut, and now it seems to be stable, so continuing testing.

                                          I am still able to control the Beocord 3500 from the Beolab 3500 via the MCL2AV and my custom cable, but still no sound. What I didn’t notice in my earlier test was that A.TAPE is displayed for a couple of seconds on the BL3500 and the it goes back to showing the clock, just like it does when nothing is connected to it.

                                          So it seems that the BL3500 is passing the control signals through to the MCL2Av, but is not getting the signal back it needs to confirm that the source is at the other end and therefor is not playing any sound.

                                          Compared to the BM5500 the data signals on the MCL and AUX is connected to different pins on the Microcomputer in the MCL2AV, and might therefore have differences that makes them incompatible, so this might only work for certain Beomasters/Beocenters where the signals are internally connected.



                                          #44554
                                          Guy
                                          Moderator
                                            • Warwickshire, UK
                                            • Topics Started 15
                                            • Total Posts 1,343

                                            Compared to the BM5500 the data signals on the MCL and AUX is connected to different pins on the Microcomputer in the MCL2AV, and might therefore have differences that makes them incompatible, so this might only work for certain Beomasters/Beocenters where the signals are internally connected.

                                            That’s a logical explanation – I can’t think of any other reason for this anomaly. I would test this with mine but I don’t have a controllable input device other than the OneRemote radio which may behave differently. I don’t have a chance to test until next week, but will see what I can do.

                                            EDIT: And great work fixing the MCL2AV!! ?
