[Bart99]

I noticed that after unchecking the options: A.MEM, A.AUX, N.RADIO
the TV tab disappeared in the application. I’m writing if anyone is interested.

[Bart99]

Hello, I do not have an IR eye connected to the Beolink converter.
Unfortunately, I cannot set it to 0 (photo), possible settings are 1,2,4.

I noticed that after unchecking the options: A.MEM, A.AUX, N.RADIO, the TV tab disappeared in the application.



Best regards

[Bart99]

Yes, I have the RADIO box selected.

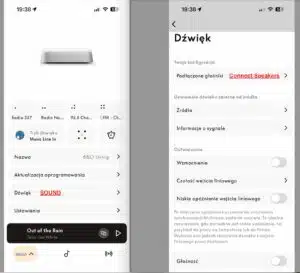

I specially took a screenshot because the name of the NL function is different from that performed by BEO9500.

At the same time, I show the NL settings screen. In my case, it is possible to set only PRIMARY, because after expanding there are no other options, the field is empty.
​



[Bart99]

Hello

[Bart99]

Hello, gentlemen, fantastic information, after the purchased purchase, as Guy wrote “Beo Converter 1611 along with the Audio Aux Line ‘bad. The device began to work;)

Most of the control is great, above all, control of the CD player. It is possible to spin the songs. It is also possible to control the “Tape” cassette player and the “Phone” turntable, which was very surprised by “Tape2”.

Unfortunately, there is a big minus, I do not have the option to enable the analog FM radio. This foundation is not shown in the application, although it is set.

The second minus, as Caropla wrote, unfortunately cannot be controlled by connecting speakers directly to the BeoCenter9500. After starting the Beo 9500 device, the “Mute” button turns on and the speakers on the Beo9500 do not turn on. This is the only minus, because on the amplifier I have a sound like bass, trabs, and you can’t control these settings, despite the active speakers. Of course, you can turn on these voters from a dedicated remote control, but it was about getting rid of Beo Remote.

Thank you all for helping you have fun on New Year’s Eve.

[Bart99]

OK thank you for the information. Then I have to look for this device.

PS All the best to all forum users in the New Year 2024

and a peaceful Christmas.

[Bart99]

[Bart99]

[Bart99]

Hello
I made connections according to your suggestions. I had to replace Beo Converter 1611 (PC, PowerLink, IR, Master Link) on Beo Converter 1615 (AAL Audio Aux Link, Master Link) because the previous one did not have an input: AAL.
I made the appropriate corrections in the Beo Converter NL/ML, the appropriate control buttons appeared, as
Beo 9500 CD
Beo 9500 A.AUX (without beo9500 radio)
Unfortunately, I still can’t control the Beo9500.

I want to check the correctness of the MasterLink cable, but I don’t have more ideas. I am sending photos from the settings. I tried A Slave and V master. I have active speaker, I connected them to both devices. As I wrote earlier, if the voters are connected to BLC, they turn on some commands from the application, the Beo 9500 is idle, in connection with a lack of signal the speakers turn off.

PS What do you think about the Beo Sound Core device



[Bart99]

For today, thank you very much for your posts, you have expanded my knowledge about BEO. At the moment I had to order a 7Pin cable to connect the devices. I will program the BLC according to your comments and I will let you know if it works.

[Bart99]

Currently, we do not have NL devices yet. I was thinking about buying Beosound Moment, but I’m not sure if I need something like that. If I care about BLC, when I have speakers connected to it, when I send a signal to the Line In input, the speakers turn on immediately.

Best regards

[Bart99]

Thank you guys, now I understand, I mistakenly realized that the cable I used was a 7-pin cable (I couldn’t count it), so I had a 5-pin and 8-pin cable. After purchasing the appropriate cable, I will let you know whether the configuration was successful. I would like to explain the essence of the purchase of the beo converter nl/ml, it was to be used to remotely control the beo9500 via an application on the phone. I prefer to have the speakers connected to the beo9500, the sound is then controlled by this device.

[Bart99]

Thank you.
Unfortunately, I do not understand what’s going on with the “BL Active Type 1636” connection

1) Beo Converter Nl/Ml I can connect directly with a bad RJ45 using the PowerLink 7pin adapter from Beo 9500 to the Power Link input (Beo 9500 has only I/O powerlink have 7 pin, TV, AUX are 5pin), or
2) Beo Converter NL/Ml Star with the Beo1611 Master Link, then the 7pin PowerLink cable with the BEO 9500 wire to the Power Link input (Beo 9500 has only I/O PowerLink have 7 PIN, TV, AUX are 5pin).

Or maybe anyone knows the formum what setting should have beo converter nl/ml. It is possible that this side is a problem – programming. There are several options:
And Master
AV Master
V master
And slave
Source Center

[Bart99]

Connections of the devices

[Bart99]

Thank you.
The problem, however, is that after connecting all these ingredients, nothing happens. In the application I can see, only CD and Lin In.

I can only send a signal to Line in and then I hear the sound, of course if the Speakers are connected to the Beo Converter ML/NL (V Master setting). By using the CD button in the application (I do not see others:  Radio, AUX, etc.), the Beo 9500 does not start. The application cannot be switched off by CD and Radio etc. The question is whether the error lies in the connections of individual ingredients or in the programming of Beo Converter. Or maybe programming Beo 9500, which may have to know that it is connected to Beo 1611?



Best regards Bart
