BM6500 / 7000 Powerlink – Attenuated Speaker or True Pre-Amp Out?

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • #32051
    machineage
    BRONZE Member

      Hi all!

      Can anyone tell me if the Powerlink audio outputs on the Beomaster 6500 & 7000 are attenuated speaker outputs, or are they true pre-amp outputs? Thanks!

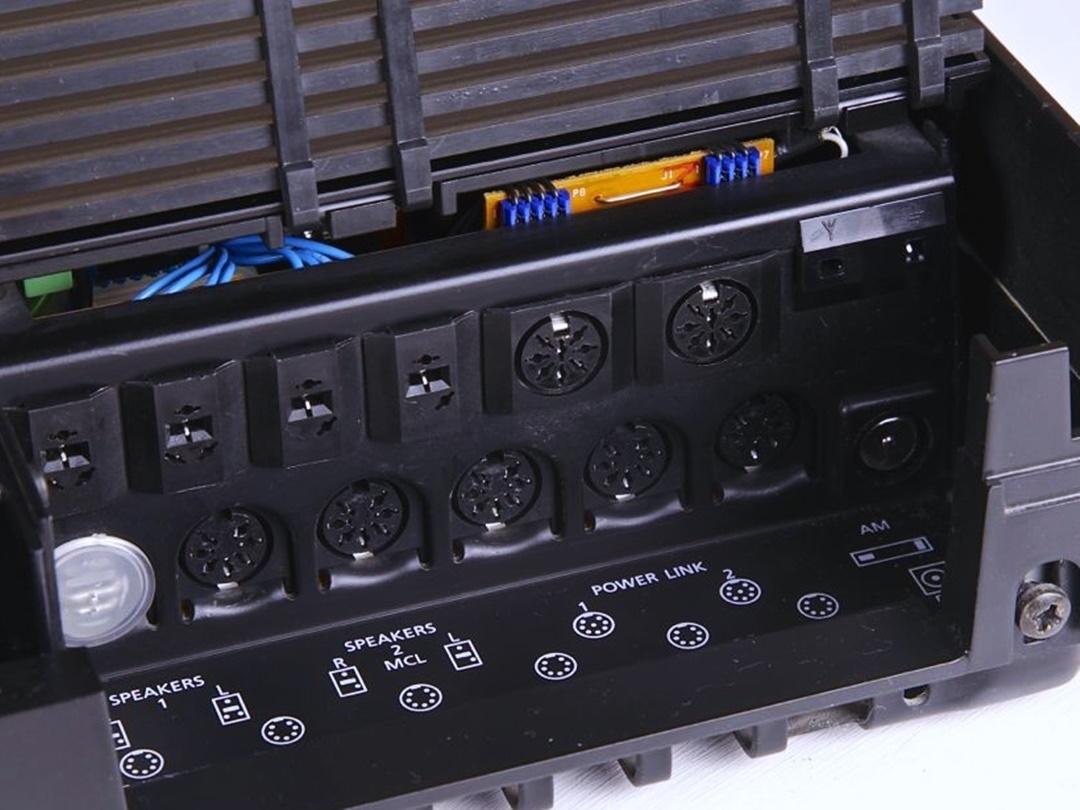

      beomaster-7000

      #32069
      Guy
      Moderator
        • Warwickshire, UK

        Hi and welcome to Beoworld!

        I had a look at the circuit diagram (available to paid members) and the Powerlink Outputs are taken from the pre-amp stage (after input select, vol/tone control and muting).  They do not go through the ‘Output Amplifier’ which supplies the speaker outputs.

        #32117
        machineage
        BRONZE Member

          Thanks!

          I just found the schematic, and yes I see now, the pre-amp outputs are fed through 100Ω resistors to pins 3 & 5 of the Powerlink sockets.

          #32141
          trackbeo
          BRONZE Member

            Novice question for the electronic experts here: Why the 100Ω resistors?  Safety load to prevent shorting?  Impedance matching, i.e. a dup of some 100Ω later in the amp circuit?  IOW, what differentiates the amp next-door in the chassis from an amp down a few meters of cable inside the speakers?  When running line-level output around the room, why would one reduce the already-low output?  For that matter, I guess the same question is why you can’t hear the plugging-in of Powerlink speakers dropping the volume level to the main out speakers.  Basic I’m sure, and I heard “output impedance low –> input impedance high” for line-level amps, but don’t *truly* grok else I might understand the resistors…  TIA.

            #32154
            Ninni
            BRONZE Member

              It’s probably to prevent external loads from affecting normal operation of the internal power amp (and speakers connected to it).

              • This reply was modified 1 week, 4 days ago by Ninni.
