[Jacques Ferre]

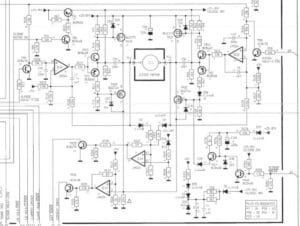

Finally, PCB18 was not findable, I decided to check every connection on the power part of the sledge.

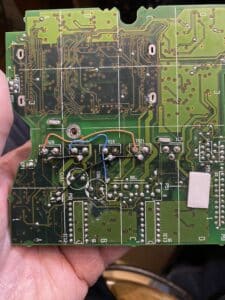

I found several broken links (this is a 4 layers PCB) and put an external link on each (See photos).



After, TM71 ==>OK, TM73 ==>OK, TM27 ==> no error !!!

That’s it 😉

[Jacques Ferre]

Hi, I had the same issue. I have ordered the belt on http://www.webspareparts.com :

Bang & Olufsen Beosound 9000 Door Mechanism Belt for Compact System

J Ferré
