  • #58805
    Peter
    FOUNDER Member

    The benefit I now have is that my high frequency hearing doesn’t really go much over 10KHz so even pretty poor speakers sound not bad! The advantages of age!

    My B&O Icons: No description available No description available No description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description available No description available
    #58818
    michaelmarcos
    BRONZE Member

    Introducing. d09a6bc2-479f-49f2-9510-f7df865bad77

    #62472
    filip_kbh
    BRONZE Member

    Since I finally got around to solve the issue with my Beomaster 7000 not turning on the amplifier section (TR19 was defective), I thought I would continue a little TLC for my Beogram CD7000. I carried out the mechanical adjustments in the service manual as I thought the drive was slightly noisy with some CDs making a whirring sound. That seems to be gone now. Next up was reconfiguring the transformer from 220V to 240V. The hardest part was to get the damn plastic protection cover off. It takes quite a bit of persuasion while pulling outwards at the front and trying to slide it back at the same time. After that I unscrewed the transformer and looked at it. After a short while, I figured out that the jumper needed to be desoldered, moved and then soldered back in the new position. Quite easy. I believe the benefits are that the unit should not heat up as much as before and perhaps also stress components less. That completed the restoration of the Beogram CD7000 that I had previously recapped and changed C2103 in.

    Location: Copenhagen
    #62974
    Madskp
    GOLD Member

    My Playmaker let out the magic dmoke one day. Turned out it was one of the filter caps in the power supply that exploded

    IMG_0832

    It smelled a lot like smoke and the smell was not gone before a week. I can still smell something inside it.

    Today I replaced both filter caps snd it looks like it is running again

    Location: Denmark
    #63049
    xschop
    BRONZE Member

    IMG_20250123_155927

    #63062
    Guy
    Moderator

    My Playmaker let out the magic dmoke one day. Turned out it was one of the filter caps in the power supply that exploded  It smelled a lot like smoke and the smell was not gone before a week. I can still smell something inside it. Today I replaced both filter caps snd it looks like it is running again

    I have a BeoCord 6000 (VHS) that did exactly that while my wife was watching a video – there was a loud shriek as smoke poured into the living room!  The smell just never went away so rather than replace the capacitor I simply took it to the recycling centre and replaced with a V8000 from my ‘store’.  It’s not like me to dispose of something repairable, and I regret it to this day.

    Whilst on the topic of the thread, I did find time to ‘refurb’ a couple of Beo4s yesterday, an AV and a SAT DVD version.  I also did a quick audit of my B&O remote spares as you can see in the photo:

    IMG_9026

    As I have said before, repairing Beo4s is not cost-effective:  If you want to end up with a perfect screen, a keyboard that hasn’t had some of the rubber picked off (who would do that???!!!) and a battery cover with all the retaining lugs present then it’s a fool’s errand.  In the past I have tried to fully restore every Beo4 that I come across but I can no longer get new DTV/DVD (non-navi) keyboards, so I may well start dismantling some for spares and swapping parts around more than I have in the past.

    After fixing Beo4s I always leave them powered up overnight, and sure enough one of the two repaired ones had a fault that doesn’t appear immediately – the keyboard defaulted to DVD and then locked up after several hours.  It’s probably a faulty contact foil, so I will replace that when I next have time.

    Have a great weekend all! 😀

    Location: Warwickshire, UK
    My B&O Icons: No description available No description available No description availableNo description availableNo description availableNo description available No description available No description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description available
    #63063
    Madskp
    GOLD Member

    I have a BeoCord 6000 (VHS) that did exactly that while my wife was watching a video – there was a loud shriek as smoke poured into the living room!  The smell just never went away so rather than replace the capacitor I simply took it to the recycling centre and replaced with a V8000 from my ‘store’.  It’s not like me to dispose of something repairable, and I regret it to this day.

    Yes very persistent smell. Judging by other threads about B&O VHS repair you could have ended up in an endless loop on repairs over time anyway had you chosen to keep it.

    In the past I have tried to fully restore every Beo4 that I come across but I can no longer get new DTV/DVD (non-navi) keyboards, so I may well start dismantling some for spares and swapping parts around more than I have in the past.

    To bad if these keyboards can not be sourced anymore. But swapping parts might also be a good strategy to make use of what is in stock.

    By the way when will you have enough BEO4’s? 😉

    Have a great weekend all! 😀

    You too 🙂

    Location: Denmark
    #63080
    Guy
    Moderator

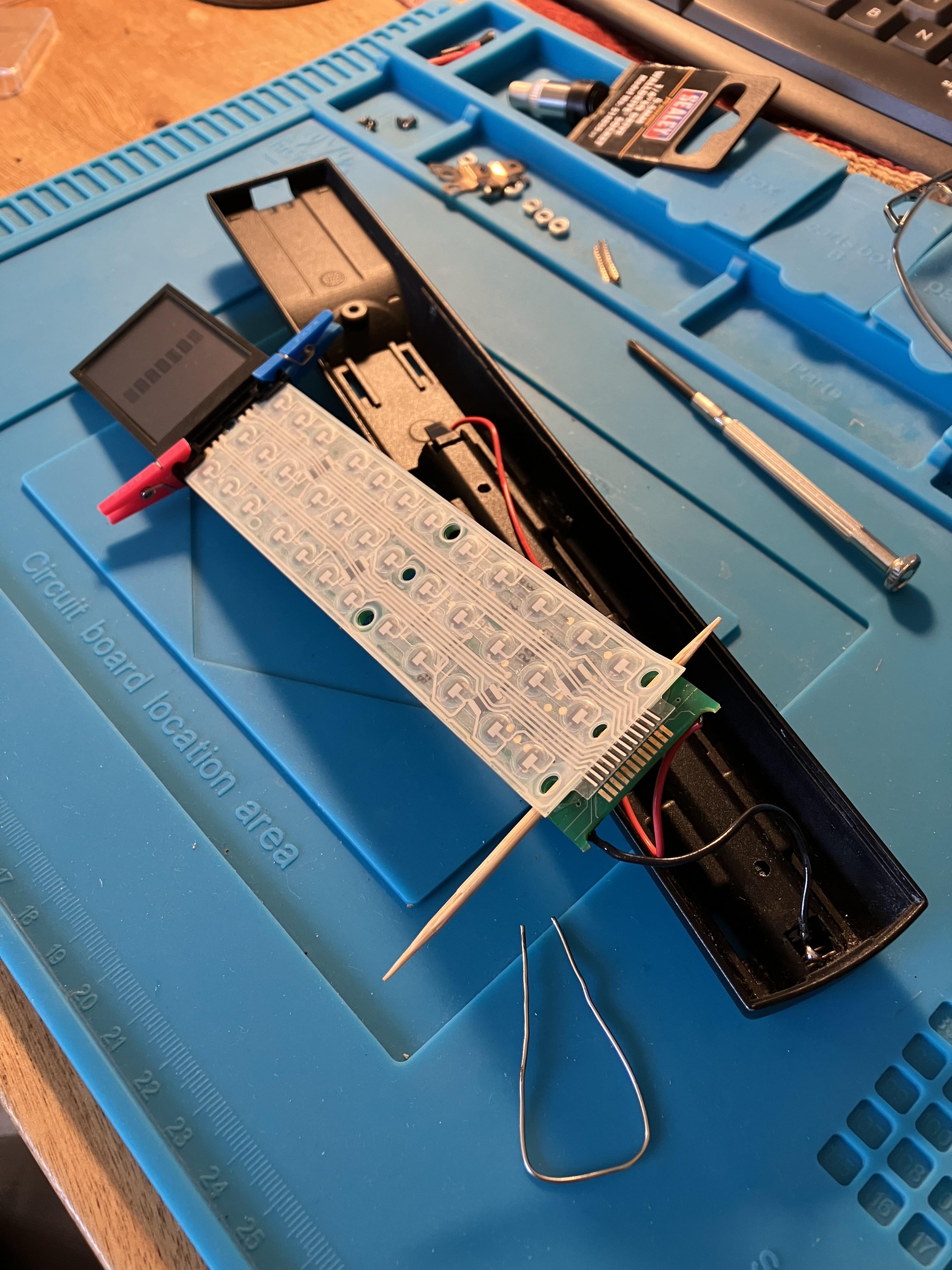

    I revisited the faulty Beo4 today.  I tried to get away with just cleaning the contact points where the foil is clipped to the PCB, but I couldn’t get it to work reliably so I ended up fitting a contact foil that had been removed from another remote.

    IMG_9028

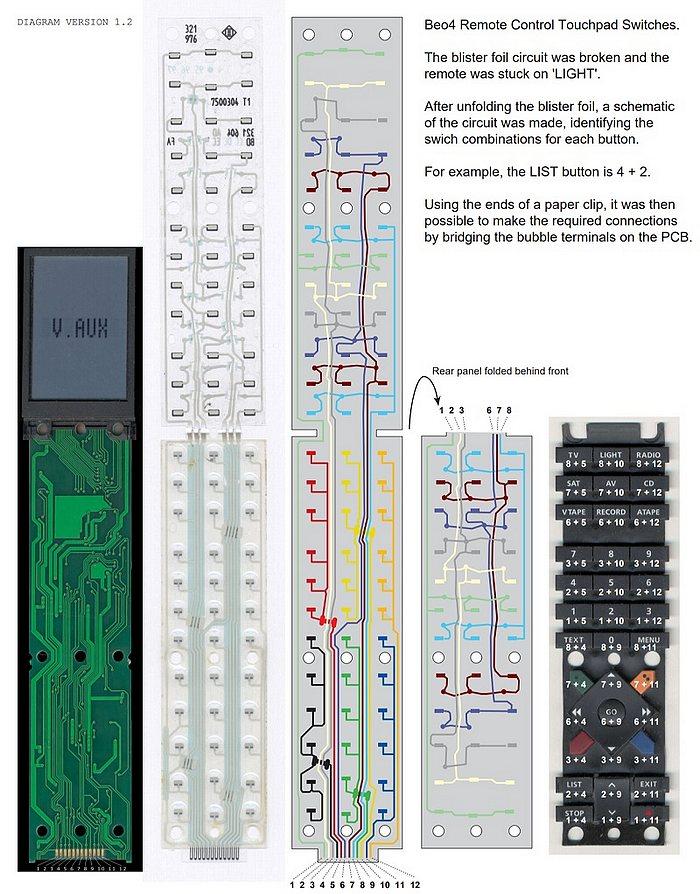

    Whilst testing I used the following useful picture/diagram to test the remote and prove that it was the contact foil at fault.  I got the diagram from one of Peter Pan’s excellent threads on the hifi4all forum here:  https://www.hifi4all.dk/forum/forum_posts.asp?TID=78664&PN=1&TPN=9

    (there are a few of my Beoworld photos in Peter’s thread so I guess that’s a fair swap of copyright, but the diagram may have originated elsewhere because Peter usually annotated his work in Danish)

    Beo4 foil Diagram - from Peter Pan's thread

    As before, I’ll be leaving the Beo4 powered up overnight to see if it still works in the morning!

    Location: Warwickshire, UK
    My B&O Icons: No description available No description available No description availableNo description availableNo description availableNo description available No description available No description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description available
    #63081
    Guy
    Moderator

    I just noticed that the new screen (on the right) is a different colour, but clearer (especially when viewed from the side). All three have the contrast set to 04.

    IMG_9033

    Location: Warwickshire, UK
    My B&O Icons: No description available No description available No description availableNo description availableNo description availableNo description available No description available No description availableNo description availableNo description availableNo description availableNo description availableNo description availableNo description available
    #63179
    Evan
    GOLD Member

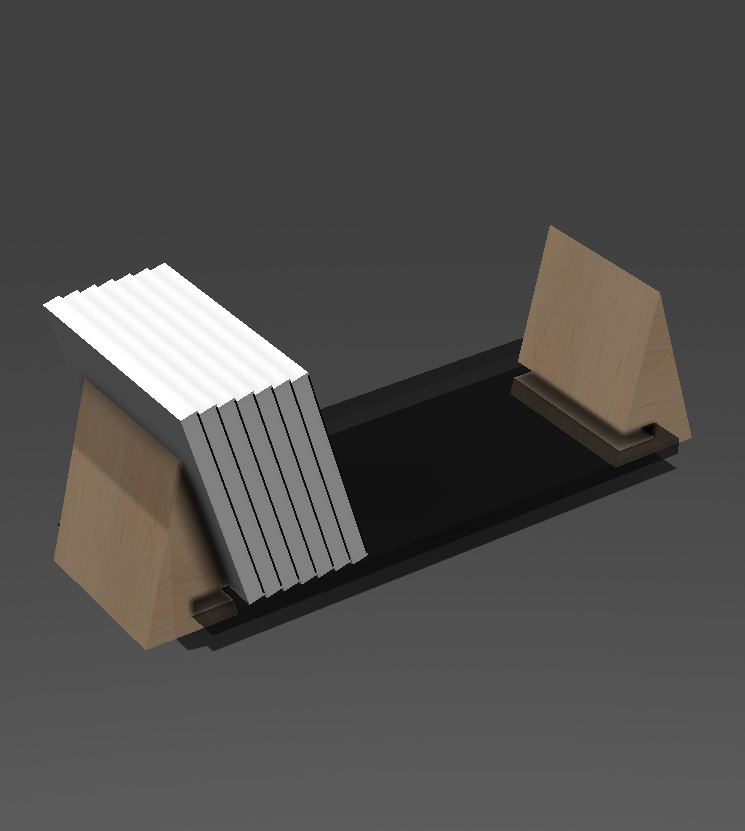

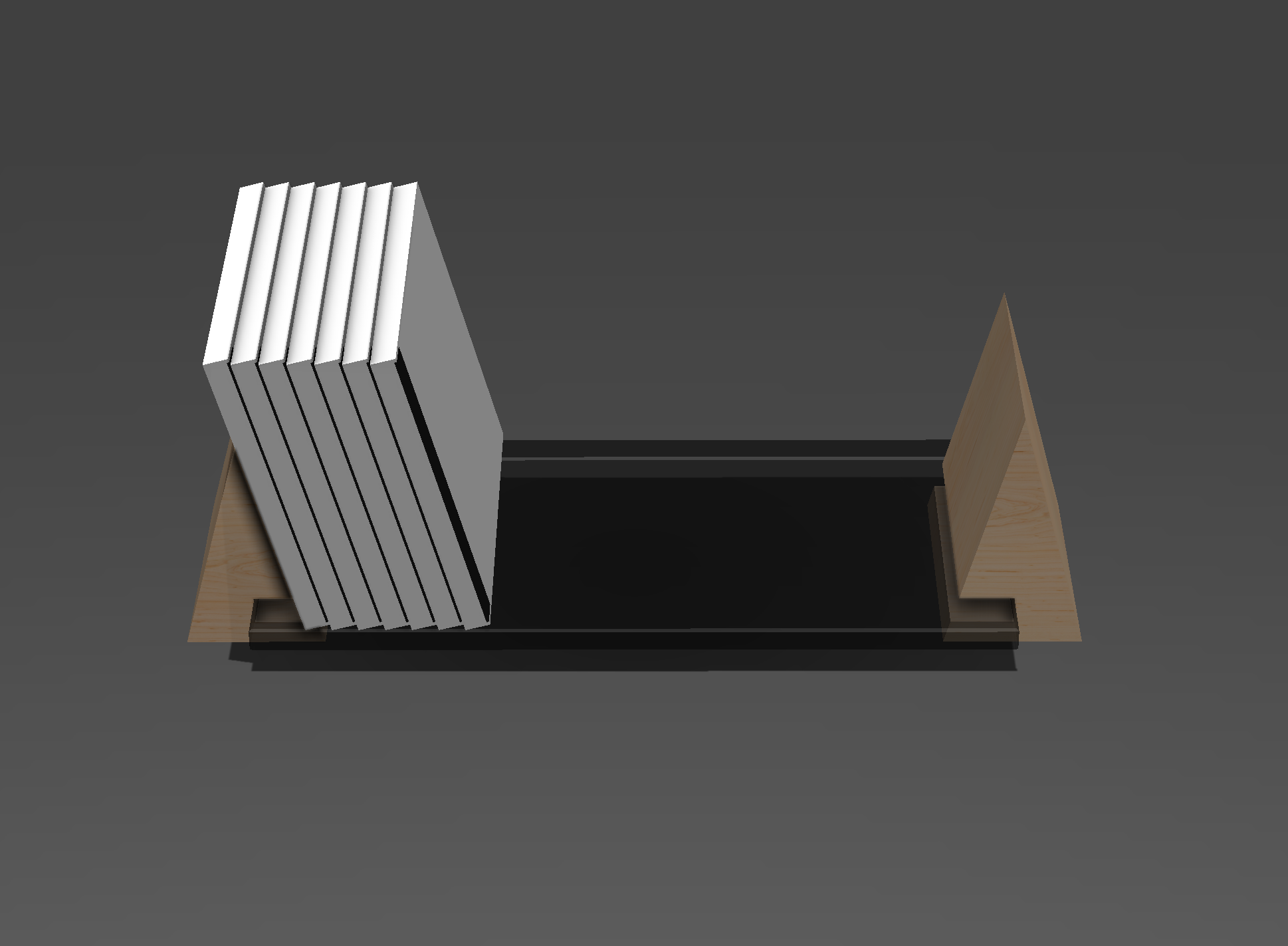

    As always, I am starting random DIY projects and this one *should* actually make it to the finish line in a few weeks. I have modeled up a clone of the A5/A6 CD rack! I am currently getting quotes made for the glass in both sizes like the originals. The end pieces will be 3D printed.

    I am a huge CD listener and have a few hundred CDs that will be put on display in my new music room here at home. I plan on building at least four or five of these eventually. I like the idea of having a few groups of CDs to organize by genre instead of organizing alphabetically like I usually do.

    B&O A5 CD rack modelScreenshot 2025-01-27 180507Screenshot 2025-01-27 180538

    Location: San Francisco
    My B&O Icons: No description availableNo description availableNo description availableNo description available
    #63398
    Dillen
    Moderator

    My Playmaker let out the magic dmoke one day. Turned out it was one of the filter caps in the power supply that exploded IMG_0832 It smelled a lot like smoke and the smell was not gone before a week. I can still smell something inside it. Today I replaced both filter caps snd it looks like it is running again

    They are suppressor caps.
    They MUST be Class X2 types – nothing else!

    Martin

    #63401
    Madskp
    GOLD Member

    They are suppressor caps. They MUST be Class X2 types – nothing else! Martin

    My bad with not knowing the function of them. Don’t worry I have used X2 classes of same type and brand as the ones that were in it already

    Location: Denmark
    #64051
    Madskp
    GOLD Member

    Recapping the crossover in my Beovox RL 45.2. I wonder if I am able to hear a difference





    • This reply was modified 1 month ago by Madskp.
    Attachments:
    You must be logged in to view attached files.
    Location: Denmark
    #64213
    Evan
    GOLD Member

    I received some quotes for glass shelving and boy was it pricey. Seems like B&O negotiated a good price with its suppliers back in the day… the tinting and beveled corners seemed to drive up the cost a lot. Largely though there was a ton of polishing involved to get the edges smooth.

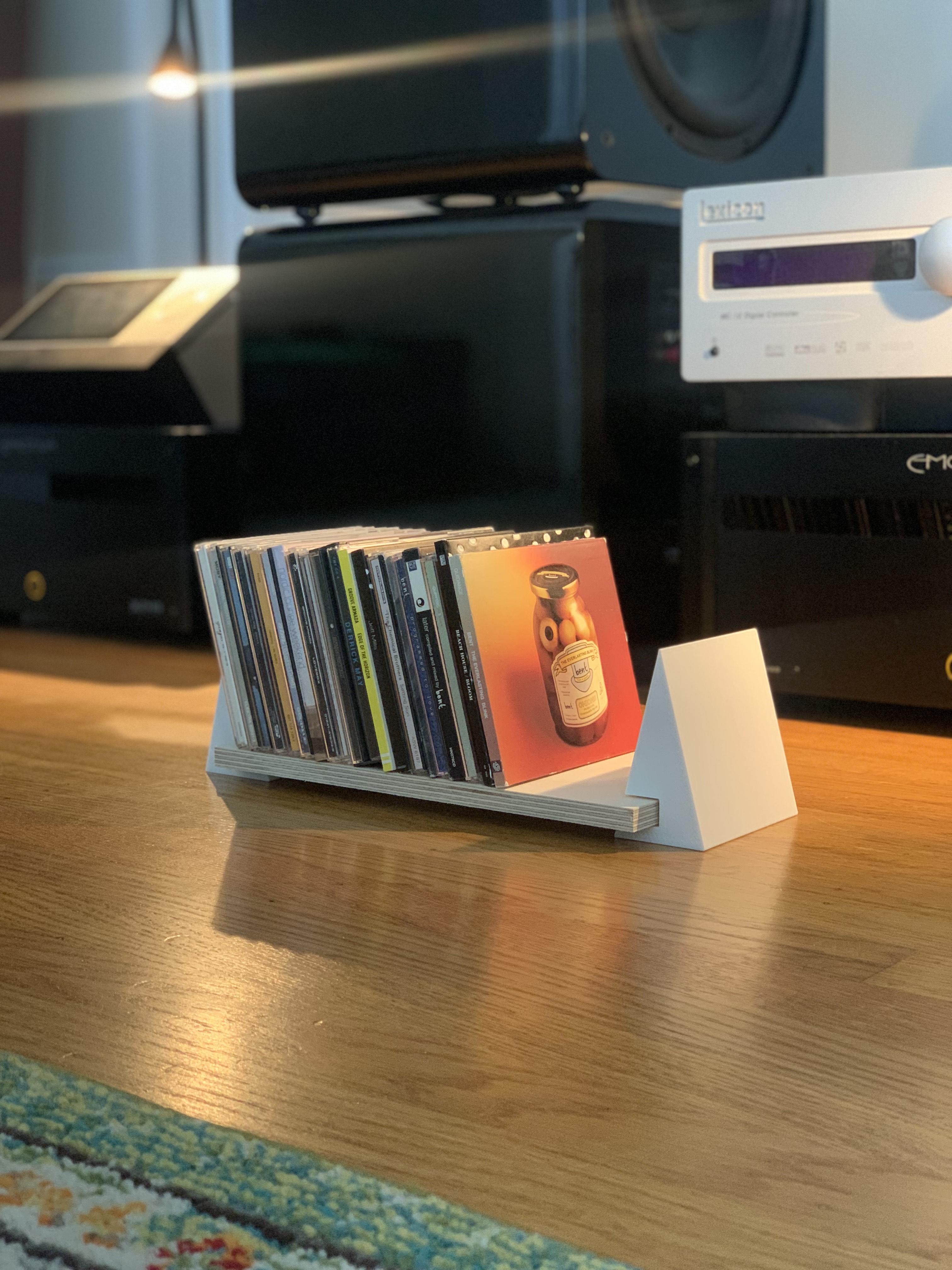

    At any rate, I decided to just move on with some scrap ply from the woodshop. this is ~12.5mm ply with some white PLA printed ends. I made 4 shelf plinths last night, two in each length. Going to make a few different colors to see what works best with the birch ply visually.

    IMG_6410

    Location: San Francisco
    My B&O Icons: No description availableNo description availableNo description availableNo description available
    #64214
    Glitch
    BRONZE Member

    Looks nice so far.

    Have you considered making the glass/plywood piece out of granite? A countertop shop might be able to do this at a reasonable price using off-cuts. Just a thought…

    Glitch



    #64295
    Evan
    GOLD Member

    Thanks, Glitch!

    I would like something a bit more substantial eventually, maybe I’ll find a piece of granite that goes with the look. A darker plinth would be nice that way I can do some different, richer colors for the printed pieces. Only thing is I need a few of them.

    Ultimately I will have several of these on top of a shelf in approximately this arrangement:

    Screenshot 2025-03-03 095358

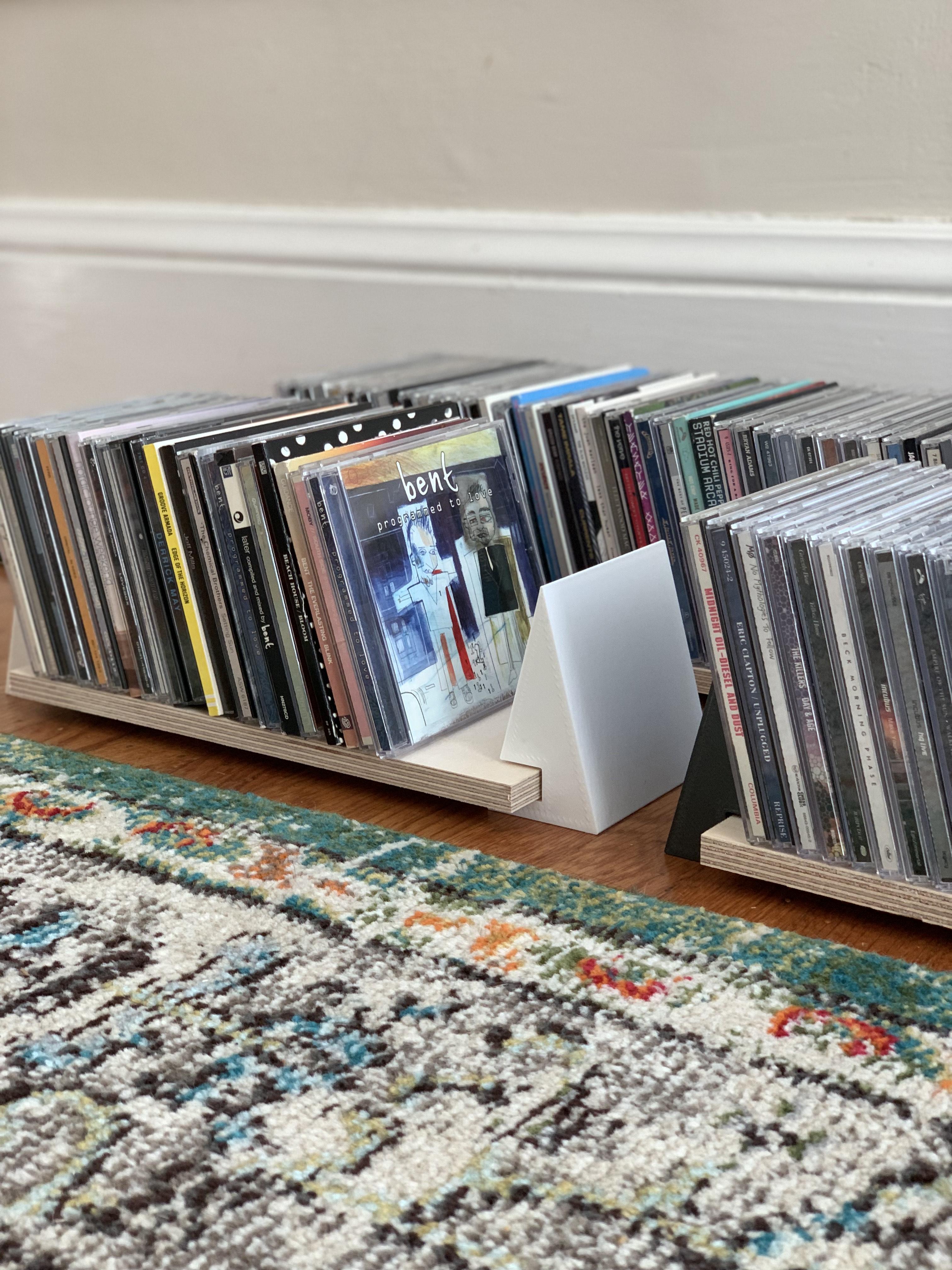

    The plywood was for sure not the original direction but it makes for a nice, warm and light-hearted version of the design.

    IMG_6435

    If anyone would like to make their own, feel free to download here: evanbunner.com/downloads or reach out to me if you are interested in getting them printed.

    Location: San Francisco
    My B&O Icons: No description availableNo description availableNo description availableNo description available
    #64316
    Ary
    BRONZE Member

    Hi All

    Been working on a whole bunch of stuff lately but as of now my trusty beomaster 6000 has been getting hotter then usual so figuring that out. Past weeks ive also recapped a CdX and what a wonderful player it is.

    IMG_2770IMG_2782IMG_2783IMG_2748

    #64380
    Madskp
    GOLD Member

    Have just been finishing up refoaming a set of C75ish speakers. A project that was started some years ago, but then other projects came in front of it.

    The reason for calling them C75ish is that my father put them together from parts he was give by colleagues on B&O and/or had lying around. That is also the reason they do not have any markings on either the front or the back. , And that is the reason why I ordered parts for CX100 crossovers at first when I recapped them, but realised that something was wrong and had to order the right one afterwards 😔 you live and you learn.

    IMG_0946

    I just realise now that the tweeter in one of them is indeed not the original one and is butchered in in an unofficial way. I may have to order a new one.

    But I may also keep them this way as they got nostalgic value. They was the speakers for the music system in our living room in my childhood home and have been beaten to the max by me and big brother when my parents was not at home 😃

    Location: Denmark
    #64450
    cklit
    Moderator
    #64772
    DriverV8
    GOLD Member

    Refreshing a Beocenter 3500. Cleaned all the turntable contacts and starting the recap process. Also if anyone knows the shim size for recentering the spindle post motor bearing replacement, please let me know. Thanks

    • This reply was modified 3 days, 15 hours ago by DriverV8.
    Attachments:
    You must be logged in to view attached files.
