Powelink RJ45 Pin Belegung

[mafanni]

Hallo,



ich habe die Suche bemüht, konnte aber nichts finden.

Hat jemand die Pin-Belegung für den RJ45 Stecker zu Powerlink?



Besten Dank, Martin

[Tignum]

Hello Martin,

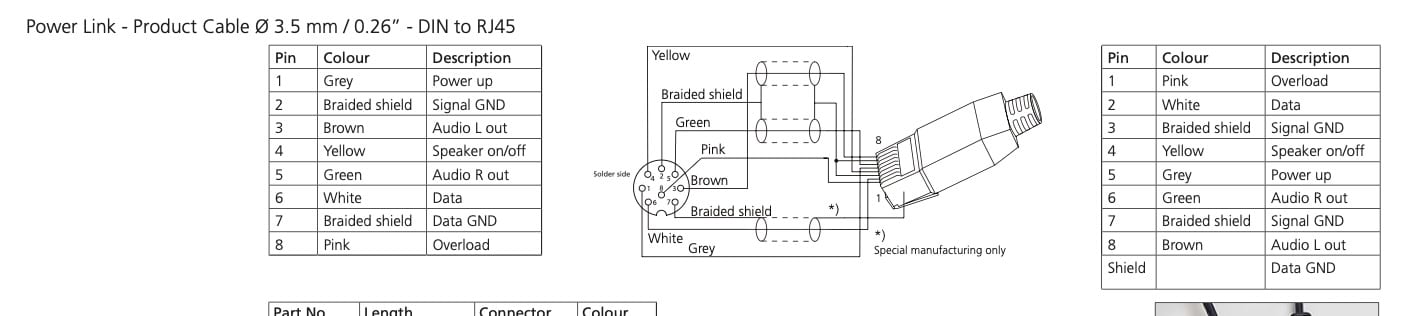

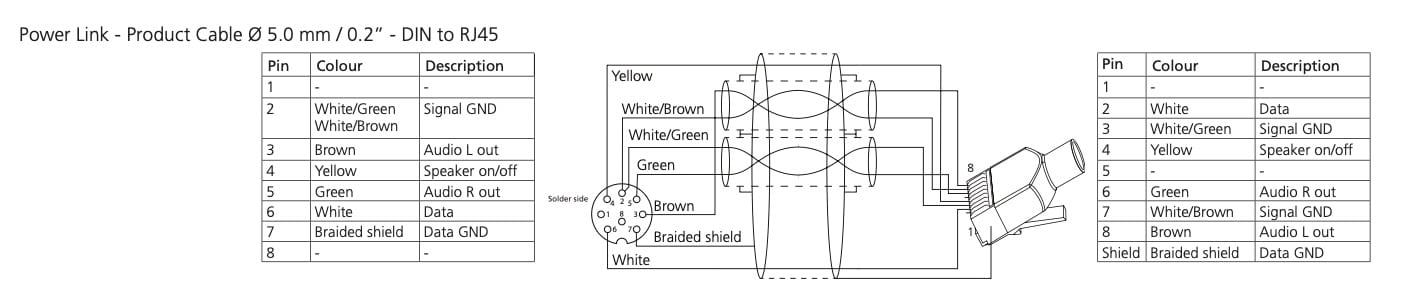

These are from the BeoLink handbook:

The color scheme depends of course on what type of cable you have.

Hope it helps.

Regards,

Johan



Location: Netherlands

My B&O Icons:

[mafanni]

Hi Johan,

thanks again for your help.



Erik
