Can you control and remote operate a Beogram 3300 with BeoMaster 3500

[rjnicko93]

I’ve got a full Beosystem 3500 that I was lucky enough to pick up brand new in box back in February. I’ve always wanted to add a Beogram 3500 turntable to complete the set, but the prices are eye-watering—around £1000 just for the TT. Considering I only paid £200 for the entire system, which still works beautifully, that’s hard to justify.

Recently I came across a local Beogram 3300 for £80, which isn’t a bad match visually or technically. I know the BM3500 doesn’t have a built-in phono pre-amp (which is easy enough to solve with an external unit), but like the other components I want it to pass datalink. At the moment I don’t think it is, because when I plug it into the TP2/phono input on the back, nothing actually happens. (Yes I know without an RIAA stage) its going to be too quiet, but I am trying to figure out the remote functionality for now

I’ve already emailed Steve at Sounds Heavenly for advice but also asking here too. I know the turntable itself is good—I tested it at the seller’s house on a Beocenter 9300 and all the remote functions worked there.

any help or advice appreciated



Ryan

• This topic was modified 2 weeks, 6 days ago by rjnicko93.
• This topic was modified 2 weeks, 6 days ago by rjnicko93.

Location: United Kingdom
Favourite Product: Beomaster 6000 Quad
My B&O Icons:

[Guy]

Non-RIAA turntables pass datalink through DIN pin 6.

RIAA equipped turntables pass datalink through DIN pin 7 (the same as other B&O line level components, like CD players).

If not fitted with RIAA (some were) your BM3500 will expect datalink on input DIN pin 7, hence you will need to modify your DIN lead (in addition to adding a pre-amp) in order to remote control the turntable.

• This reply was modified 2 weeks, 6 days ago by Guy.

Location: Warwickshire, UK
My B&O Icons:

[Madskp]

An easy solution instead of making special cables could be the RIAA from Oneremote which also passes the datalink control signals

https://shop.oneremote.dk/shop/69068-riaa-amplifier/121270-riaa-ii-preamplier/

Location: Denmark

[Guy]

^ Great solution @madskp  – I would buy that!

I wasn’t aware of that, so perhaps it’s a new product.  I assume it swaps the datalink across from pin 6 to 7.

I was aware of this older version, but I don’t think it’s available any longer:  http://www.iconic-av.co.uk/item/1321/RIAA+Pre-Amplifier+with+Datalink+for+BeoGrams/

Location: Warwickshire, UK
My B&O Icons:

[rjnicko93]

Thanks both for clearing that up, I knew there would be some weird quirk.



Steve tells me he can make a datalink Din Bypass cable so hopefully this will solve the issue and I will have remote operation. Just waiting for him to get back to me and I’ll be placing the order.



Even though not an exact match to my 3500 it looks quite nice. I made a little stand for it yesterday to tuck it under my Hifi stand.





• This reply was modified 2 weeks, 5 days ago by rjnicko93.

Attachments:

You must be logged in to view attached files.

Location: United Kingdom
Favourite Product: Beomaster 6000 Quad
My B&O Icons:

[Madskp]

Guy wrote:

I wasn’t aware of that, so perhaps it’s a new product.  I assume it swaps the datalink across from pin 6 to 7.

I belive so.

Guy wrote:

I was aware of this older version, but I don’t think it’s available any longer:  http://www.iconic-av.co.uk/item/1321/RIAA+Pre-Amplifier+with+Datalink+for+BeoGrams/

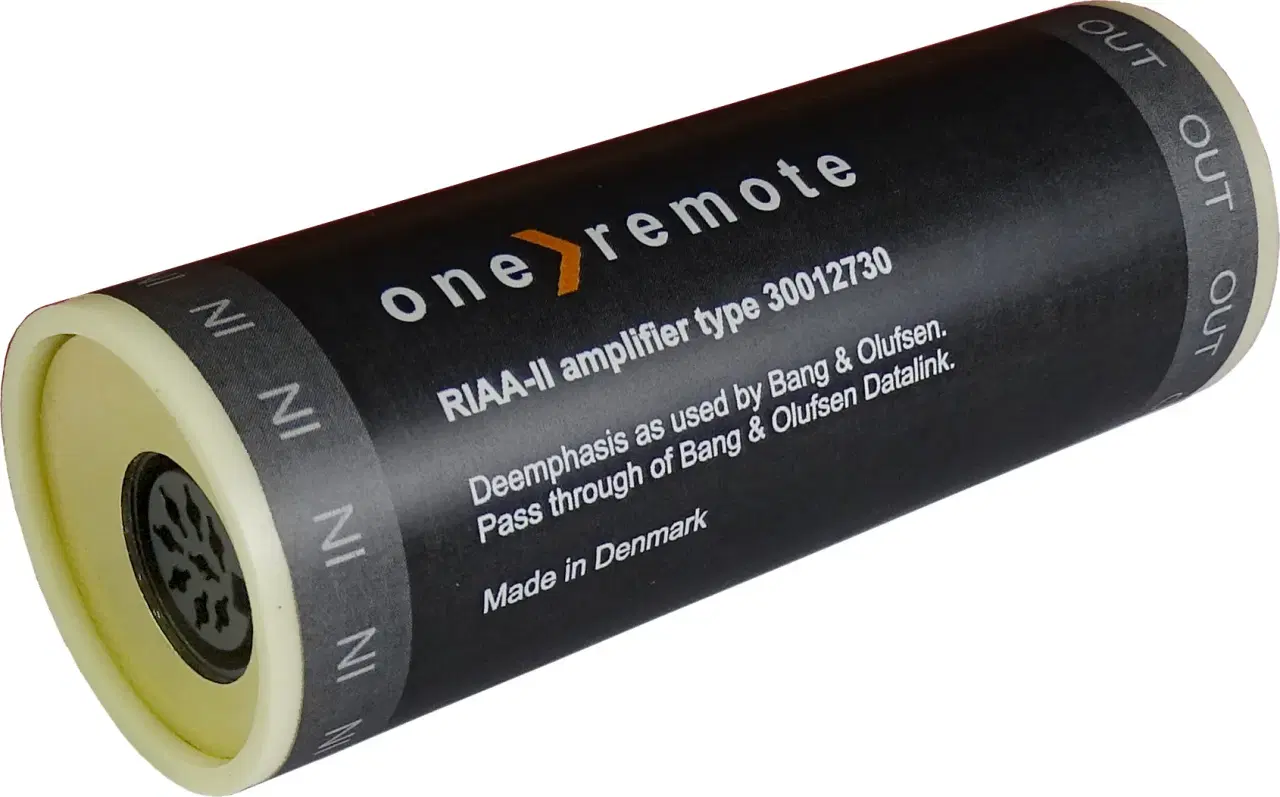

Oneremote also had an other one before which I belive did the same. I found a picture of it here https://images.guloggratis.dk/listings/1280×1280/7002ab6a-e44c-455e-846e-f066e255c35b.webp

I have managed to find a used one of the brand Flint with the same feature, but I do not think that is available as new anymore.



rjnicko93 wrote:

Steve tells me he can make a datalink Din Bypass cable so hopefully this will solve the issue and I will have remote operation. Just waiting for him to get back to me and I’ll be placing the order.

Great to hear that is also an option. I wonder how that cable will look like.



Location: Denmark

[Guy]

rjnicko93 wrote:

Even though not an exact match to my 3500 it looks quite nice. I made a little stand for it yesterday to tuck it under my Hifi stand.

Nice neat setup.  And great to see a BeoCom 2000 – is it connected?  I have one of those (in red) in a box somewhere.

Location: Warwickshire, UK
My B&O Icons:

[rjnicko93]

Guy wrote:

rjnicko93 wrote:
Even though not an exact match to my 3500 it looks quite nice. I made a little stand for it yesterday to tuck it under my Hifi stand.
Nice neat setup.  And great to see a BeoCom 2000 – is it connected?  I have one of those (in red) in a box somewhere.

Yeah my friend gave me the BeoCom most of his house was B&O when they moved in and this was still in it. Works fine VOIP plugged into my router so it’s my emergency line should my mobile ever stop working.

Location: United Kingdom
Favourite Product: Beomaster 6000 Quad
My B&O Icons:
