Beovox RL45.2 floor stand

[Madskp]

I have a set of RL45.2 speakers that I want to mount on floor stands.

Recently I was able to pick up a set of floor stands in original packing labeled RL60.

I was under the impression that they would be compatible with my RL45.2 speakers, but now that I have assebled one of the I have a hard time figuring out how to mount the speaker on the stand

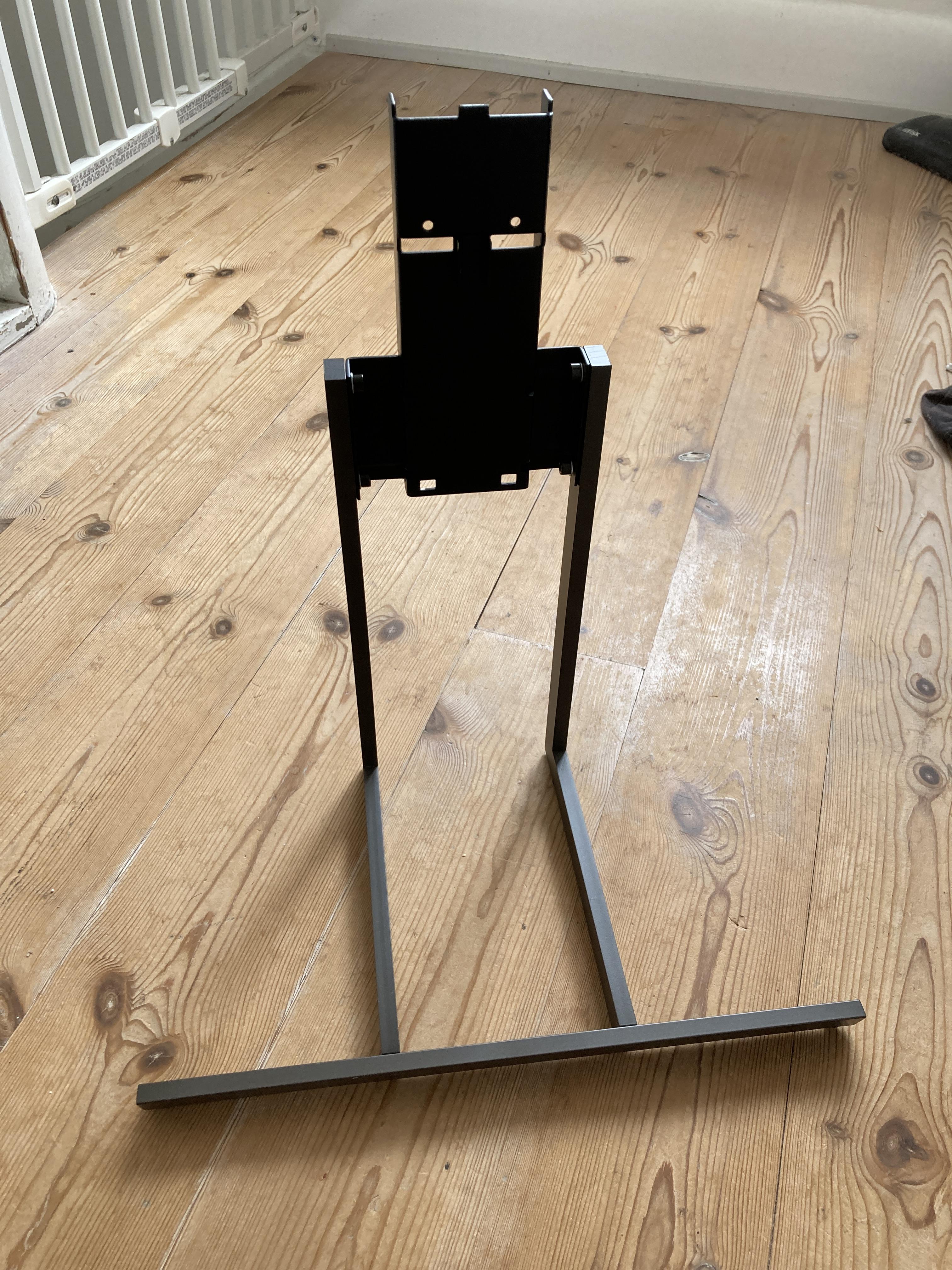

Tha stand look like this:

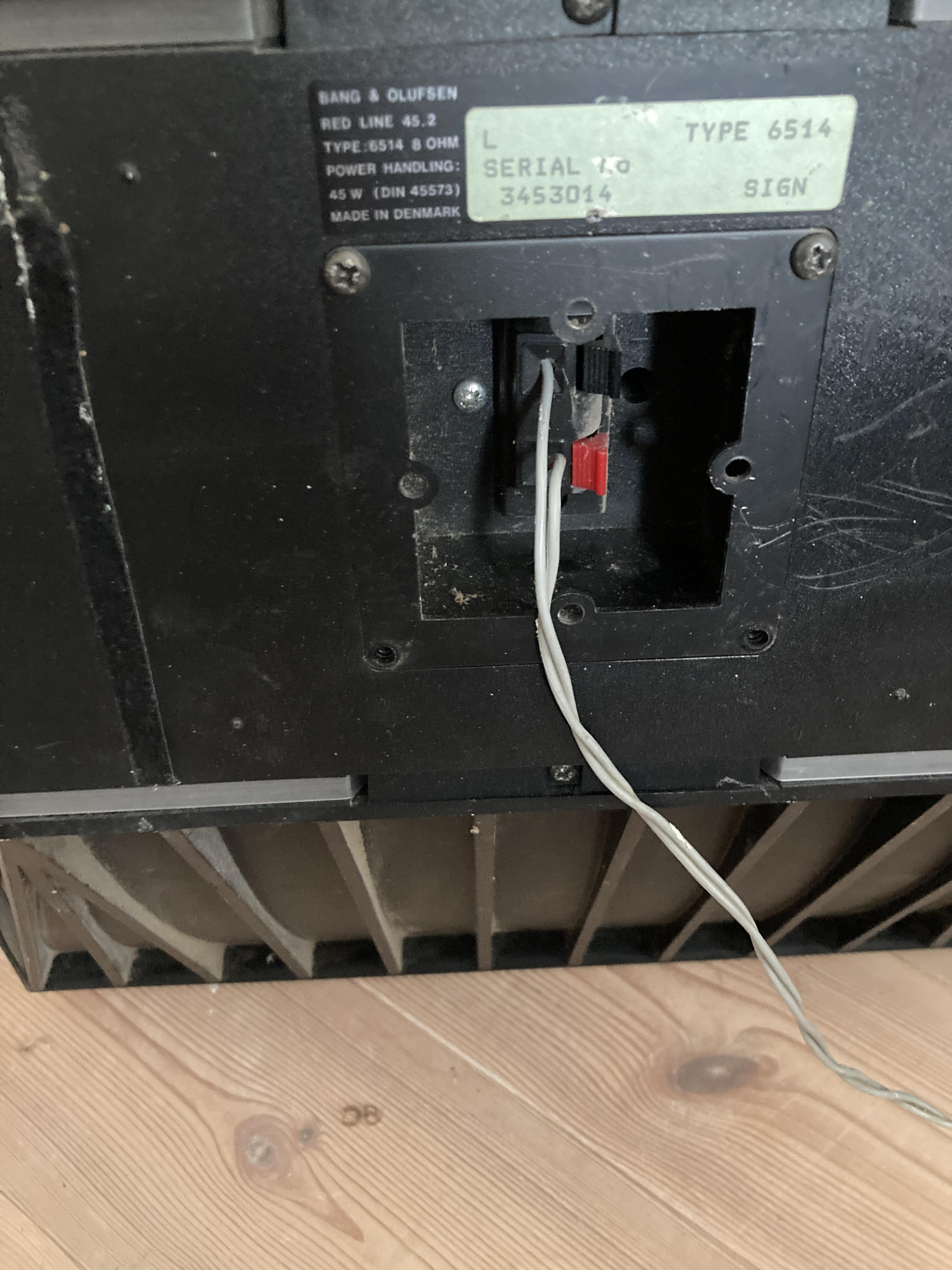

The back of the speaker like this

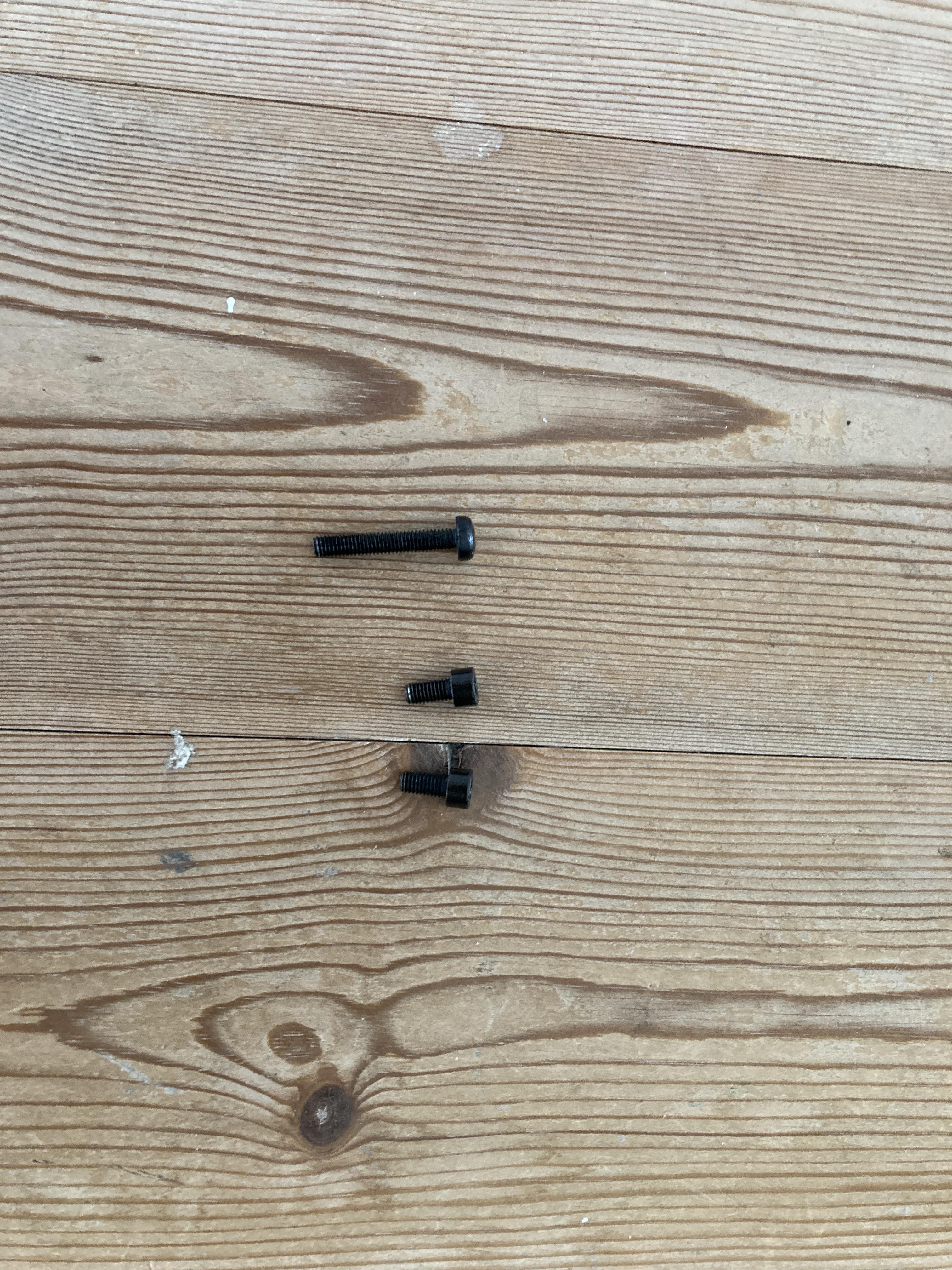

This is the parts I have left.

I know from some old thread that the long screw has to go into one of the holes in the back of the speakers and is used to adjust the angle.

I guees the two others are for mounting the speaker on the stands, I just dont see any holes that line up

Am I missing something here either parts or knowledge? Or is this compatible at all?

I have not been able to find instructions for assembly only exploded drawings of the stands in the servicemanual, but this does not show how it is going to be mounted

Thanks in advance.

Location: Denmark

[Madskp]

If I am not mistaken I might be missing a bracket like this https://www.ebay.com/itm/186461396559?_trkparms=amclksrc%3DITM%26aid%3D777008%26algo%3DPERSONAL.TOPIC%26ao%3D1%26asc%3D20230811123856%26meid%3Db10fa3817a36410aa94b3387d3b3e8ce%26pid%3D101770%26rk%3D1%26rkt%3D1%26itm%3D186461396559%26pmt%3D0%26noa%3D1%26pg%3D4375194%26algv%3DRecentlyViewedItemsV2WithMLRV6RankerPricelessTop30Features%26brand%3DBang%2B%2526%2BOlufsen&_trksid=p4375194.c101770.m146925&_trkparms=parentrq%3A664442eb1910ac1d39a6dfacfffed426%7Cpageci%3Ade06a5c7-5d7c-11ef-9318-2250449e11a6%7Ciid%3A1%7Cvlpname%3Avlp_homepage to mount the speakers on the stand.

Can anyone confirm this is correct?

Thanks in advance

Location: Denmark

[Guy]

Madskp wrote:

Can anyone confirm this is correct?

That’s correct – you can see those brackets fitted in this listing: https://www.ebay.co.uk/itm/186599725335

Location: Warwickshire, UK
My B&O Icons:

[Madskp]

Guy wrote:

Madskp wrote:

Can anyone confirm this is correct?

That’s correct – you can see those brackets fitted in this listing: https://www.ebay.co.uk/itm/186599725335

Great, thank you 🙂 Then I will just have to see if I can find them at a reasonable price

Location: Denmark

[Guy]

Unless you can make some?  Like the home-made ones in this listing: https://www.ebay.co.uk/itm/226262051072

Actually the same seller has those bits on offer (a bit pricey) as a ‘static wall mount’:  https://www.quality-dream-audio.co.uk/stands-furniture-wall-mounts-and-clocks/redline-4560-static-wall-mount.html

(The official Redline ‘static wall mount’ was actually a two part bracket, with those bits attaching to a separate piece that was screwed to the wall.)

Location: Warwickshire, UK
My B&O Icons:

[Guy]

You might already have the redline manual – I have attached it anyway.  (EDIT:  Not sure why the quality is so poor when uploaded, I downloaded it from AVA Services here:  https://www.avaservices.co.uk/downloads/speakers.html)

Page 4 picture 6A does show the piece you are missing, and it is actually described as a standard wall bracket.  The notes do refer to an extra piece that is used for light walls, so that must be the extra piece that I have used in the past.

So the piece that you are missing may well be described as a ‘Redline wall bracket’ in any sale listings!

Attachments:

You must be logged in to view attached files.

Location: Warwickshire, UK
My B&O Icons:

[Madskp]

Guy wrote:

Unless you can make some?  Like the home-made ones in this listing: https://www.ebay.co.uk/itm/226262051072 Actually the same seller has those bits on offer (a bit pricey) as a ‘static wall mount’:  https://www.quality-dream-audio.co.uk/stands-furniture-wall-mounts-and-clocks/redline-4560-static-wall-mount.html (The official Redline ‘static wall mount’ was actually a two part bracket, with those bits attaching to a separate piece that was screwed to the wall.)

Yes DIY may be a possible solution. I actually have some furniture bracket that it might be possible to modify.

Guy wrote:

So the piece that you are missing may well be described as a ‘Redline wall bracket’ in any sale listings!

Great to have the right search term. Just hoping that the sellers use the same term 😉



Location: Denmark
