Beocenter 9300 after replacing CD doors it behaves crazy

[radzio222]

Hi,

I had to replace doors at my Beocenter 9300. It was aaaa lot of work, but finally I made it !

Unfortunately not all went right. Doors are working opposite. What it means? When I start CD it opens a door and… try to start disc on open drive !!!

When I turn CD off it opens doors instead close them…



What I did wrong ? Doors for a Deck that I didn’t touch (only changed the belt) works properly.



Please help as I cannot find any good service documentation to my model (9300 from 1996).



Regards,

Radzio222

[Guy]

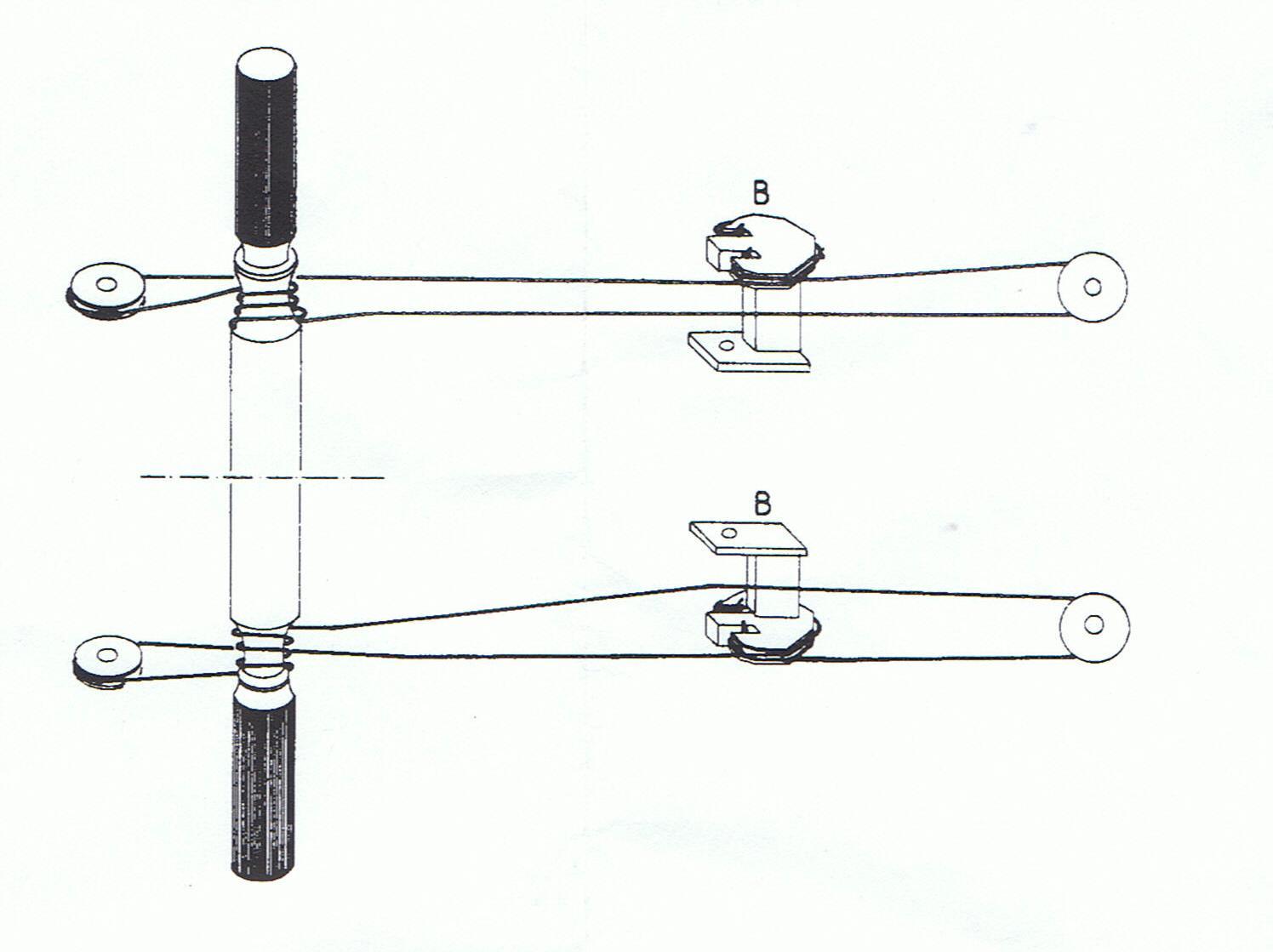

I can give you just the cord diagram – as viewed from under (inside) the BeoCenter:

The full manual is on the site available to gold and silver members – see here: https://beoworld.org/what.asp

Location: Warwickshire, UK
My B&O Icons:

[Guy]

It sounds like you have the cords wrapped around the drive shaft in the wrong direction.  They initially go over the top, then under.  There are some pictures in this thread:

https://forum.beoworld.org/forums/topic/my-beocenter-9500-restoration/

Do you have the service manual?  The door cord arrangement picture there should be followed carefully, and note that diagram shows the view from under the drive shafts.

EDIT:   And the door cord mechanism is the same for all 9000 series BeoCenters – 9000, 9300, 9500.

Location: Warwickshire, UK
My B&O Icons:

[radzio222]

Hi,
No I couldn’t find any. If you could share with me, It would be great.

That was my suspicion that I made it opposite. So another a lot of work with my Beo 🙁

[Dillen]

If the motor leads were desoldered, they could also be reversed.

Martin

[radzio222]

Guy, thanks for hour help. This picture helped me a lot! Door are now fixed. Thank you very much!

[Guy]

radzio222 wrote:

Guy, thanks for hour help. This picture helped me a lot! Door are now fixed. Thank you very much!

No problem – glad to help! And welcome to the BeoCenter 9000 series door re-stringers club – it’s a tricky task!!
