      I recently got a Beocenter 9000, Beovox CX100 and Beolink 1000.

      Beolink seems to work fine, just needs a clean

      CX100 need refoaming as they are totally perished

      Beocenter 9000 operates, but has a few problems

      • Damaged spring for the CD spindle
        • Anyone know how I could repair this?
      • Missing feet
        • Anyone know of a replacement?
      • CD door does not open
        • Motor runs
        • Door does not open more than half way using the manual screwdriver method

      Whilst I have it apart, should I replace any components or capacitors?

      I have a Beomaster 2300 which I replaced the caps which improved it a lot.

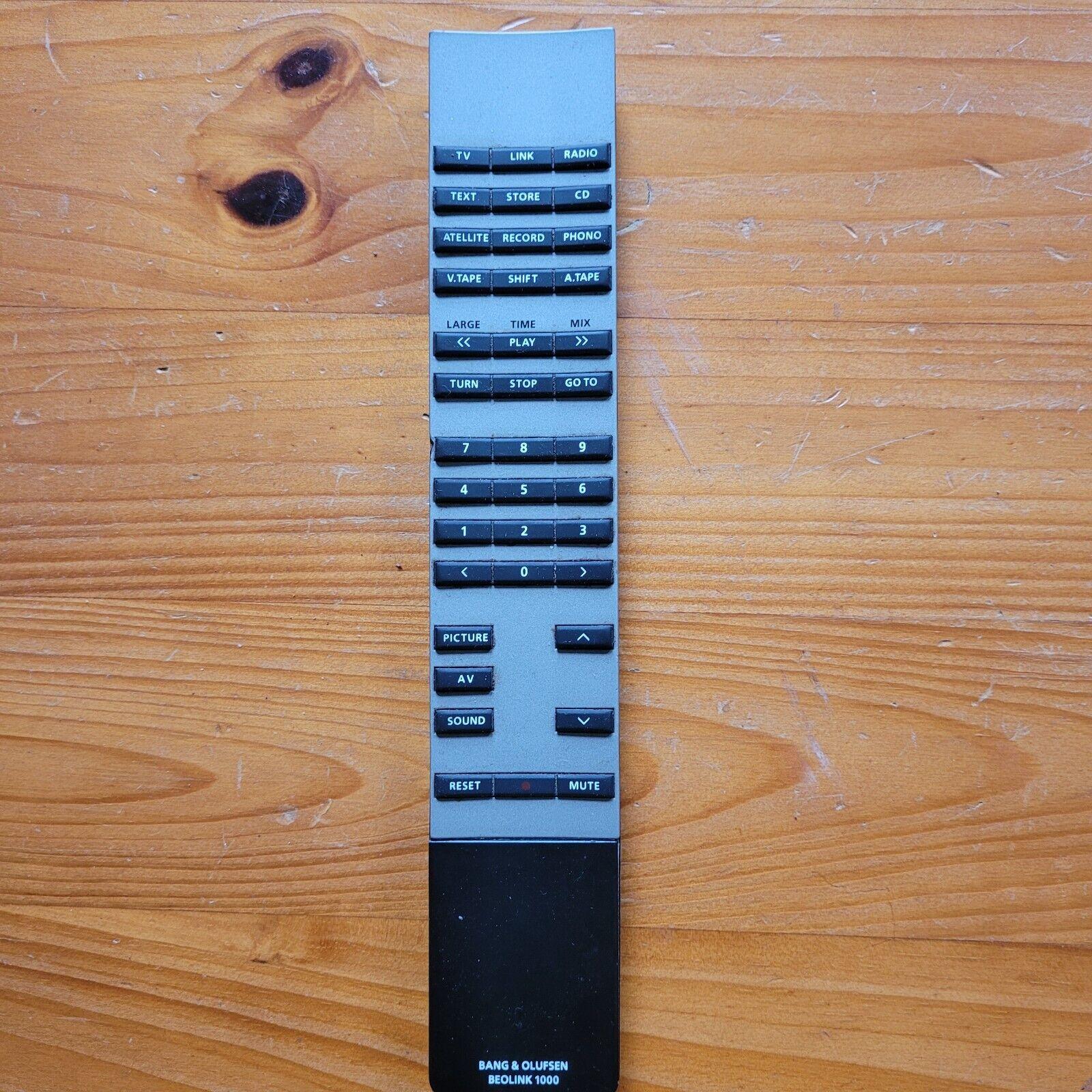

      Here are the photos from the listings-l1600

      s-l1600-3

      s-l1600-2

      s-l1600-1

      #48343
      paul_f
      BRONZE Member
        • Topics Started 1
        • Total Posts 7

        Here are the speakersPXL_20230820_100456657



        #48344
        Guy
        Moderator
          • Warwickshire, UK
          • Topics Started 15
          • Total Posts 1,281

          Maybe have a look at this thread for some help with the doors – the BC9000 has the same system as the BC9500:

          https://beoworld.org/forums/topic/my-beocenter-9500-restoration/

          Whilst you have it apart I would replace the door motor drive belts, the backup battery and probably the tape deck belt(s).

          EDIT:  CD spindle was discussed here: https://beoworld.org/forums/topic/cd-spindle-for-beocenter-9000/

          #48345
          paul_f
          BRONZE Member
            • Topics Started 1
            • Total Posts 7

            I opened the unit and spotted a CD spindle spring trapped beneath the CD player.



            I carefully removed the drive and the spring was intact along with the cap.  So I have a spare cap as well now 🙂PXL_20230822_202621390

            #48346
            Guy
            Moderator
              • Warwickshire, UK
              • Topics Started 15
              • Total Posts 1,281

              Hi Paul – well done with the spring!

              Was my earlier post of any value?

              #48347
              paul_f
              BRONZE Member
                • Topics Started 1
                • Total Posts 7

                Hi Guy,

                Yes it was,thank you.  I think my problem with the CD door is that the cord seems to have been lubed in the past which is causing it to wrap over Itself.



                I upgraded my account to silver, but I can’t find where the service manuals are on the site.  Any chance you could point me towards them please?

                #48348
                Guy
                Moderator
                  • Warwickshire, UK
                  • Topics Started 15
                  • Total Posts 1,281

                  Yes it was,thank you.  I think my problem with the CD door is that the cord seems to have been lubed in the past which is causing it to wrap over Itself.

                  Yes that was the problem with mine. I did try to clean the cord but in the end I had to replace it with a new ‘dry’ one.

                  I upgraded my account to silver, but I can’t find where the service manuals are on the site.  Any chance you could point me towards them please?

                  Two places:

                  Via Main Beoworld Site ‘Products’ page (older, but currently more extensive library):  https://beoworld.org/manuals.asp

                  And to the right of the current forum (yet to be fully populated):  https://beoworld.org/beoworld-document-library/

                  #48349
                  paul_f
                  BRONZE Member
                    • Topics Started 1
                    • Total Posts 7

                    Got the manual, thanks.  Where did you get your cord from?

                    #48350
                    Guy
                    Moderator
                      • Warwickshire, UK
                      • Topics Started 15
                      • Total Posts 1,281

                      Where did you get your cord from?

                      Luckily I had a door string repair kit that I purchased by chance many years ago – I show a picture of it (including the part number) in this post:  https://beoworld.org/forums/topic/my-beocenter-9500-restoration/page/2/#post-19613

                      I doubt that you will find a repair kit now, but you could give AVA Services a call to see if they can help.  Otherwise you may have to experiment with new cord – the main requirement will be to cut and tie knots at the exact length of the old cord in order to keep the same tension with the cord routing shown in the manual.

                      #48351
                      paul_f
                      BRONZE Member
                        • Topics Started 1
                        • Total Posts 7

                        I cleaned the string with some waterbased degreaser in an ultrasonic bath, and it now works well.

                        I replaced the lithium battery, but I now need to replace the capacitor on the CD as it has some strange behaviour
