Aux in Beosound 3200

[Antumusic]

I connected the Beosound 3200 to my Motorola phone, from the auxiliary 7 pin, in order to listen to music from Tidal. But you hardly hear any music and with the highest volume. Any advice

[Guy]

Hi and welcome to Beoworld!

Check that the lead is sending the L & R audio to DIN pins 3 and 5 respectively.  Pin 2 is ground.

Viewing the socket:



Location: Warwickshire, UK
My B&O Icons:

[Antumusic]

How do I do that?

The only thing I can do is connect the cable to the Beosund, when I approach it I hear some interference. The cable is new, How do I do that? The only thing I can do is connect the cable to the Beosund, when I approach it I hear some interference. The cable is new, I bought it on Amazon, it’s probably defective. I clarify that my Beosound is almost new, it has very little use, but I took it out of the trunk last week I bought it on Amazon, it’s probably defective. I clarify that my Beosound is almost new, it has very little use, but I took it out of the trunk last week.

Thanks.

[Guy]

Antumusic wrote:

How do I do that?

Use a multimeter or continuity tester to check for continuity between the tip and ring of the 3.5mm plug and pins 3 and 5 of the DIN plug.

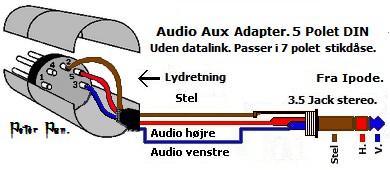

This may help:

Location: Warwickshire, UK
My B&O Icons:

[marc spudsy]

you can buy a small lead that has the din one end and the other end has 4x rca plugs mormally red,white,black,yellow https://www.ebay.co.uk/itm/320553096519 or https://soundsheavenly.com/bang-olufsen/154-5-pin-din-to-4-x-rca-input-and-output-cable-for-bo-naim-quad.html this will give you audio in and out, and it will also mean its wired correctly.

[Antumusic]

I did two tests. I first checked the continuity of the wire with a multimeter and its there is continuity.

The second test I did was to insert a needle into the auxiliary holes at points 3 and 5 (right and left speakers) and noise is heard. But when I connect the wire, points 3 and 5 on the wire don’t make contact with the points I touched with the needle.
My conclusion is that the cable has the speaker points backwards, that is, point three at point 1 and point 5 at point 4.

Could be?

Next Saturday I will go to Bang and Olufsen Mexico to have it checked by a technician.

[mexking]

I am in CDMX, have a working Beosound 3000 and cables that work, if B&O Mexico cant help you I can, living at “salida a Cuernavaca”

Location: Mexico city

[Guy]

Antumusic wrote:

My conclusion is that the cable has the speaker points backwards, that is, point three at point 1 and point 5 at point 4.

That sounds to me as if your cable is an output (from the DIN socket) rather than an input. (Pins 1 and 4 are the line output from the BS3200 Aux socket.) Hopefully a new cable and/or help from mexking will resolve the problem.
