[gpv]

I turned the wheel with the strap under the mechanics by hand and positioned the cassette.
When I turn it on it ejects the cassette.
I also noticed that as soon as it is turned on it does the test, the engine tries to turn the wheel described above for a few seconds but the belt slips and goes into protection

Yes, I’ve already read Die Bogener’s thread, but it doesn’t describe my problem

[gpv]

It disassembled open and cleaned. The problem is that when I try to insert the cassette the microswitch should start the motor but it doesn’t do anything. I checked the microswitch and it works

[gpv]

changed capacitors but the problem remains.
I inserted the cassette manually then I powered the motor and the tape was loaded so the mechanism works.
the problem is that there is no consent to start when I insert the cassette but I don’t understand why.
What house is it that starts it all?

[gpv]

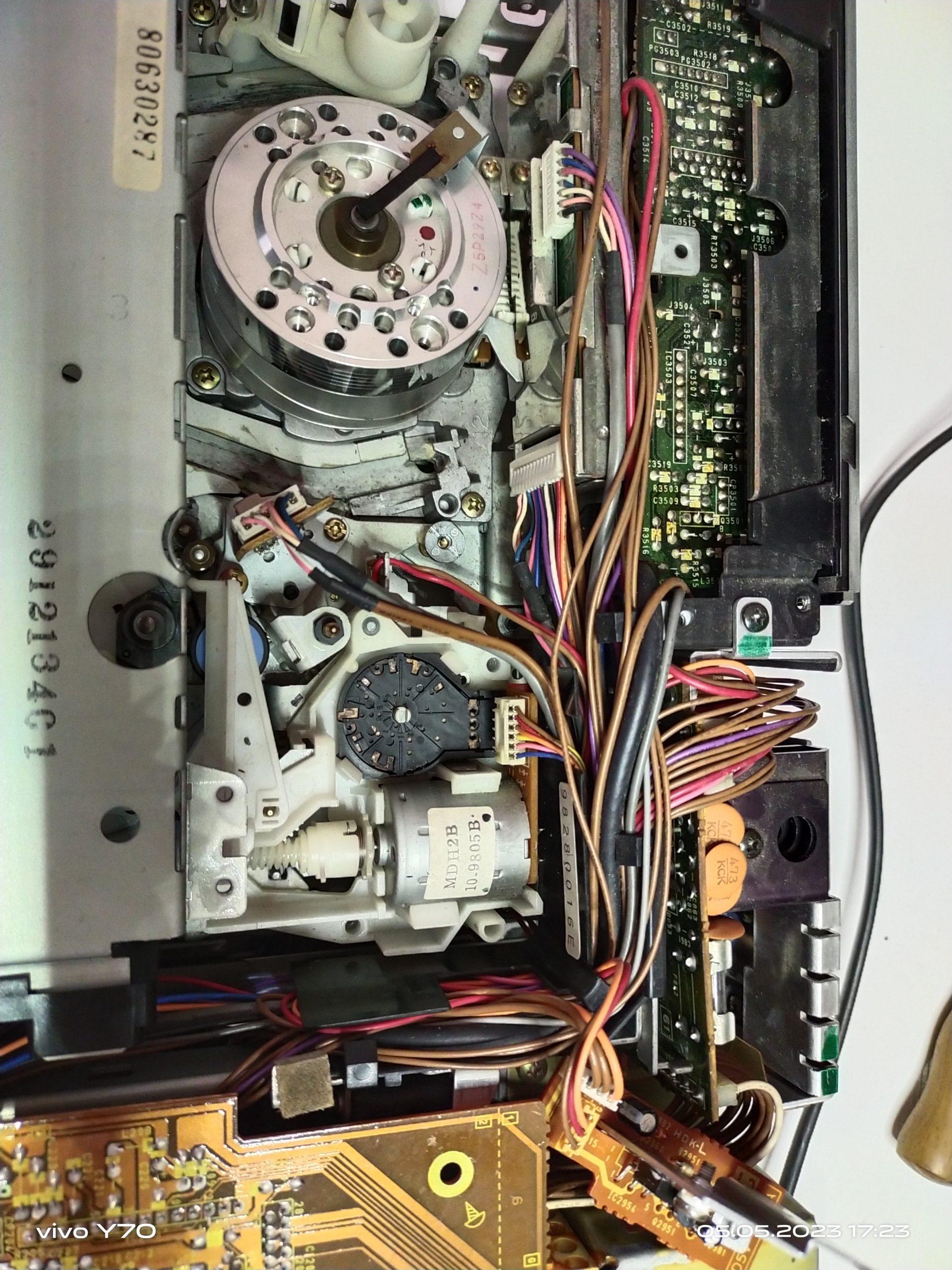

Cassette loading mechanism is ok
the cassette is not loaded, even pushing it does not activate anything, if I load it by hand by turning under the mechanism it is inserted.
I try to change the capacitors as you say.
I will let you know.
Thank you

[gpv]

Replaced battery but problem remains

[gpv]

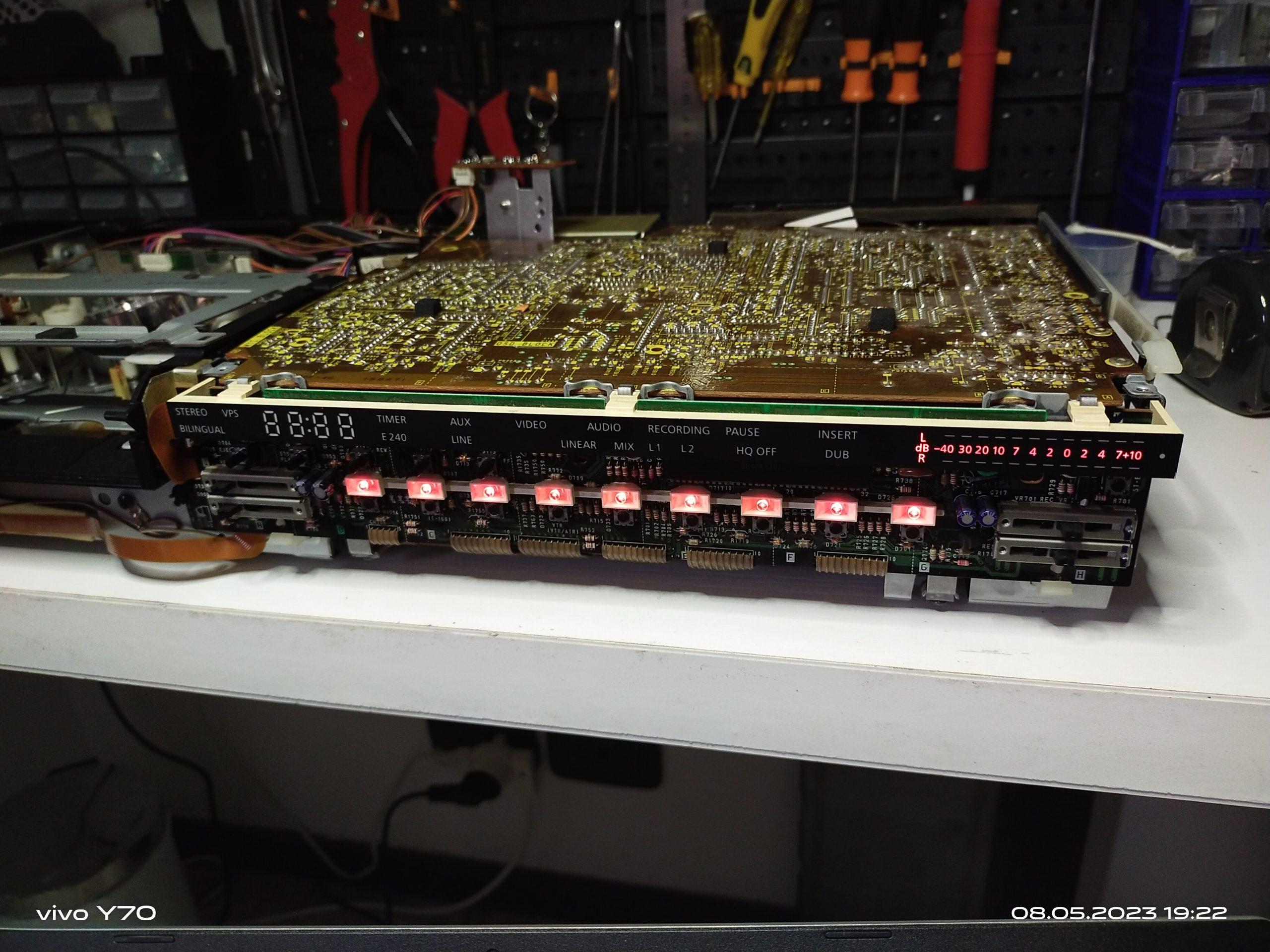

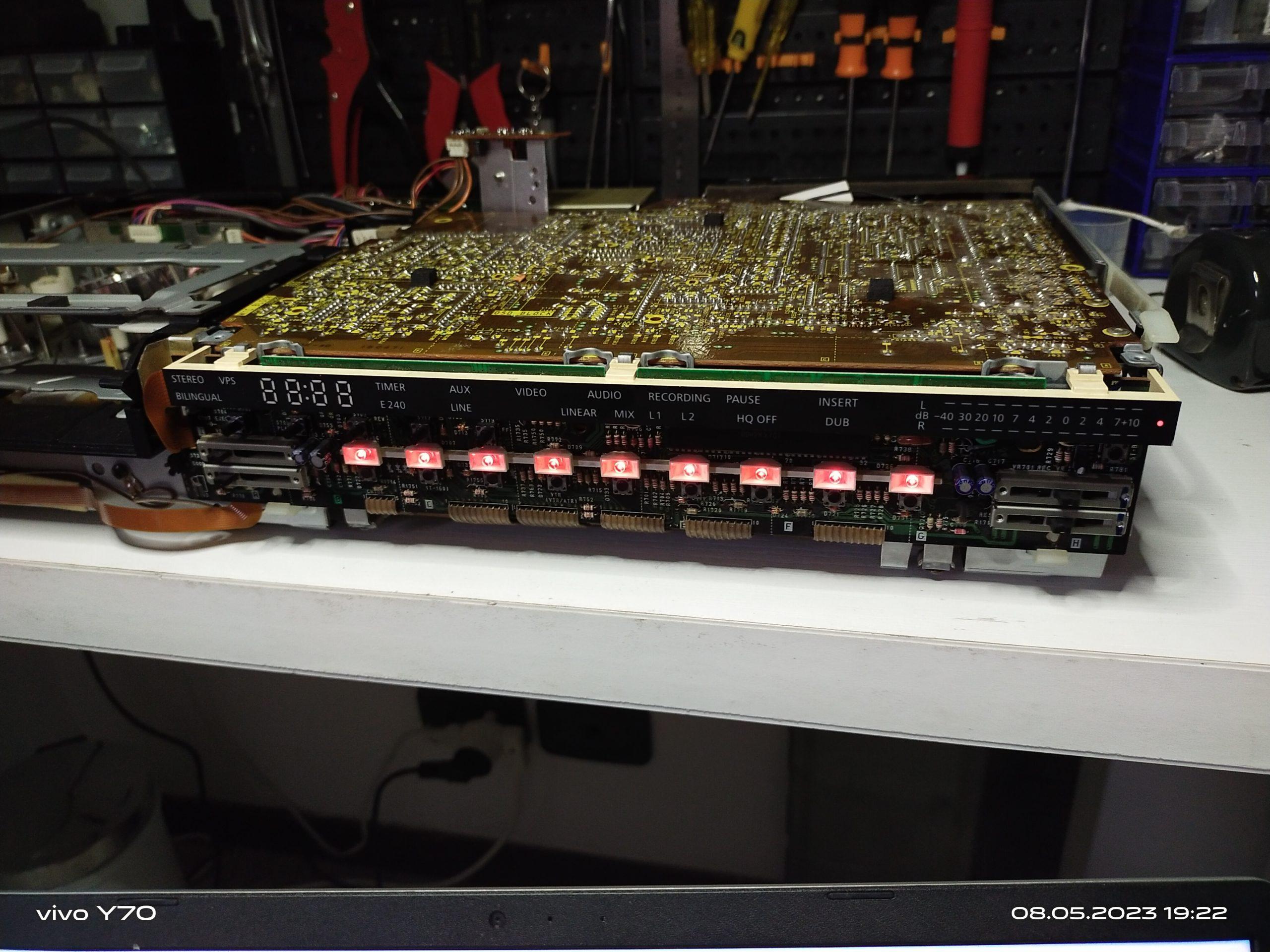

ok anyway I took the battery apart and checked it was charged. Yes, no leaks, capacitors look like new. Practically when I turn it on you feel it straining under the belt, for a few seconds you see the stereo LED bar then it turns off. The head cylinder does not turn when doing the test

[gpv]

Thanks for the answer, I checked the capacitors but none are leaking, however I will change them.
The problem is this: it doesn’t load the cassette and nothing starts, if I insert it by hand turning under the mechanism and then turn on the vx5000 it ejects it.
I replaced the capacitors on the power supply board. I wanted to know which ones need to be replaced to see if the motor that spins the head works
