Re-installing dustcap for Beogram RX2

[Henki]

Hi,

I had some problems with the adjustment of the turntable, so I took the dustcover off…

Now I am having problems putting it back on. Wished I had not taken it off…

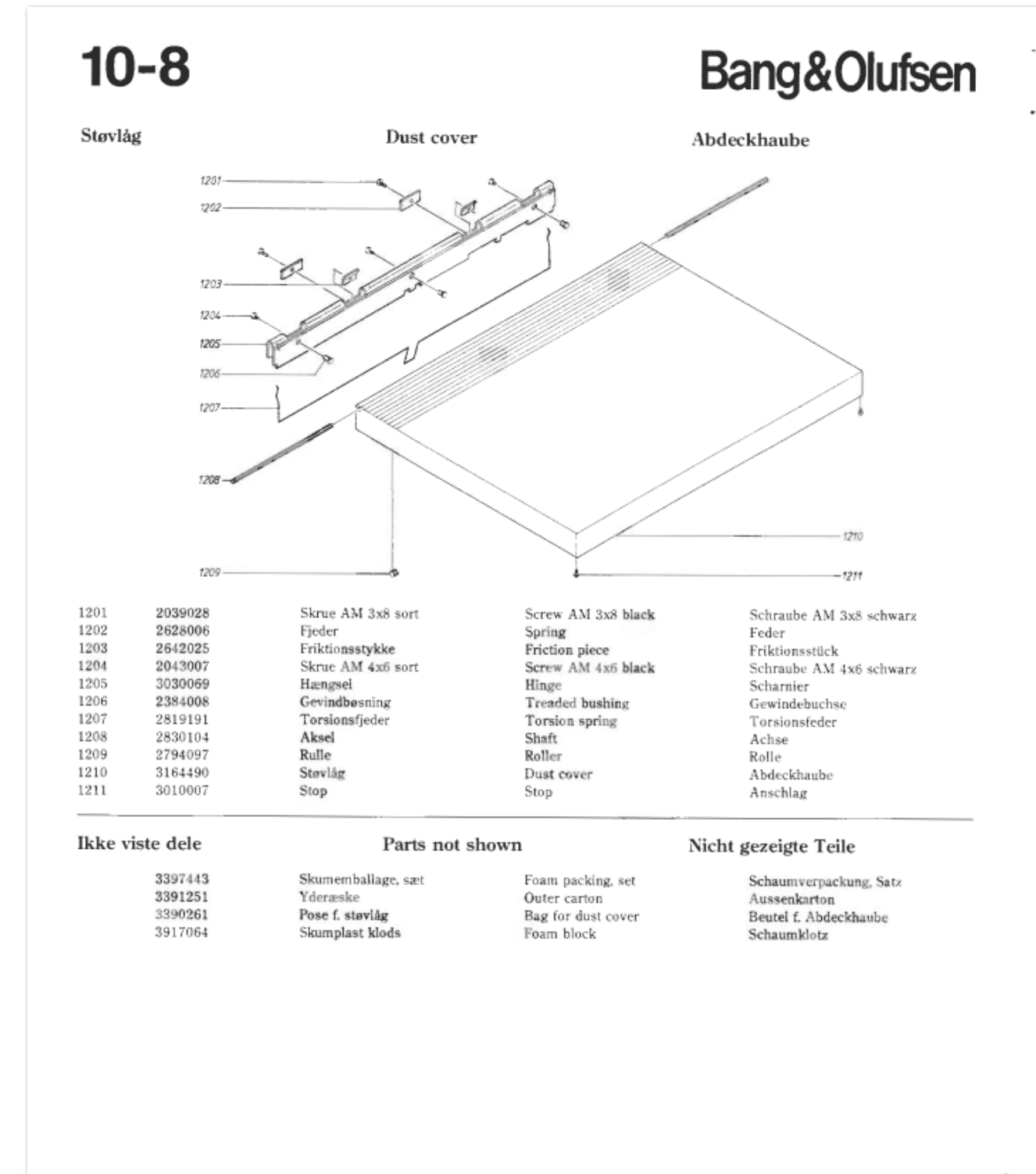

Can anyone tell me how the two brackets 1203 must be placed? Over or under 1207 the metal spring? Tried several but when I put them under I cannot get the cover back in place.

I think it should fit in the holes but unfortunately that is not enough. Tried chatgpt but not helpful enough.

Been busy all day with this.

A drawing would be great….

• This topic was modified 1 month ago by Henki.

[Rolf2]

I have an RX2 and will look at it this weekend. I will make a picture of the mounting, if this helps?

Kind regards,

Rolf

Location: Germany
Favourite Product: It is obvious ….
My B&O Icons:

[Rolf2]

Hi,

here are some older threads dealing with the topic, maybe this helps: RX2 DC_1, RX2 DC_2.

My pics:

Kind regards,

Rolf
