Home Forums General Discussion & Questions General Discussion & Questions IC410 PCB4 parts list? NXP – Beovision 7-40 MK III

Viewing 2 posts - 1 through 2 (of 2 total)
  • Author
    Posts
  • #61838
    Jeppe Locht
    SILVER Member

    Hi all

    IC 410 just blew its top and now the stand-by circuit of my BV 7-40 has stopped working. The TV is now dead as a brick. Does anybody have a parts list of even a board of the same type and can tell me the exact type? Only half of the letters are readable.

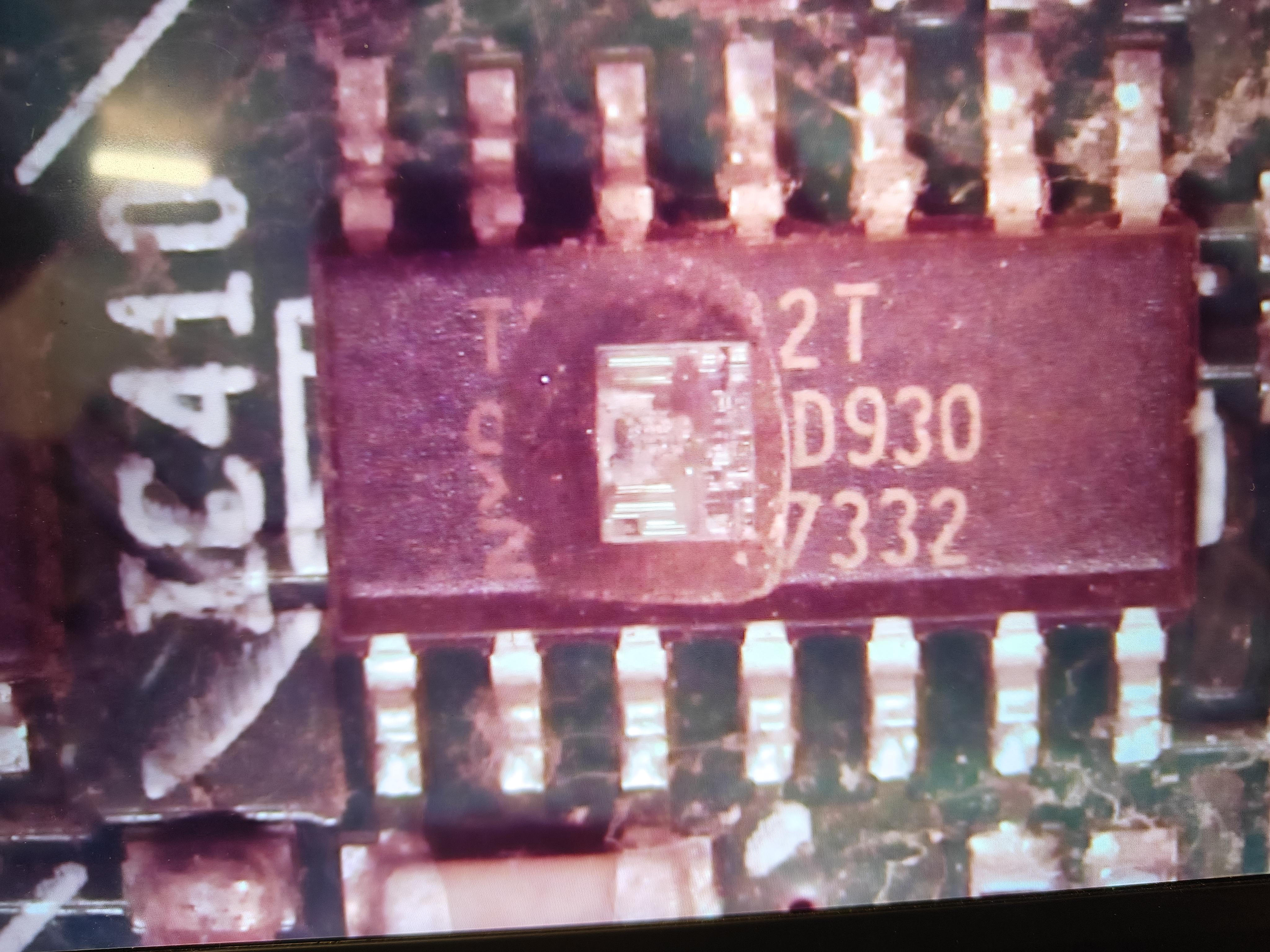

    It is an NXP chip and the type seems to be “T_2T” with underscore representing the lost characters (see picture below). Can anybody help with the missing characters?

    TV: Beovision 7-40 MKIII type 9376

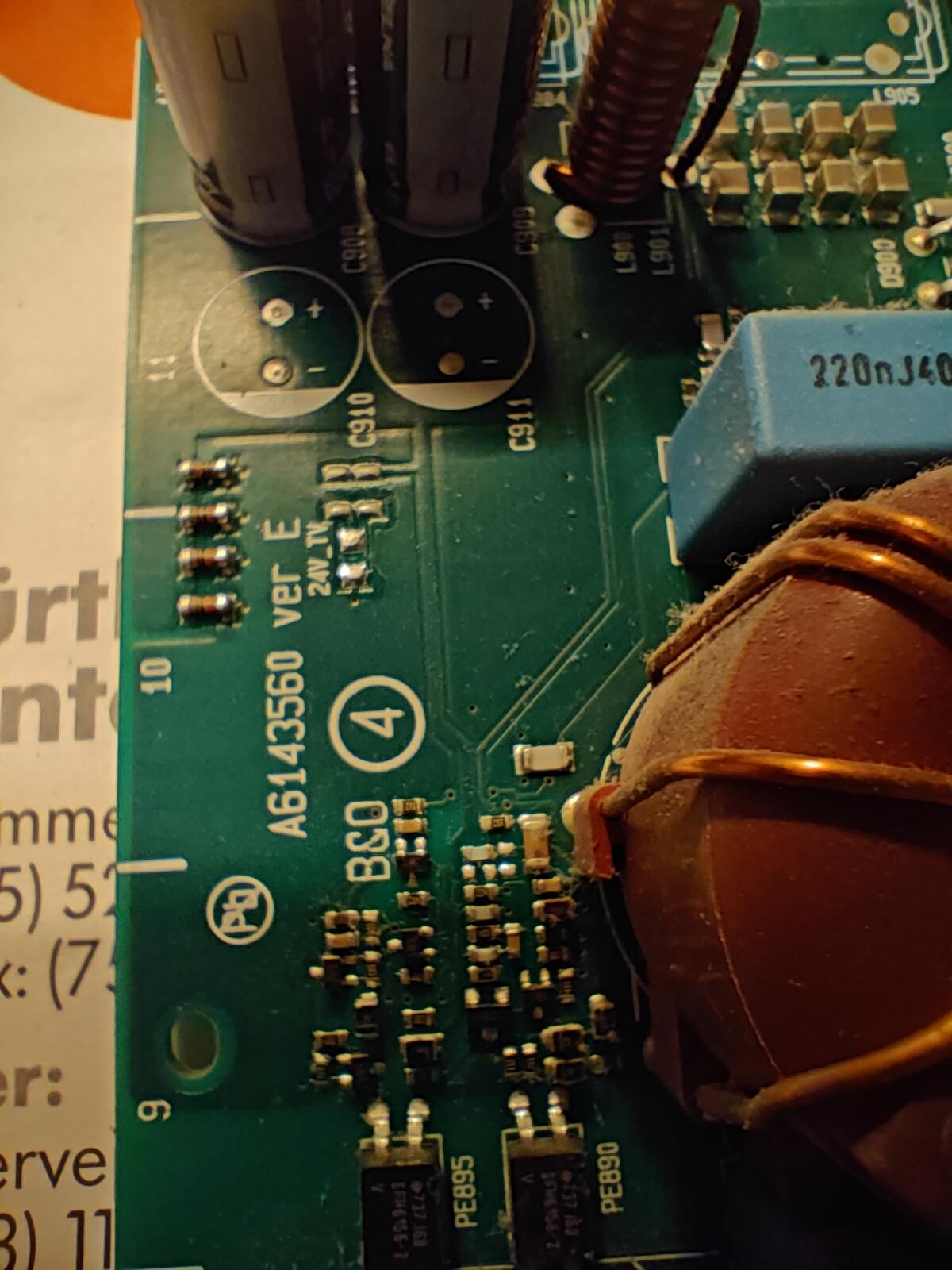

    Board: 4156460 Ver E

    Thanks in advance.

    j.



    #62334
    Jeppe Locht
    SILVER Member

    It is an NXP TEA1522T and when we changed it, everything went back to normal

    https://www.nxp.com/docs/en/data-sheet/TEA152X.pdf
