Beovision 1 THT circuit diagram

[Niko Clt]

Hello,
I’m looking for the circuit diagram for the THT board of a Beovision 1.

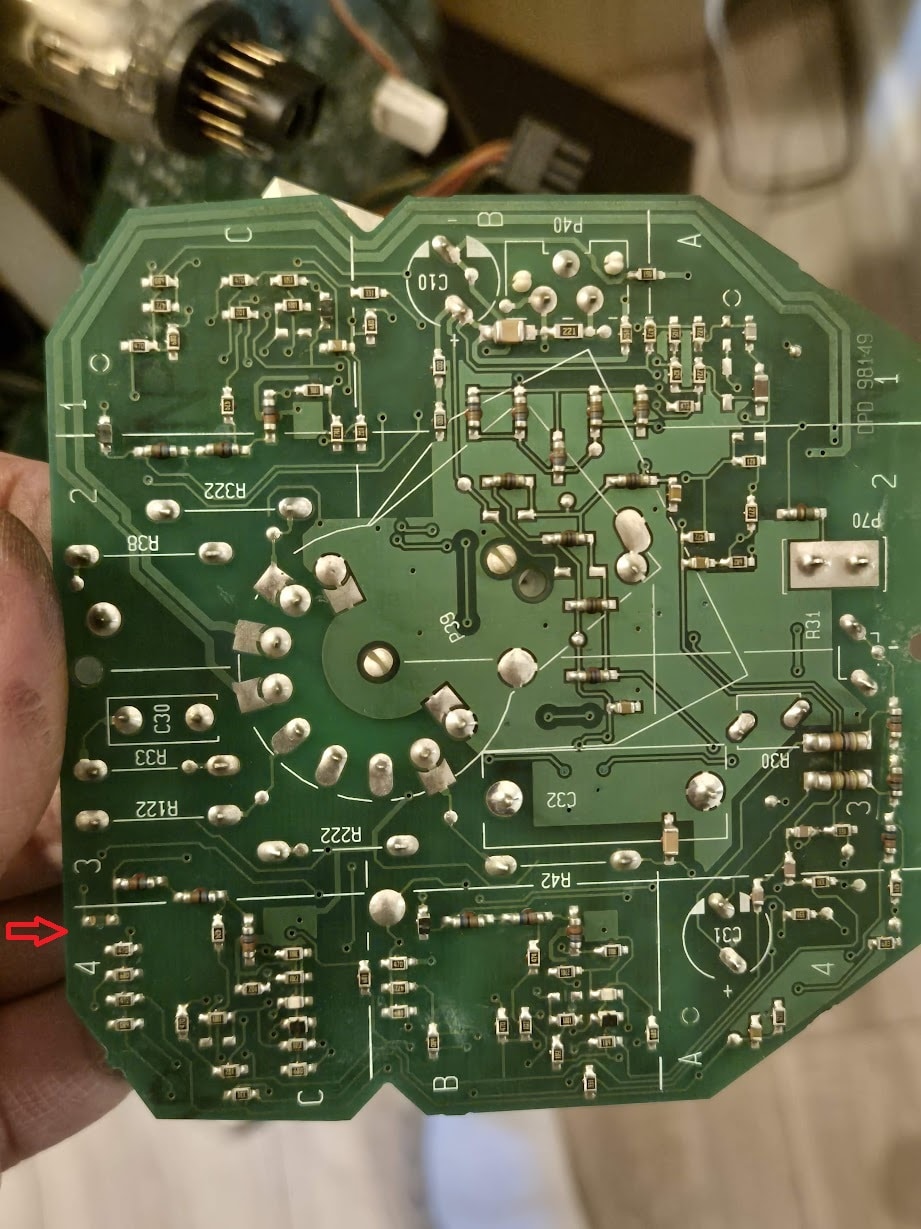

While cleaning the board, a component came loose, and I don’t know its reference.
I think it’s an inductor.
Thank you in advance for your reply.”>



• This topic was modified 13 hours, 49 minutes ago by Niko Clt.

Attachments:

You must be logged in to view attached files.

[Guy]

Hi and welcome to Beoworld!

I checked the BV1 service manuals available on Beoworld, and unfortunately they don’t go down to circuit board level.  BV1 was one of the early B&O products that moved to a system of ‘module replacement’ rather than component level repair, with faulty modules being sent back to the factory.

If the BV1 was based upon an earlier B&O TV then there may be a similar service manual available, but failing that I would think that a good old fashioned TV repairer (if you can find one) could has a good guess at the component required.  Or perhaps a Beoworld member has a BV1 that they are prepared to look inside.
