      I write this topic because my Beosound 9000 had a small problem, as mentioned in the title of the topic, the sledge was touching the back of the CDs.

      I found this very useful topic on the forum that put me on the right way.

      https://archivedforum2.beoworld.org/forums/p/9723/295830.aspx#295830

      In this topic, it is said that the problem comes from two faulty parts. The rocker arm n°9134 and the damper n°46. See the drawing below.



      schéma

      You can access to these parts by removing the bottom plate of the unit. Be careful, when removing it, there is grounds connected to the plate. It is easier to remove the top plate to disconnect the grounds.

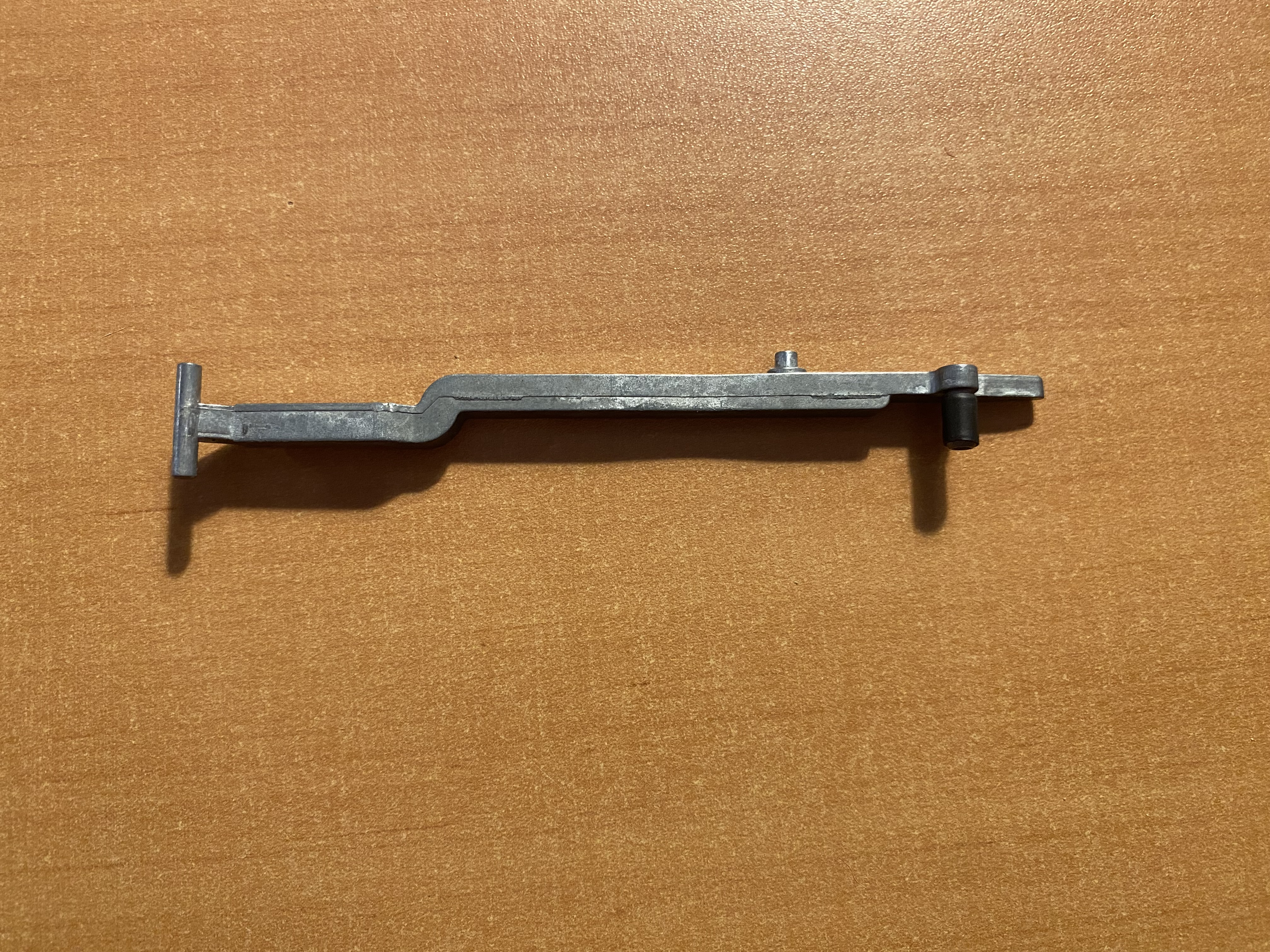

      The rocker arm n°9134

      Rocker arm

      The damper n°46

      Damper

      This week a friend of mine went to the local B&O reseller to order this two parts for me. But unfortunatly, they told her that these parts were no longer available. But the technician was very kind, he call me on the phone and tell me that maybe he could provide me these parts if he find a broken unit.

      So in my mind, I started thinking of how I could repair it without new parts. I doubted that the rocker was faulty, because according to me the mechanism is too weak to bend an aluminium part.

      I concentrated myself on the damper. It looks like a silicone tube. I start thinking that the damper is maybe worn so the mechanism is not going down enough. So I put a heat shrink tube over the damper to slightly increase the diameter.

      Like this.

      IMG_0958

      I reassemble all the parts. Here is the rocker arm back in place.

      IMG_0961

      Detail of the damper with the heat shrink tube over it.

      IMG_0959

      And after this little modification, my Beosound 9000 works perfectly ! I am very happy.

      The sledge fly over the CDs without touching them.

      I hope this topic can help people who have the same issue with their BS9000.



      #44005
      matador
      Moderator
        • Paris France

        Bonjour Pierre and Welcome to Beoworld,

        Thank you for taking time for posting again despite the issues you had with your fist attempt.

        The rocker twisted arm was indeed an old story and the first suspect when the sledge is scratching, until someone advised that it can’t be bent so easily and started to look more at the damper.

        Parts being if not rare, often difficult to find at your local dealer (in France at least) the shrinking tube is welcome. Please let us now how it turns aft some week of use.

        #44006
        pierre69
        BRONZE Member
          • Lyon, France

          Thank you Matador,

          Yes, I will make a feedback in several weeks.

          There is one thing I have noticed when I opened the unit, is that the damper was moving freely around the rocker arm. Is it normal? Is it due to the wear? I don’t know. With the heat shrink over it , the damper is more tight on the rocker arm. That’s the only difference.

          Will the wear out faster ? I don’t know, time will tell.

          For the moment everything is fine.

          #44007
          zuegers07
          BRONZE Member

            If there was a “Like”-Button for your post, Pierre, I’d click it!

            Thank you very much for sharing – I have the same problem, and I know now how to fix it!

            #44008
            pierre69
            BRONZE Member
              • Lyon, France

              I’m so glad that this topic can help you !

              #44009
              Rajkumar-Cat
              BRONZE Member

                Hi all I had used medical Peristaltic Pumps silicone tube “Kamoer Silicone Tube ID: 2mm OD: 4mm they supply minimum 100cm. We can replace for 1000Xnos BS9000 player.

                This size very perfect, existing sleeve 1mm thickness, this tube 2mm will service longer.

                This silicone tube is very soft transport operating very smooth. I have noticed existing damper sleeve too thin this is reason under pressure between mechanical parts cut or deep wear on damper sleeve.

                Rajkumar

                #44010
                pierre69
                BRONZE Member
                  • Lyon, France

                  When I took off the old worn damper on my BS9000, I measured it with my caliper. The outside diameter was 3.60mm.

                  I forgot to measure it with the heat shrink tube on it. But I think, the diameter is around 4.00mm.

                  An OD of 4.00mm seems to be the right dimension.

                  #44011
                  pierre69
                  BRONZE Member
                    • Lyon, France

                    Just a little feedback.

                    It’s been a little bit more than one year since I have made the modification with the heat shrink tube as describe above. My beousound 9000 is still working great. I use it nearly every weekend.

                    I still enjoy watching and listning to it like the first day.

                    Pierre

                    #44012
                    lesbart
                    SILVER Member
                      • Norway

                      This appears to be a known, common problem.
                      I put some pictures in the older forum:
                      https://archivedforum2.beoworld.org/forums/t/46977.aspx

                      Some claim that the rod can bend.

                      /Les



                      #59813
                      Znarf75
                      BRONZE Member

                        I had the same problem, that the sled touched the back of the cd´s.

                        The thing that fixed it, was to straighten  the rocker arm, using as small hammer, and “bend” it the other way.

                        I could feel the rocker arm was bend, when laying it on a flat surface, it was “rocking”. After som delicate hammer work, it was straightened.

                        I also inspected the rubber piece which was worn slightly. I turned it 90 degrees.

                        IMG_7283IMG_7284IMG_7285
