Hi alls,

I’d like to model a BL3500 table stand mesh to 3D print it and see if it can hold the weight of the speaker.

I can find roughly its shape from the owner’s guide but like to be as close as possible from the original.

If anyone has the stand and time, could you please size it for me and add some picture (for holes…).
A perfect side shot or better a flatbed scan would be a great help also.

Of course the mesh will available in the forum for everybody (if it works!).

Regards.

Location: Paris France

[Madskp]

I have one of these pieces of unobtanium in my collection and I owe you one  for the fine drawing you made of the Playmaker stand.

I can not guarantee that I can make something as good, but I can give you measurements, pictures and a scan of the profile of the stand.

Would you prefer the Scan as a PDF or a picture?

Location: Denmark

[Madskp]

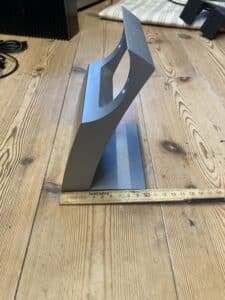

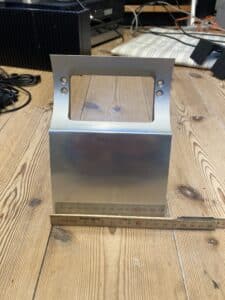

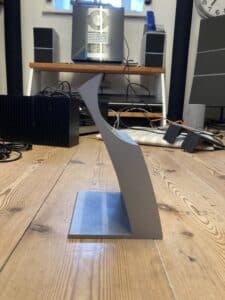

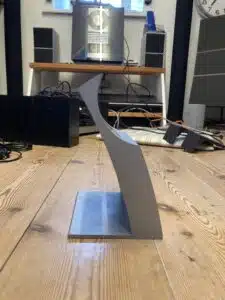

Some pictures for starters

Location: Denmark

[matador]

Hi Madskp,

Madskp wrote:

a scan of the profile of the stand. Would you prefer the Scan as a PDF or a picture?

A picture would be perfect.

The pictures you posted will be a great help. Could you please measure the whole height of the stand ?

Thank you!

Location: Paris France

[Madskp]

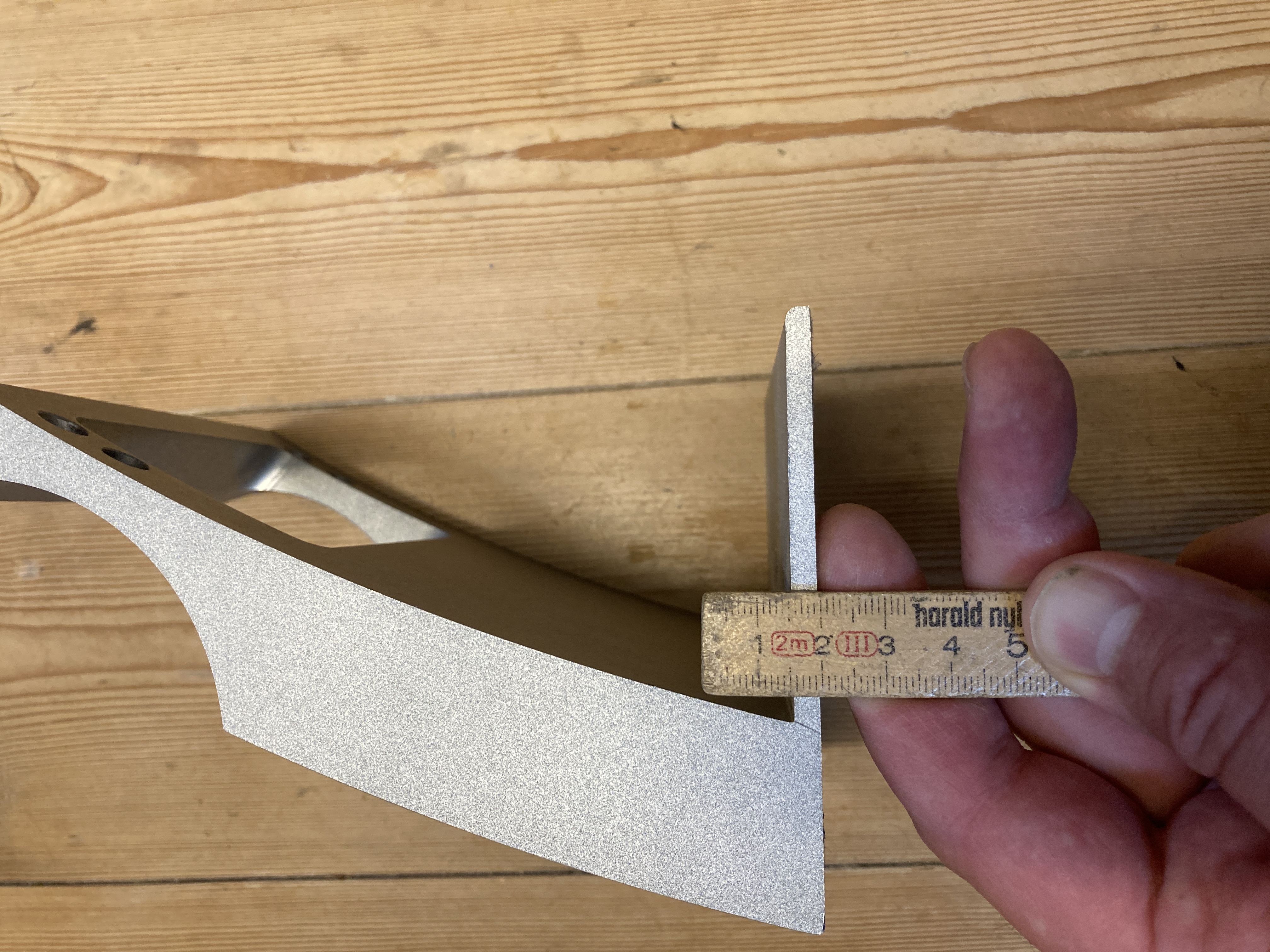

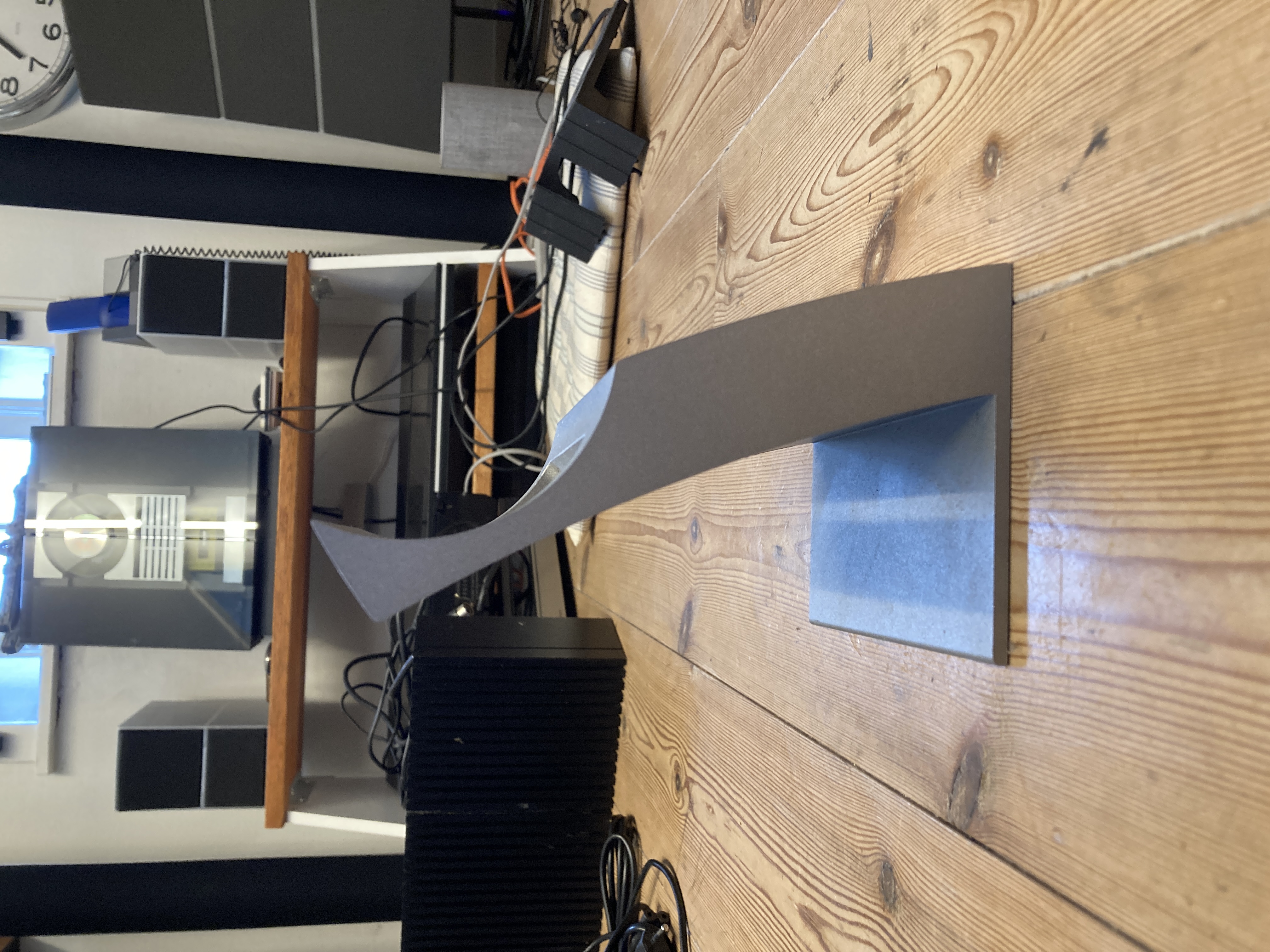

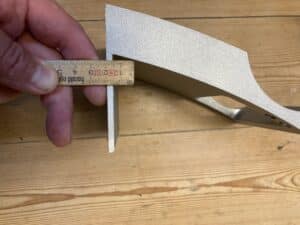

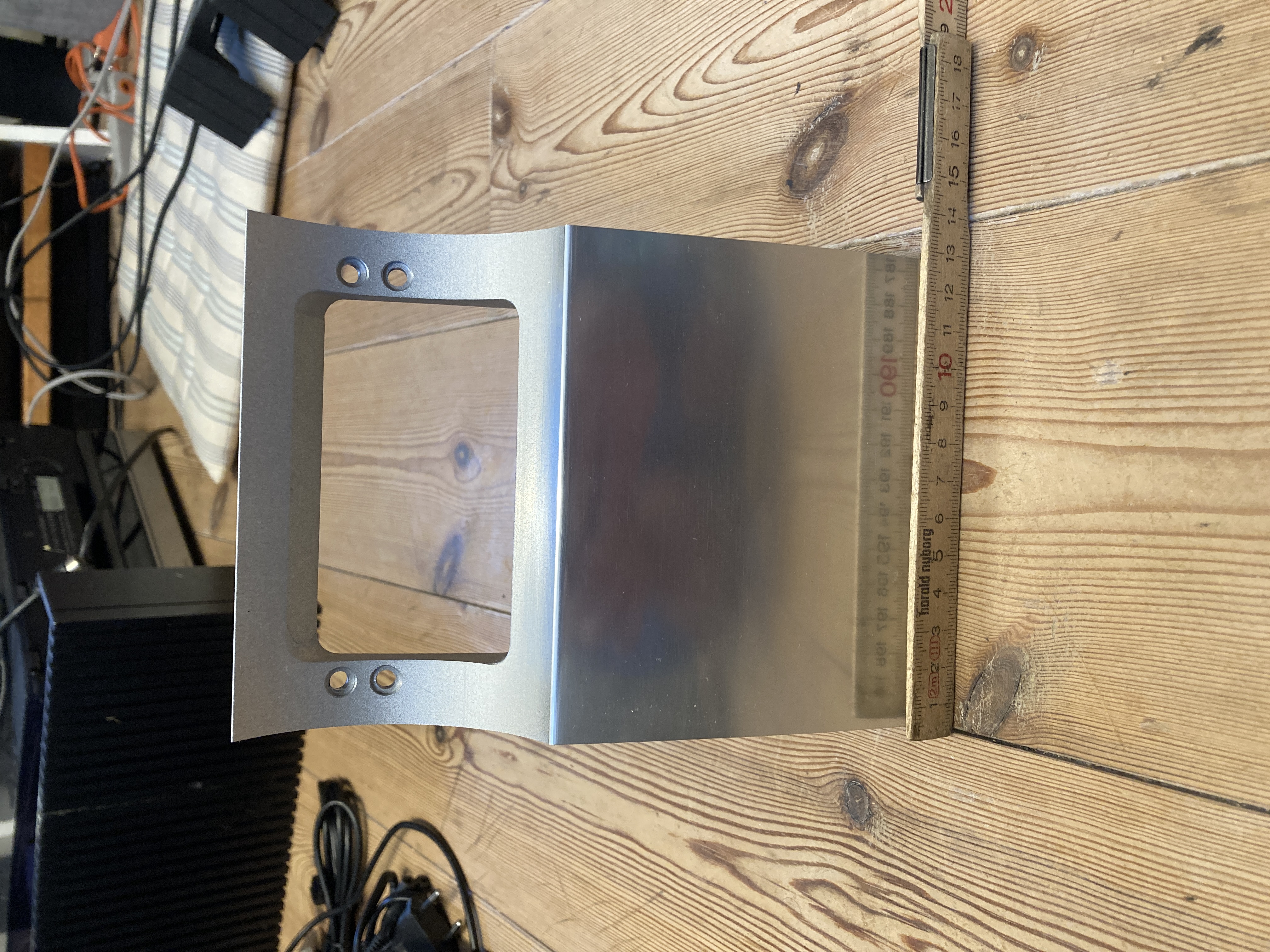

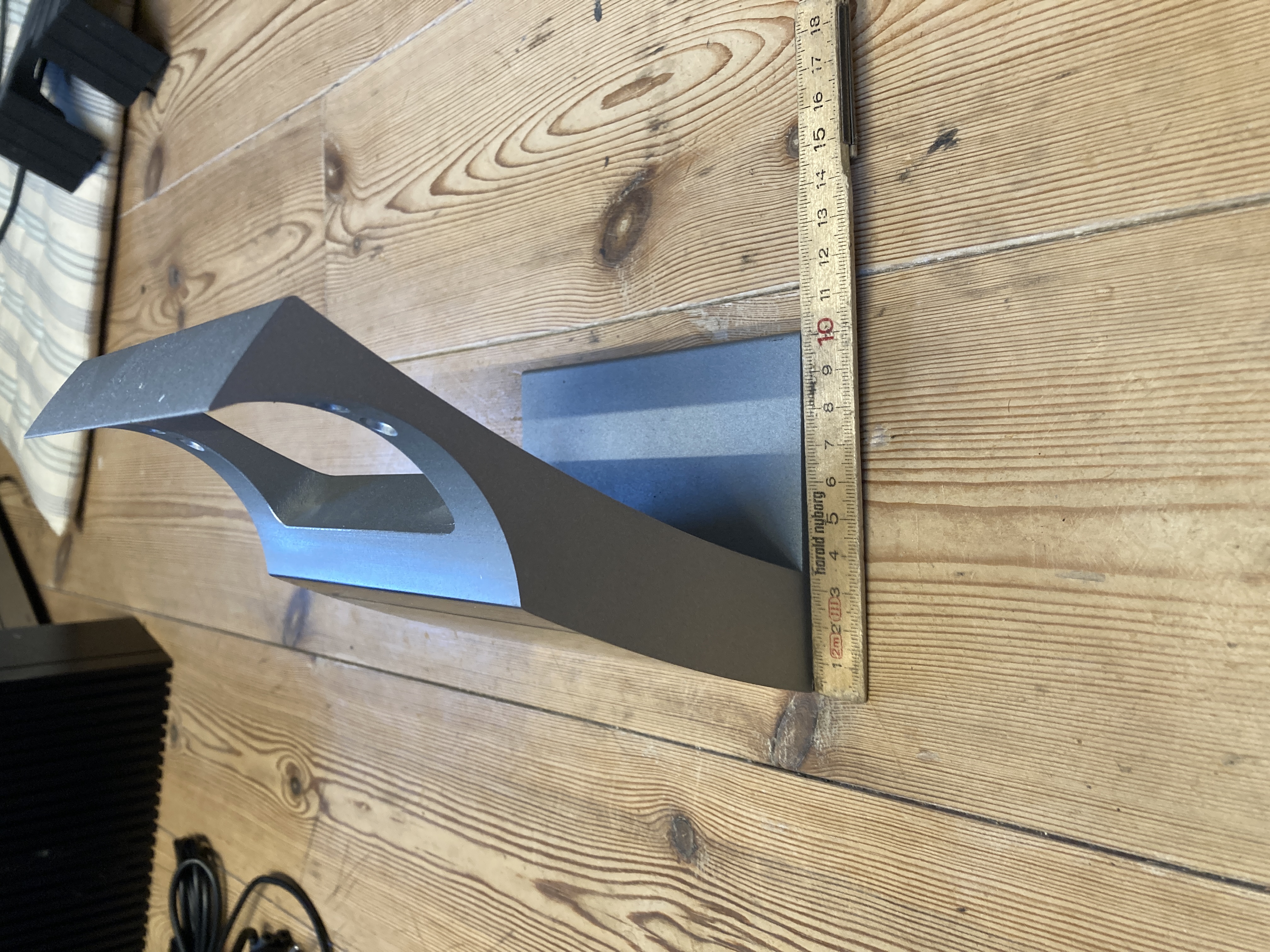

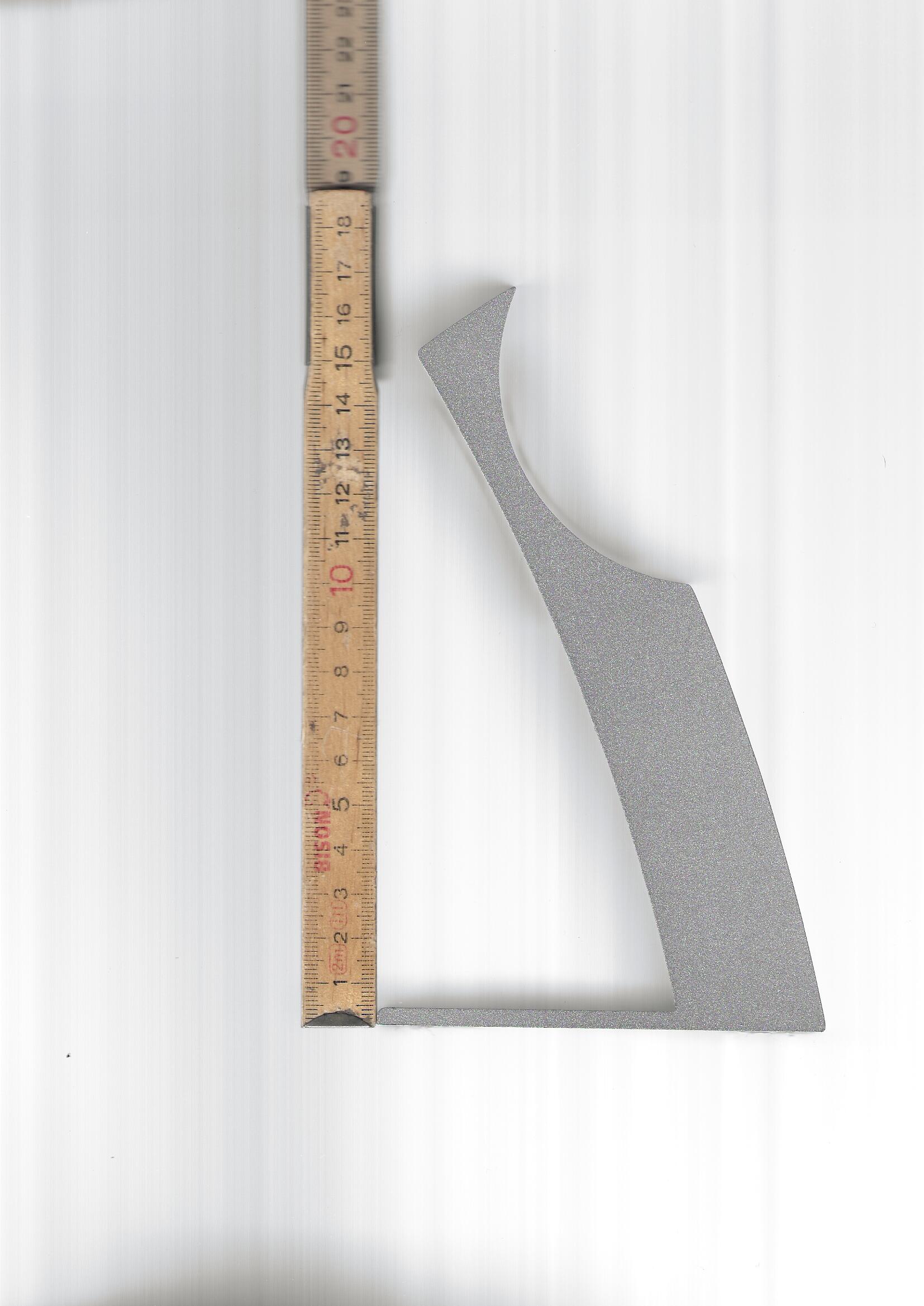

I hope this give the answers you need

I something need to be adjusted let me know and I will give it another go.

Also let me know if you need any other measurements

Location: Denmark

[matador]

That’s perfect, all I needed to know for now.

I may come back to you later in the modeling process to check the holes position (I bet B&O does’nt place them randomly and speaker orientation has it’s reasons).

But for now it’s all good.

Thanks you Madskp.

Location: Paris France

[matador]

Madskp wrote:

I owe you one  for the fine drawing you made of the Playmaker stand.

Your debt has been erased!       😀

Location: Paris France

[Madskp]

matador wrote:

I may come back to you later in the modeling process to check the holes position (I bet B&O does’nt place them randomly and speaker orientation has it’s reasons).

I sure I can get some measurements for that when you are ready for that. The upper pair of holes place the BL3500 display in a 90 degree position, where the lower set of holes gives it a little angle pointing the display more upwards.

matador wrote:

Your debt has been erased!

Great 🙂 I will continue helping you where I can though



Location: Denmark
