Home Forums Product Discussion & Questions BeoLab BeoLab 3500: sometimes responds to remote control, sometimes it doesn’t ?

Viewing 20 posts - 1 through 20 (of 21 total)
  • Author
    Posts
  • #52556
    KolfMAKER
    SILVER Member
      • The Netherlands

      The BeoLab 3500 I discussed in another thread, seems to have issues with responding to the remote control.



      What I use

      • To make it switch to the external audio source, via DIN input,  I use the ‘Menu > 4 > 0 > Go’ command.
      • I make use of a Beo4 remote control.



      What happens/problem

      • The BeoLab 3500 sometimes responds correctly to the commands from the Beo4, but also sometimes not. I do not recognize a pattern.
      • When I remove the power plug from the BeoLab 3500 and restart it, the above described commands work at least the first time. After that sometimes not, sometimes they do.



      What I tried

      • I removed the Beo4 batteries and replaced them with fresh new ones. > No change.
      • I took another Beo4 remote (also with fresh batteries). > No change.



      Question

      Who has experienced something like this, or has an idea for solving this issue?

      #52557
      B3OHACK3R
      BRONZE Member
        #52558
        KolfMAKER
        SILVER Member
          • The Netherlands

          Thanks @B#OHACK3R, that’s great info!



          I guess it is a matter of getting the display part out.

          Is the PCB with the mentioned IR-receiver chip and capacitors, right behind that?

          #52559
          B3OHACK3R
          BRONZE Member

            Yes, getting the display out is a bit tricky.
            First you have to remove the whole front PCB which is still pretty easy.

            The IR related parts are underneath the internal bracket that holds the display in place.
            For removing that you have to carefully desolder the red LED, the photo-resistor and the two IR sensors.
            Then you can slowly pull it off and get access to the caps. There is also some sticky foam touching that board. Better remove it and give it a proper clean afterwards to prevent future damage.

            #52560
            KolfMAKER
            SILVER Member
              • The Netherlands

              Good that you mention that B3OKACK3R.

              Two questions:

              • Are the capacitors to be replaced electrolytic’s or SMD’s?
              • Do you happen to have a picture of how that PCB looks like?
              #52561
              Guy
              Moderator
                • Warwickshire, UK

                Who has experienced something like this, or has an idea for solving this issue?

                I just wondered if you have tried IR control of the BL3500 in a normal setup (connected to an Audio/Videomaster via ML). I ask this because I have have such intermittent problems with ‘Test Mode’ with other products, using cleared by removing power. The MENU 04 GO command is effectively such a Test Mode. Perhaps IR sensitivity is reduced in Test Modes – this would make sense in a workshop where several B&O products are placed.

                I would probably attempt a more ‘normal’ IR test before stripping it down.

                #52562
                B3OHACK3R
                BRONZE Member

                  Are the capacitors to be replaced electrolitics or SMC’s?

                  Yes, they are all SMD while the components you have to desolder for removing the display are through-hole ones.

                  Do you happen to have a picture of how that PCB looks like?

                  Unfortunately no, sorry. Forgot to take pictures during that repair.

                  I would probably attempt a more ‘normal’ IR test before stripping it down.

                  Good point regarding possible issues with test mode in general. Nevertheless the IR reception “strength” itself cannot be adjusted in hardware. It could just ignore certain commands due to software flaws etc. in that mode.

                  #52563
                  KolfMAKER
                  SILVER Member
                    • The Netherlands

                    Thanks for your comment Guy, nice hearing from you again!

                    I haven’t exactly tried what you described. Though I have tested both Beo4’s on a BeoSound Ouverture for normal operation. Both Beo4’s and the Ouverture responded well to remote control operation, each time.

                    Concerning the Test Mode on the BeoLab 3500, I wasn’t aware that this is a testmode command set. I just use this command to activate the DIN connector for audio input (MCL set).

                    But I must also add that I have been using another BeoLab 3500 (currently not in my house) this way for 2 years. It always responded well to this type of remote control operation. So my guess is that the comment by B3OHACK3R could help solve this.



                    #52564
                    KolfMAKER
                    SILVER Member
                      • The Netherlands

                      @B3OHACK3R

                      Concerning your remark to get to the components to be replaced:

                      “The IR related parts are underneath the internal bracket that holds the display in place.
                      For removing that you have to carefully desolder the red LED, the photo-resistor and the two IR sensors.”

                      I think what you mean is: (see 1st picture below)

                      1. De-solder the 2 points in the yellow square for the photo resistor.
                      2. De-solder the 4 points in the blue square (the legs of the two IR-sensors.
                      3. De-solder the 2 points in the reed square for the photo resistor.
                      4. De-clip the 4 plastic feet from the PCB and lift the plastic bracket at the front to access the components underneath. (2nd picture below)

                      Is this the right understanding?



                      (5) IR board - Back kopie

                      (4) IR board - Front kopie



                      #52565
                      B3OHACK3R
                      BRONZE Member

                        Yes, exactly. Sounds good.
                        Don’t forget to mark the polarity of the components when desoldering them. The photoresistor won’t care but the LED certainly will and the two black IR sensors probably as well.

                        Be careful when removing the black plastic frame. It’S a bit tricky as the display will come off as well. It’s plugged into a two row pin socket connector on the bottom. So disengage the four clips from the bottom and then gently pull it up. You will need some force.

                        Now when I look at the picture – you might also get away with just replacing C17. It’s a dual footprint. It can either be an SMD or a THT part. Mine was SMD – if yours is THT like in the picture you might be able to replace it using a small tip for your soldering iron. Nevertheless then you are missing out two SMD electrolytic caps that are under the plastic frame. Lower left area close to the red LED in your second picture.
                        I don’t know which cap is actually causing the problem. I just replaced all three of them and since then everything is working well again.

                        #52566
                        KolfMAKER
                        SILVER Member
                          • The Netherlands

                          Here’s an update.

                          Before moving on I decided to check the IR-PCB and it’s traces more closely.

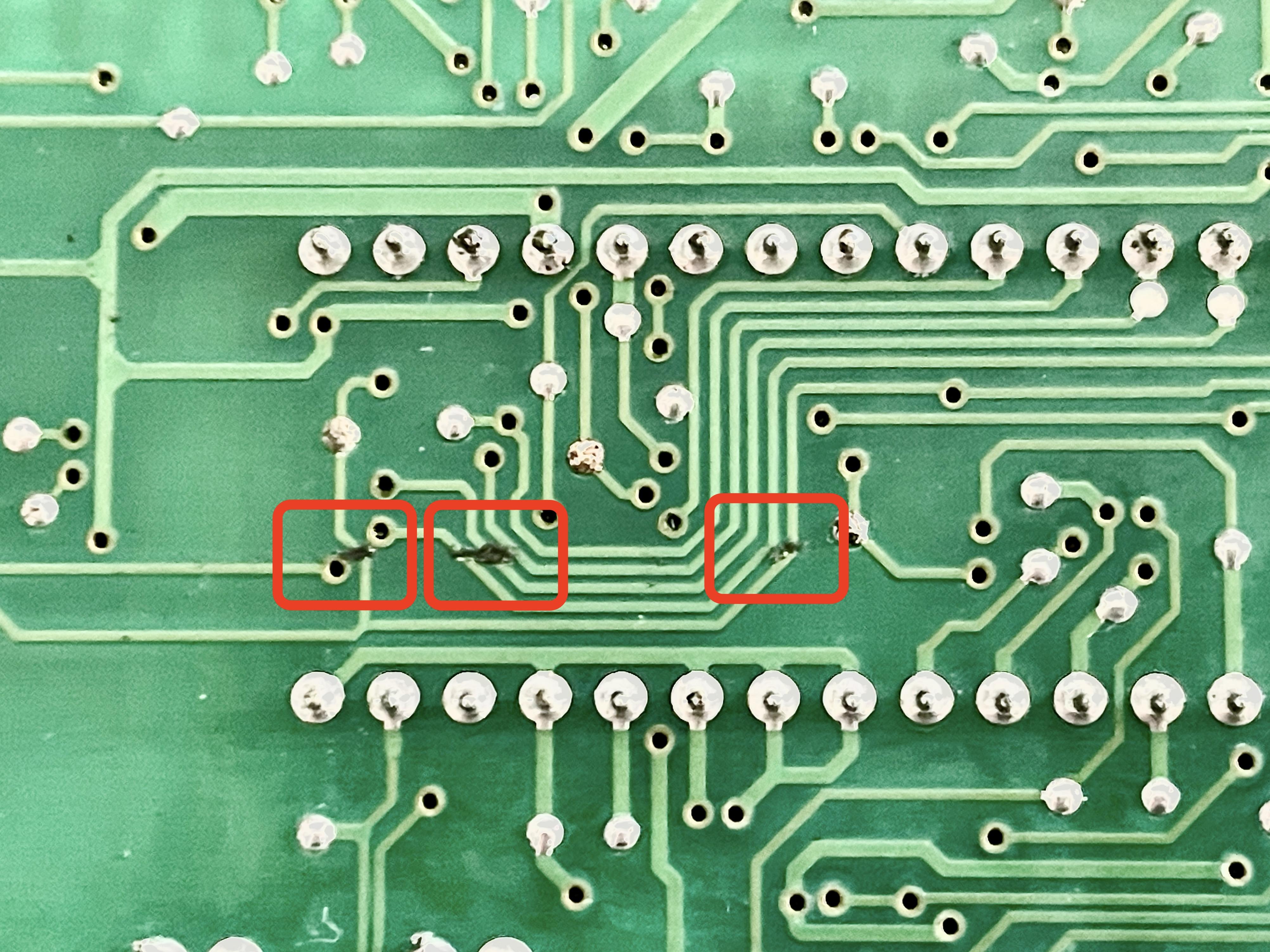

                          I found some foam remains sticking to and covering 2 or more traces (see 1st picture).

                          (6a) IR board - PCB side with trace possible damages kopie

                          So I decided to clean them first, which went pretty easy. And after cleaning I placed the board back and tested it again with the remote. It did not solve my issue; the BeoLab 3500 still doesn’t not respond to the Beo4.

                          Also I would like to share what the display looks like. here’s some pictures:

                          (1) Display after Power On: It shows ‘:’ in the 4th segment and ‘*’ in the 8th segment.

                          (1) Display at Power On

                          (2) Display after pressing the Right button: all segments are blank and sometimes the red LED stains On but sometimes it goes Off.

                          (2) Display after pressing Right button

                          (3) Display after pressing the Left button: the segments show ‘TIMER’.

                          (3) Display after pressing Left button



                          Maybe this gives more information for additional diagnoses.

                          Question:

                          • Does this change anything for what I am about to do?



                          (I am about to do what B3OHACK3R advised me to do, read above)



                          #52567
                          B3OHACK3R
                          BRONZE Member

                            Great, thanks for adding the pictures. Will for sure help others in the future.

                            I think to remember that my unit says “TIMER ON” and “TIMER OFF” when pressing that touch button. Can’t test that currently. It is mounted in a pretty inaccessible location.
                            Otherwise it’s looking identical.

                            If you want to be really sure if the problem comes from the IR receiver circuit you have to probe it with an oscilloscope. In the BeoLink Active service manual you’ll find the schematic of the silver IR eye. It uses the same IR receiver chip so the circuit should be pretty much the same. You should be able to probe the outgoing (demodulated) IR signal on pin 7 of the U2506B chip.

                            #52568
                            KolfMAKER
                            SILVER Member
                              • The Netherlands

                              Ok, thanks @B3OHACK3R !

                              In that case I will proceed with what you advised me to with exchanging components on the board.

                              Will be continued …



                              #52569
                              KolfMAKER
                              SILVER Member
                                • The Netherlands

                                Update

                                I have now de-soldered the light and IR-sensors and the LED. I took pictures and marked the legs to remember their position on the PCB.

                                (7b) IR board - Desoldering of lgiht & IR sensor and LED

                                Pulling the plastic panel from the PCB, indeed needed some force. But for anyone doing the same, be careful to lift the panel in an even, horizontal movement. Especially for the LCD-block in the middle; it sits with 26 pins in a foot socket on the PCB. So this way you can keep the legs all straight.

                                (8c) IR board - PCB & Panel & LCD seperated



                                Replacing capacitors

                                I found these capacitors on the PCB:

                                Scherm­afbeelding 2024-02-12 om 13.06.31



                                Questions

                                1. If I understand wel, C18, 19 and 17 will have to be replaced, right?
                                2. C3, 36,  35, 4 and 34 can stay in place?



                                #52570
                                B3OHACK3R
                                BRONZE Member

                                  Nice progress.

                                  If I understand wel, C18, 19 and 17 will have to be replaced, right?

                                  Yes, exactly!

                                  C3, 36,  35, 4 and 34 can stay in place?

                                  Yes, I doubt that they have something to do with the IR reception. At least I haven’t touched mine.

                                  #52571
                                  KolfMAKER
                                  SILVER Member
                                    • The Netherlands

                                    Great & thanks!

                                    I will now first get the components for C18, 19 & 17 and replace them.
                                    And then make a test.

                                    To be continued …

                                    #52572
                                    KolfMAKER
                                    SILVER Member
                                      • The Netherlands

                                      Another and final update.

                                      I have just replaced the capacitors C18, 19 and 17. After removing C17 and measuring its values on my capacitor tester, I noticed it was still ok. But anyhow while doing, I replaced it with a new one.

                                      C18 & 19 I replaced with regular electrolytic capacitors. The voltage a bit higher than spec. but still small enough to fit.



                                      Result after testing

                                      Everything works fine again!

                                      Like always, you need to know what you are doing. But this appeared to be very do-able.



                                      For anyone else who needs to do the same. Here are some helpful steps.

                                      Step 1 – Shift the two speaker covers from the middle to each respective side: appr. 1 cm. This will show the two black screws left and right in the middle. Removing those two screws will enable the IR-cover to be removed.

                                      (1) IR board - Disassembly

                                      Step 2 – Next the two ribbon panels above and under the IR-panel have to be removed. Each has two light silver screws. Remove them and remove both panels.

                                      (3) IR board - Disassembly

                                      Step 3 – On the top of the PCB, just slightly left from the middle, is a flat cable and its connector on the board. Push the two lock sliders on the side of the connector up to unlock it. Gently and evenly, pull the flat cable out. The whole PCB can now be lifted out.

                                      Step 4 – To whole plastic panel that sits on the PCB has to be removed, to get access to the components underneath. To do so, four components have to be de-soldered:
                                      a. Yellow = the red LED.
                                      b. Blue = the two IR-sensors. The two top pins for the top sensor, the two bottom pins for the bottom sensor.
                                      c. Red = for the light sensor.
                                      d. Purple = push the clips (two-by-two) inwards to release the plastic panel from the board.

                                      (5) IR board - Back kopie

                                      Att! Be aware of the position of the components and their legs, removing them. When re-soldering them, the position of the legs has to be right. I marked them both on paper and a leg.

                                      (7b) IR board - Desoldering of lgiht & IR sensor and LED

                                      Be aware that to separate the panel from the PCB, some force is needed. Make sure to push/lift the panel even and in a horizontal movement upwards. The display module (block in the middle of the picture below) has two rows of 12 and (resp.) 14 pins. When the panel has been lifted off, the LCD module may come loose. Be aware of its position, especially the cut corner on the left bottom side.

                                      (8c) IR board - PCB & Panel & LCD seperated



                                      Capacitor replacement
                                      For solving the IR-issue, capacitors C17, C18 & C19 will have to be replaced.

                                      (2024-02-12) BeoLab 3500 - PCB Capacitors & Values



                                      After the replacement, just work in the opposite order as described above.

                                      It makes sense to first reassemble the PCB with its plastic bracket, the LCD module, and putting back the light & IR sensors and the red LED.

                                      Then connect the flat cable and make a test.

                                      If right, everything else can be put together again.

                                      #52573
                                      B3OHACK3R
                                      BRONZE Member

                                        Perfect! Happy to hear that it worked for you.

                                        Likely many of the BL3500 will have exactly the same issue sooner or later. Would be a shame not fixing them. They are looking really nice and have a decent sound.
                                        So thanks for publishing that how-to guide. Something I obviously missed in my other thread. 🙂

                                        #52574
                                        KolfMAKER
                                        SILVER Member
                                          • The Netherlands

                                          Thanks for all your help B3OHACK3R !

                                          I couldn’t have don it without.  🙂

                                          #52575
                                          Madskp
                                          GOLD Member
                                            • Denmark

                                            Very nice writeup of the procedure.

                                            I will indeed save that for further reference
