Home Forums Product Discussion & Questions BeoLab Beolab 3500 MKII ML error

Viewing 10 posts - 1 through 10 (of 10 total)
  • Author
    Posts
  • #47025
    Madskp
    GOLD Member
      • Denmark

      I have acquired a used Beolab 3500 MKII. As described in this thread https://forum.beoworld.org/forums/topic/bl3500-and-the-mcl-pl-connector/page/3/#post-20934 I have some issues with Masterlink on it so opening this separate thread as a fault finding / repair thread.

      As mentioned in the other thread it does respond to options settings commands from the remote, and to the service commands like Menu, Menu, 0, 2, GO

      Also able to play sound through the PL connector when using Menu, Menu, 0, 4, GO

      It will however not respond to any source commands, and when connected to ML

      I get an error 1, 2 or 4 when Pressing Menu, menu, 0, 2, GO

      I have tried replaced the IR board with one from a MK1 BL3500, but nothing changed.

      Also replaced the microcomputer board with the on from the MKI BL3500, keeping the MKII IR board. Still errors.

      If I replace both the microcomputer and the IR board with those from the MKI BL 3500 it  works fine, so I think I can rule out the crossfield and plug board.

      I have also tried to install the IR and the microcomputer board from the MKII into the MKI BL 3500 and ended up with the same errors.

      So there is probably both faults in the IR and the Microcomputer board.

      Any ideas what I should look after here?

      The easy thing would be to replace the boards, but the few I can find on Ebay cost more than I gave for the speaker, so I would rather try to see if it is repairable on component level









      #47026
      Guy
      Moderator
        • Warwickshire, UK

        It’s a long shot but the behaviour would be similar if the Beo4 was in permanent LINK mode with the BL3500 in non-LINK mode  – I seem to remember that you can still change L.OPT settings but that is about all.  Is there any change in behaviour if you put the BL3500 in L.OPT 4?

        But given that you are getting error codes I think the problem is more complex.

        #47027
        Madskp
        GOLD Member
          • Denmark

          You are right that it behaves like it is in opt. 4 or 0 for that matter

          however it is currently in opt 6, and then there is the errors related to ML

          #47028
          Madskp
          GOLD Member
            • Denmark

            Oops didnt read your reply correctly. Will try with L.opt 4 later and report back

            #47029
            Madskp
            GOLD Member
              • Denmark

              A few observations:

              • I can not change option settings when the BL3500 MKII. is not connected to ML. This is possible on the MKI
              • When I have it connected to ML (BLC1611) and change the option setting to L.OPT 4 also the service commands can not be done with normal commands.
              • Measuring voltage levels on the 20 pin connector on the IR board all seems normal except for -5V which I can only measure at -4.3V, so here might be something
              #47030
              Madskp
              GOLD Member
                • Denmark

                Measuring voltage levels on the 20 pin connector on the IR board all seems normal except for -5V which I can only measure at -4.3V, so here might be something

                Tried measuring the -5V on the MKI and it shows -4.5V and that is working.

                Another thing I noticed on the MKII is that the timer light is always on. If i touch the timer button and switch it to “timer off “the light will go out, but then turn on again when the text disaper in the display.

                #47031
                Madskp
                GOLD Member
                  • Denmark

                  The service manaul for the MKII states that in case of an error 4 on should check the cables and the signal path (amplifiers in the data transceiver circuit).

                  As the MKII service manual don’t have diagrams I am using those from the MKI servicemanual.

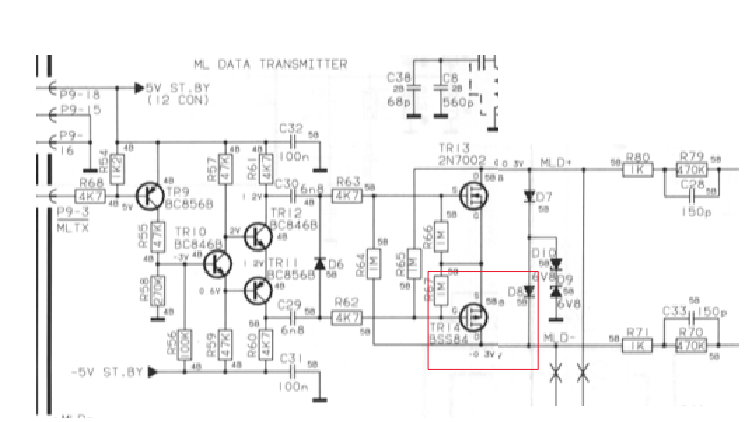

                  In that there is shown a transmitter and a reciever circiut for ML on the IR board. The transmitter part has some transistors where the reciever par has some IC’s. So I choose to focus on the transmitter part.

                  Skærmbillede 2023-06-17 kl. 13.29.22

                  I tested all transistors and diodes and found that TR14 is not recognized by my component tester (so might be faulty) and D8 is short circiut.

                  Here is a picture of the placement (D8 is removed when I took the picture)

                  Skærmbillede 2023-06-17 kl. 13.31.37

                  The placement of D8 is not the same as shown on the PCB layouts in the MKI service manual.

                  Now I will try to source these components and see if replacing them makes a difference.

                  Any insights as tho why the might have gone faulty are very welcome if I am overlooking something.



                  #47032
                  Madskp
                  GOLD Member
                    • Denmark

                    Now I will try to source these components and see if replacing them makes a difference.

                    I found a replacement for TR14 in a faulty BLC 1615. Its an SMD part named BSS84. The marking on the part can aperently differ. The faulty one had the marking YBs, where as the other part and also the one in the MKI was marked SPs.

                    I found a matching diode to replace D8 on some scrap electronics. A little larger part but it could be mounted in an angled position.

                    The result is not pretty, but now ML is working again with no errors, and it responds to source commands when connected to a ML master.

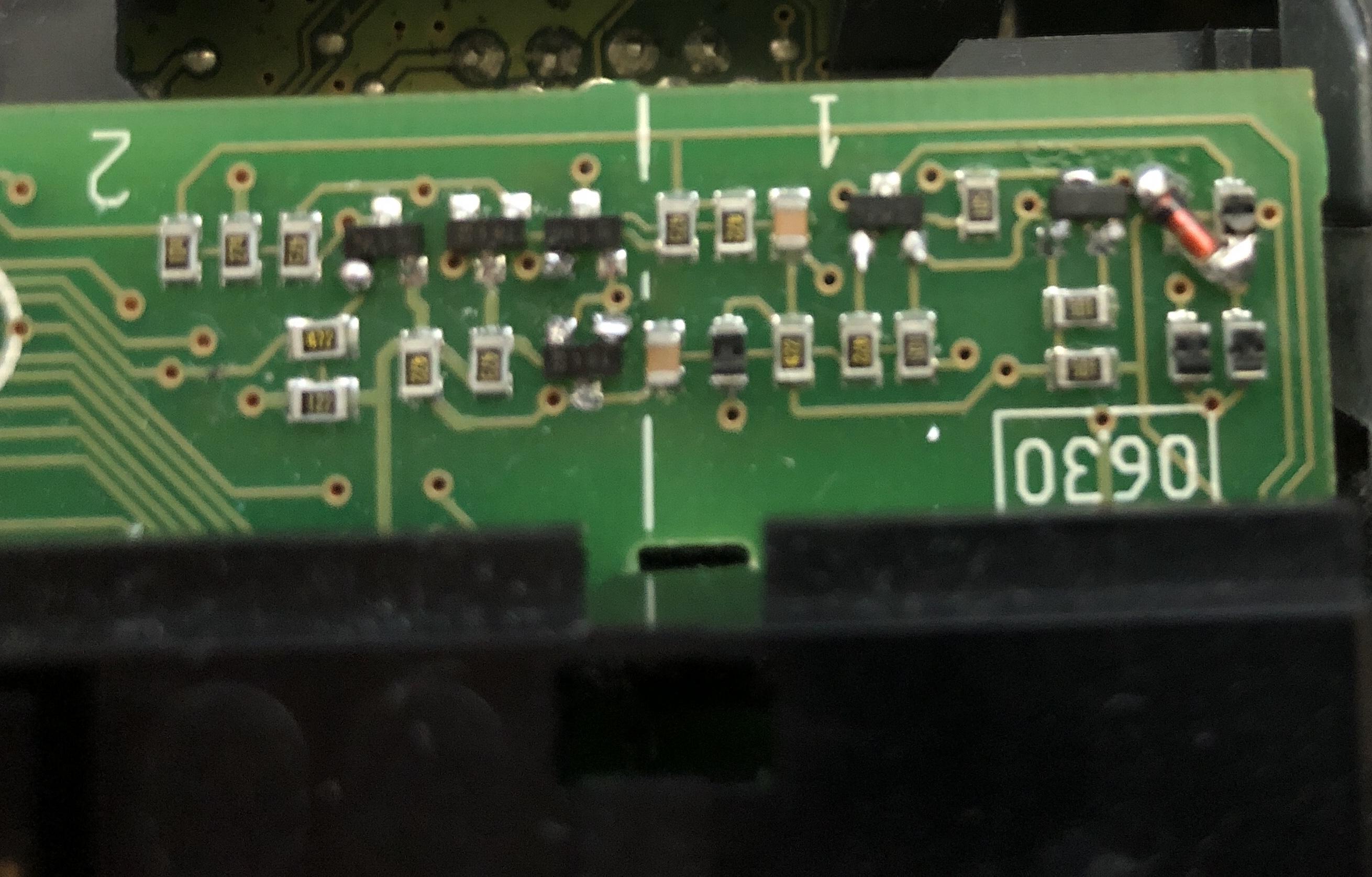

                    IMG_8831 So now it’s back to the  other thread for testing again.

                    #47033
                    Guy
                    Moderator
                      • Warwickshire, UK

                      Great result finding and fixing the ML fault – looking forward to seeing developments on the other thread!

                      #47034
                      Madskp
                      GOLD Member
                        • Denmark

                        Great result finding and fixing the ML fault

                        Yes that was nice that is was fixable.

                        Only downside is that now I have a faulty where I introduced a missing component making it even harder to diagnose 😉
