      Got a replacement laser for the Beocenter 9300 and now trying to replace it, but cant for the life of me figure out how to get the old laser module out.

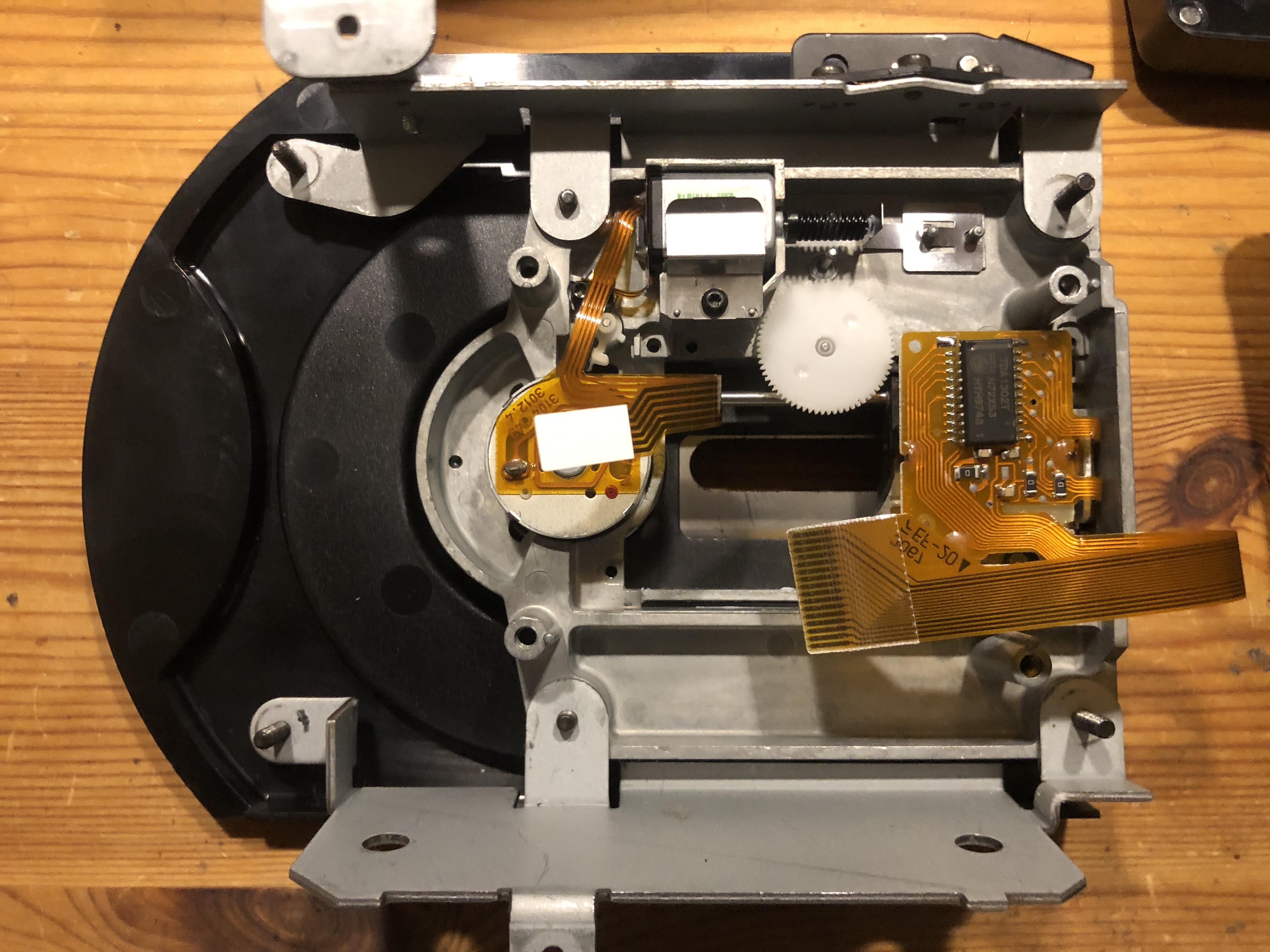

      IMG_9158

      To me it looks like I have to remove the big white gear to be able to lift the guide rail and the laser module out. But I can’t make the gear move out, and a little afraid to break it.

      Any inputs?

      Thanks in advance

      #49701
      Die_Bogener
      BRONZE Member
        • Topics Started 2
        • Total Posts 245

        The white gear wheel is just snapped on the axle. Either pull it or use a small needle to open the snap…

        #49697
        auric
        BRONZE Member
          • Topics Started 15
          • Total Posts 87

          Hi:

          Watch this video:

          Go to 5:45 mark.

          Derek

          #49698
          Dillen
          Moderator
            • Topics Started 3
            • Total Posts 605

            And use ESD-protection!
            These things are highly sensitive to static electricity.
            Many owners experience that new lasers don’t work, – and while it is correct that
            many asian “counterfeits” won’t work, or only work for a few hours, many lasers
            are damaged by static electricity, – either during shipping, if shipped without
            shorting clamp and/or ESD-shielding or by handling without taking
            proper ESD-precautions.
            I have seen many of both cases.

            Martin

            #49699
            Madskp
            GOLD Member
              • Denmark
              • Topics Started 36
              • Total Posts 906

              Hi: Watch this video
              Go to 5:45 mark. Derek

              Hi and thanks for the video link. It seems though that on the unit he is working on in the video he is removing a plastic bracket which gives acces to the other guide rail. But on the on from the BC9300 that both the guide rail and the overhanging “bracket” is part of cast metal, so there is no way to get the laser module up in that side of the mechanism.

              As I see it the only way is to remove the white gear, but I am very open to other suggestions

              #49700
              Madskp
              GOLD Member
                • Denmark
                • Topics Started 36
                • Total Posts 906

                And use ESD-protection! These things are highly sensitive to static electricity. Many owners experience that new lasers don’t work, – and while it is correct that many asian “counterfeits” won’t work, or only work for a few hours, many lasers are damaged by static electricity, – either during shipping, if shipped without shorting clamp and/or ESD-shielding or by handling without taking proper ESD-precautions. I have seen many of both cases. Martin

                Hi Martin and thanks for the warning. I have a grounded antistatic mat and wristband ready so I hopefully won’t fry the new module in the proces

                #49702
                Madskp
                GOLD Member
                  • Denmark
                  • Topics Started 36
                  • Total Posts 906

                  The white gear wheel is just snapped on the axle. Either pull it or use a small needle to open the snap…

                  Succes. It just needed the right amount of force to come of. Thanks for the tip. Always great to know beforehand if use of force is a good idea or gonna break think.

                  Installation of the new laser module vent smooth and now the CD part of the BC9300 is running smooth again ?

                  Thanks to everyone for inputs

                  Next up is changing belts in the casette deck
