[Peter Albrechtsen]

.

My B&O Icons:

[Peter Albrechtsen]

Hi Guy, Hi Tignum,

Voila 🙂
It works with a resistor between pins 2 and 4 of the PowerLink cable as described in the thread above.

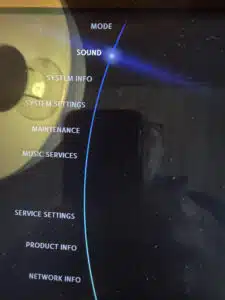

The Sound menu now appears.
Thank you very much for your time and effort in helping with my question.

Best regards
Peter

Attachments:

You must be logged in to view attached files.

My B&O Icons:

[Peter Albrechtsen]

Hi Tigum, Hi Guy,

That sounds very interesting. I’ll get a dummy plug made asap.
I’ll get back to you once I’ve tested it out.

Best regards
Peter

My B&O Icons:

[Peter Albrechtsen]

Hi Guy,
Thanks for your reply.
The system is set up as a stand-alone system, with speakers connected to the power-link connectors, however the speakers are not B&O but work similarly. I don’t think this could cause the issue.
Set-up exactly as system 1, shown on page 6 of the BeoMaster 5 BeoSound 5 Installation Guide.

AudioMaster is set to: YES
AM Option is set to 1

AM Option 0 (speakers turn off), 2, 5 and 6 has been tried but does not bring up the Sound menu.

In BeoMaster 5 BeoSound 5 Installation Guide, page 25, is shown how to set speakers, a sub item in the sound menu – this does not bring up the SOUND menu either.

Issue still unresolved.

Best regards
Peter
