Home Forums General Discussion & Questions General Discussion & Questions Powerlink – Power Up vs Speaker On

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • #38955
    styppen
    BRONZE Member

    I’ve been looking at the Powerlink wiring connections on BeoTech page and I have a question.

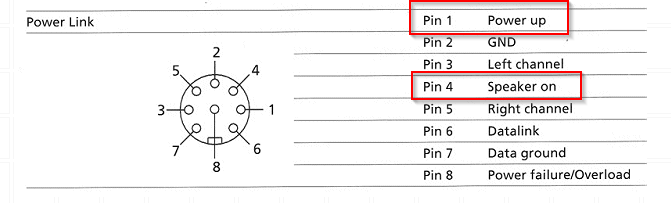

    Given the diagram below, what is the difference between 1 – Power up and 4 – Speaker on signals?

    powerlink



    #38956
    trackbeo
    BRONZE Member

    I always thought of of pin 4 logic as “~MUTE”, i.e. the opposite of the state of the mute-relay inside older Beolab speakers. ย Pin 1 comes on when the zone is active so the speakers power up. ย Pin 4 comes on when the speaker is to play, and goes off when the Mute button on the remote or the control panel is pressed. ย This was changed for newer speakers so that only pin 4 is used for control nowadays, so a trigger & a timer inside the speaker control power on/off. ย If you search the Archive forums for “Powerlink Pin 4” surely you will find more detail as it may relate to the specific speakers you are using.

    #38957
    styppen
    BRONZE Member

    Hi trackbeo, thanks for your reply. I did some reading on the archivedforum2 and found some useful information.

    I’m trying to connect my non-B&O streamer to Almando Powerlink switch and the input expects a trigger signal on pin 4 to activate the input.

    I have a Beolink Passive with a triggered powerlink cable which I was hoping to use to connect the streamer to the Almando switch. But the Passive trigger signal in that cable is wired to Power Up – Pin 1 and Dataground – Pin 7. Forgot to check, if Pin 7 is shorted to Pin 2 in that specific trigger cable.
