  • #52716
    xschop
    BRONZE Member

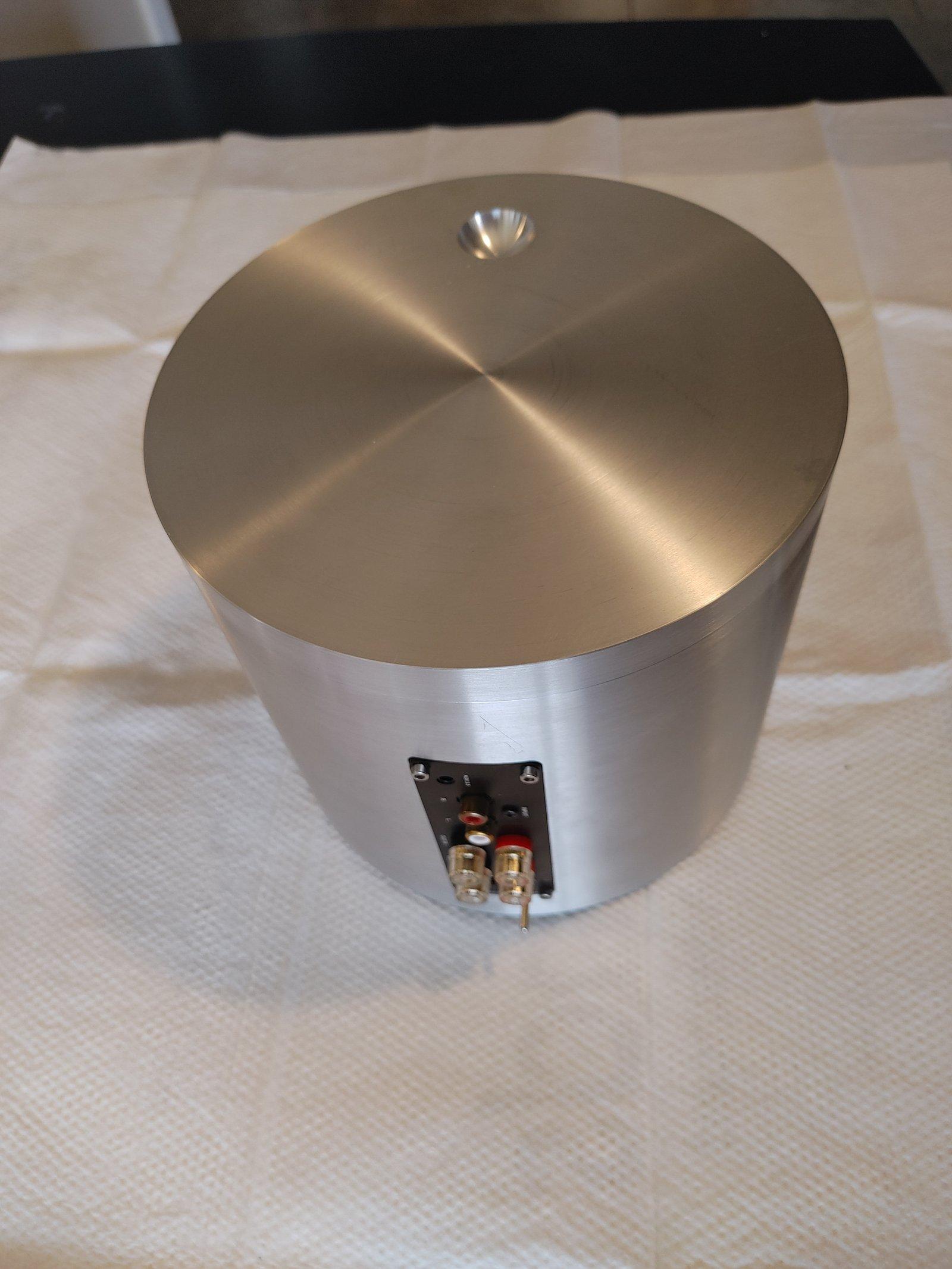

    Hello all, new member here. Just thought I’d share my B&O-inspired aesthetic designed amplifier case. It has a large 190 mm integrated volume potentiometer and acts as a heat sink with lower convection cooling. I recently rebuilt and modified a set of CX100’s and connected them in parallel to a passive subwoofer. After their rebuild, I was taken aback by the enormous soundstage and overall presentation, that I had to design an amplifier case to match the aesthetics that B&O is known for….

    XS Amp Case2XS amp caseXS Amp CX-100 RM1000

    #52717
    Tignum
    GOLD Member

    That is an impressive job! And certainly not a usual shape for an amplifier. Regards, J.

    Location: Netherlands
    My B&O Icons: No description available No description availableNo description availableNo description availableNo description available
    #52718
    etype76
    GOLD Member

    Great work there. Very neat and clean looking.

    #52719
    xschop
    BRONZE Member

    Thank you. I look forward to building another one.

    #52720
    AdamS
    GOLD Member

    That looks superb – excellent job!

    Although I hate to break it to you but you’re not really listening to CX100s by the looks of it, as they appear to be far from original.

    #52721
    xschop
    BRONZE Member

    I’ve owned quite a few classic Beovox and I have to say these are the best imaging and midrange-detailed for their size.  I have another set that I will do the exact same modifications to. I have built custom baffles out of solid alloy and it is the go-to medium in my opinion.

    Again, kudos to B&O for the quality of alloy they used in making these back in the day. They simply need a layer of dampening applied internally to make them almost dead-quiet.

    XS-5JrXS-5Jr2

    #61592
    xschop
    BRONZE Member

    A04 Case 3A04 Case 1



    Thought I’d share my latest B&O inspired amp based on the TPA-3251 chip amp…

    B&0 Desktop Rig

    #61636
    Tignum
    GOLD Member

    Built to last! Beautiful work xschop.

    Location: Netherlands
    My B&O Icons: No description available No description availableNo description availableNo description availableNo description available
    #62469
    xschop
    BRONZE Member

    Built to last! Beautiful work xschop.

    Thank you Tig. I usually don’t build anything unless it is “nukeproof”.

    I’m taking the design further and adding balanced inputs with another TPA3255 with PFFB. One of the best sounding amps I’ve heard to date.

    #63189
    xschop
    BRONZE Member

    My latest TPA-3255 with PFFB and fully balanced XLR inputs. Will build a 48 Volt power supply for this jewel….

    IMG_20250124_131217IMG_20250124_131249



    XS Amp Case Binding Posts

    IMG_20250126_140403IMG_20250126_131428

    • This reply was modified 2 months ago by xschop.
    • This reply was modified 2 months ago by xschop.
    #63306
    T.W.G
    GOLD Member

    Wonderful work.

    Now you need to visit a shop with a Laser engraver to add the last bit of perfection 😉

    #63841
    xschop
    BRONZE Member

    Started building another one. Incorporated heat dissipation ribs around circumference near bottom heat plate.IMG_20250213_110754IMG_20250213_125857
