Beovox Cona Subwoofer wiring installation into Beovox CX100 speakers and Beosystem 6500 issues

[Benji]

Hi all,

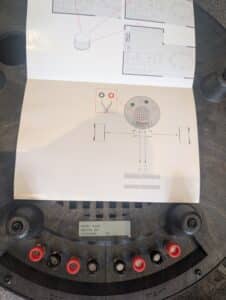

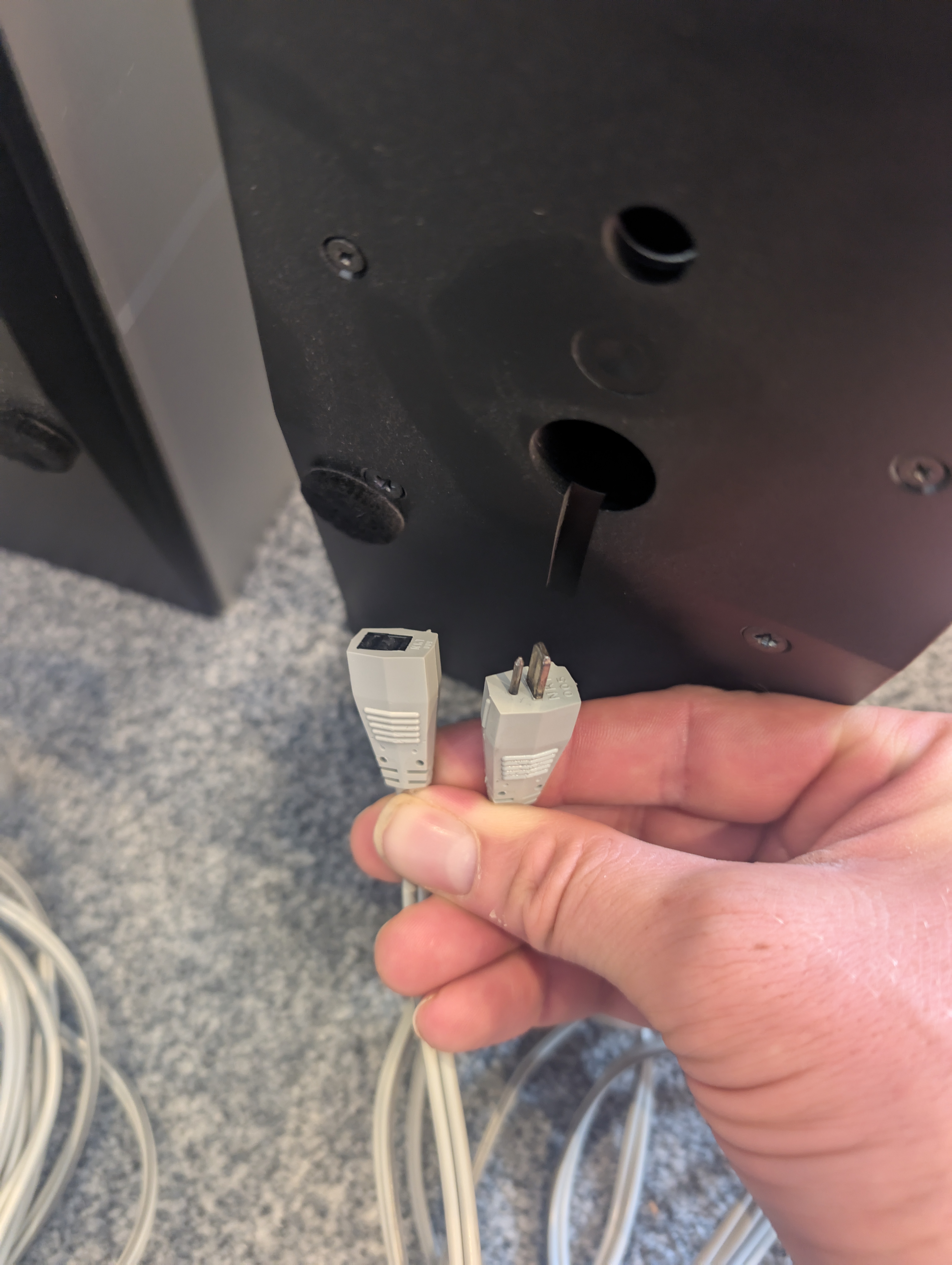

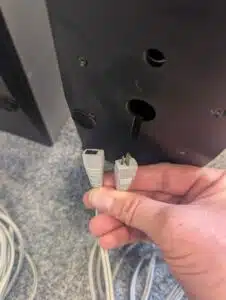

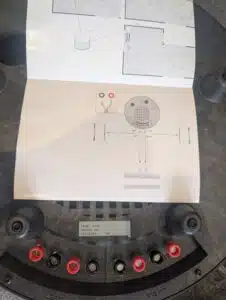

I have a full beosystem 6500 alongside the Beovox CX100 speakers, and Beovox Cona subwoofer, but I cannot for the life of me work out how you are supposed to connect inline, the DIN cabled CX100 speakers with the input/output connections on the underbelly of the Cona subwoofer which require raw copper cable, any help would be massively appreciated and even a cuppa of coffee donation would go to the first individual that helps me crack the solution, thanks for any support

[pepps]

Hi Benji,

Your cabling can be as follows:

Din plugs (male) from speaker output 1 on Beomaster to bare wire.
Bare wire to input shown on Cona (ensure correct polarity).

A second run of cable is required to allow bare wire from Cona outputs to Beovox.
If the Beovox have male DIN then use the female sockets.

In short, if the cable you have is long enough, visualise your final placement and cut the cable. The Cona will sit between the Beomaster and the Beovoxes acting a bit like a crossover.

• This reply was modified 21 hours, 58 minutes ago by pepps. Reason: Typing errors from my phone

Location: Kent, UK
Favourite Product: Beosystem 6500
My B&O Icons:

[pepps]

On second thoughts, keep that cable (because it’s nice and original and would serve a pair of Beolab Pentas well) and visit http://www.soundsheavenly.com to order just the right cable at exactly the right length.
Steve Marriot is a sponsor of this site and owns Sounds Heavenly. He can help you with any cabling query (as he has many of us over the years).
