Beovision 11-46 wall mounting

[paul9367]

Hi



i was luck enough to be given an 11-46 with the hinged wall mount.  Are there any instructions on how this is mounted. I can’t see anything online. I can see the plate attaches to the wall but not to sure how to attach the tv.  On the right hand side of the beovision, I can see the parts that swivel, do these locate onto the plate on the wall and screw in?

[Millemis]

The only source I can find online is this

MM

Location: Flensborg————Danmark

[paul9367]

Hi Mm



That is really appreciated. It does not look easy but I will have a look tomorrow and see if figure this out

Tusand tak

[paul9367]

Hi Millemissen

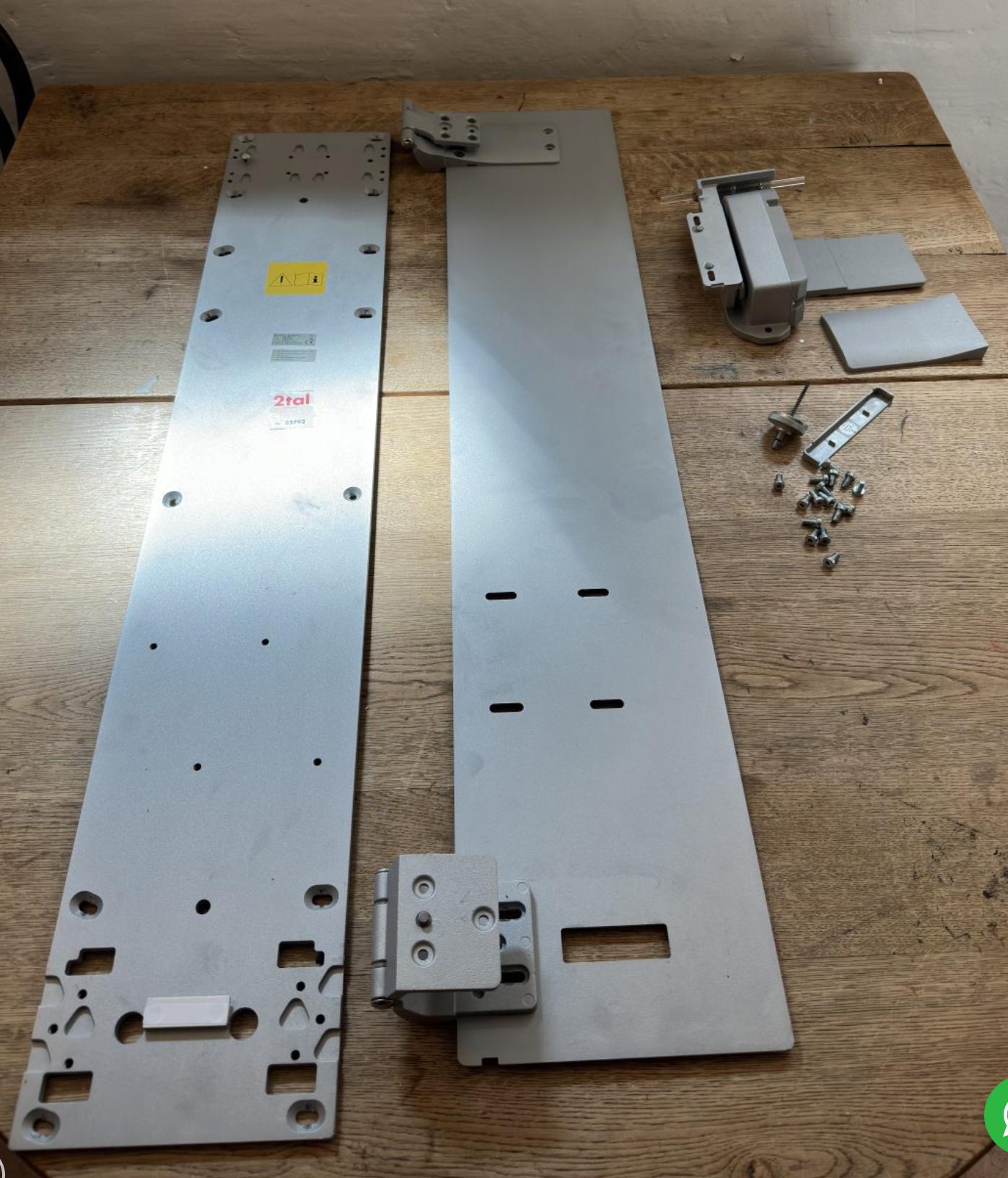

i have looked at the bracket, it looks like I’m missing the screws for the the bracket that attaches  to the tv, there are 7 small countersink screws  that attach to this the hinges. I have attached a picture just not sure what the size is ?





Attachments:

You must be logged in to view attached files.

[Millemis]

Could you maybe describe what you actually have!

Maybe someone else can chime in ?
It is a long time since I dealt with that – do not remember exactly.
I’d have to stand in front of one to recall it.

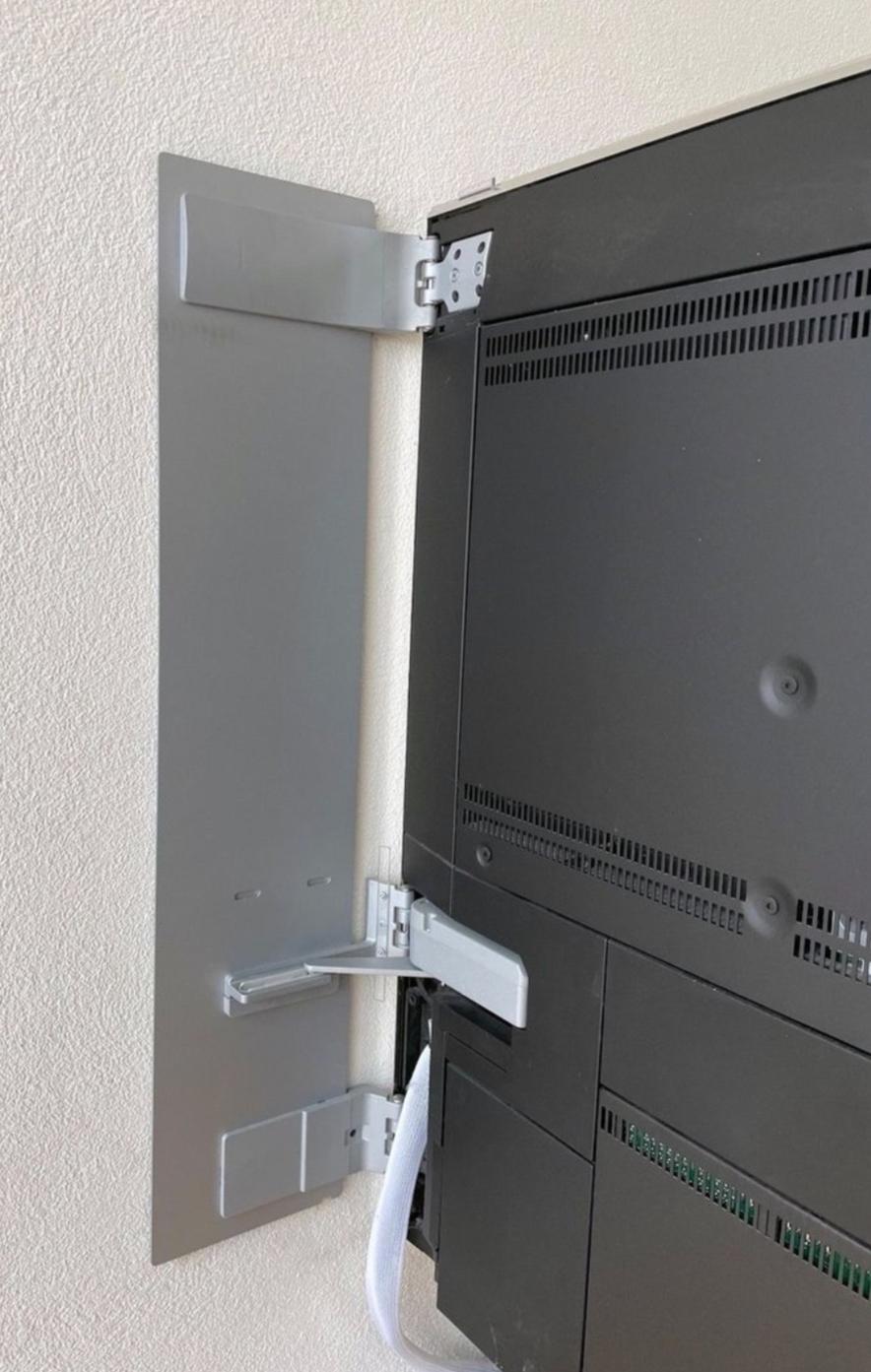

However this is what it looks like, when installed:

MM

Location: Flensborg————Danmark

[paul9367]

Hi



i have the two parts of the bracket A and B and I also have the countersink screws for all hinges that allow the bracket to mounted to the tv as well as the wall bracket the only parts I appear to be missing are the small countersink screws they are  called 7 X DB othe only one I’m missing is 1 x DA according to the manual you kindly linked to

[Millemis]

Location: Flensborg————Danmark

[Millemis]

Best consult an installer.
They might have installed one of these recently – maybe they have the spare parts.

Location: Flensborg————Danmark

[paul9367]

Hi Millemissen

I will ask them and see if they can advice will post back and let you know thanks for all your help



[vikinguk]

From archive… my BV11 40 hinge.

https://archivedforum2.beoworld.org/forums/t/3788.aspx

Graham

[paul9367]

Hi Graham



Thanks for info, unfortunately I have a plasterboard wall, on outside of the bracket I can luck I can hit the studs they seem to fit the bracket perfectly they are Cutter Pozi Screw 6.0 x 70mm. Once  I have installed the BVIS



[paul9367]

I have now managed to mount the bv11-46 on the wall bracket. I have two questions is it easy enough recover the fret on the speaker? The other question is the bracket. I can move the wall bracket to different positions manually but I don’t see any lead to plug it into the socket marked stand on the tv?

[vikinguk]

Did you resolve this? You need the separate hinge motor that plugs direct to the TV after locating it in position.

As far as the fret cover is concerned I would remove the fret from the TV and then paint it with fabric dye. You will never get a good fit by applying new fabric in my opinion.

Graham
