I recently bought this System manaul 1987/88 – Beolink as I was interested to see what that that was about.
It is in german, but I can understand enough (with a little help from Google translate) to figure that it is kind of like the later Master Control Handbooks (and Masterlink Handbooks for that matter).
But that got me thinking, how many of these kind of systemmanuals / Handbooks was there? Was a new one coming each year or only if larger changes in the product programme and link technology made it nessecary (probably)?
To get a little wiser I have tried to make a list of the system manuals and Master Control Link Handbooks that I know exist in the next post , and then maybe others can chime in with info about other versions and I will update the list accordingly.
As with many manuals from B&O there is not a clear indication of publication year/month/date, so I have tried to make an indicative publication year for each manual based on the naming and/or information in it.
System Manual 1986/87 ( ~1987)
I do not have acces to this System Manual, but it is mentioned by name in the system manual 1987/88

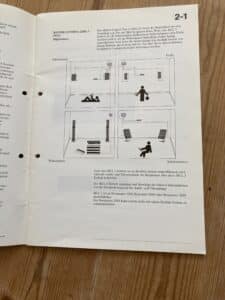

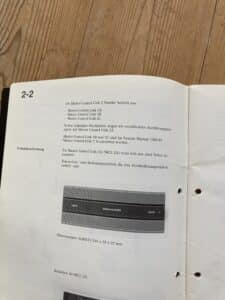

System Manual 1987/88 – Beolink (~1988)
In the preface of the manual it is mentioned that it gives a complete overview of the Beolink systems and Master Control Link 2 systems from bang & Olufsen.
The system manual specifically mentions the following products:
MCL2A (type 2045)
MCL2B (type 2005)
MCL2C (type 2009)
MCL2E (expander type 2007/2008 )
Beomaster 3300
Beomaster 5500
Beocenter 9000
Beovision LX2500/2800
Beovision LX2502/2802
Beocord VHS 91 / 91.2
Beocord VHS 82 / 82.2
System Manual 89 90 – Master Control Link 2 (~1990)
In the preface of this manual it is mentioned that it focuses in detail on the features of the MCL2 products
The system manual specifically mentions the following products:
MCL2ABLI* probably type 2046 or 2047
MCL2AV (type 2020)
MCL2P (type 1741-1745)
MCL2E (expander type 2007/2008)
* BLI is short for Beolink in this context. It is mentioned that this verison is a replacement for MCL2A (probably type 2045 that was used in the earlier system manual).
In the setup examples the following products are also mentioned/shown
Beovision MX5000
Beomaster 4500
Beomaster 5500
Beocenter 9000
LC1
Local Control System -Master Cotrol Link Handbook (~1993)
In the preface it is mentioned that the handbook gives an introduction to the basic rules for the MCL product programme 92/93 and future programmes.
The handbook specifically mentions the following link products:
X-tra speaker kit (MCL2A type 2047 with tranciever))
X-tra active speaker kit (MCL2AV type 2025-2028 with tranciever)
X-tra TV kit (MCL2AV type 2031-2032 without tranciever)
MCL2P (type 1741-1745)
System setup examples are shown with the following audio and video products (not all are mentioned by name but only with a drawing):
Beovision MX
Beossystem 2500
Beosystem 6500/7000
LC2
Beolink – Master Cotrol Link Handbook (~1994)
In the preface it is mentioned that it is an introduction to the basic rules for the MCL product programme until 1994, which judging by the examples in the handbook also includes combinations with Master Link products.
The handbook specifically mentions the following link products:
X-tra speaker kit (MCL2A type 2047 with tranciever))
X-tra active speaker kit (MCL2AV type 2025-2028 with tranciever)
X-tra TV kit (MCL2AV type 2031-2032 without tranciever)
Beolab 3500 (LCS9000) type 1601-1605
Beolink Converter type 1613/1614
AV9000 Audio kit type 1610
ML/MCL converter type 1650-1653
LC2
System setup examples are shown with the following audio and video products (not all are mentioned by name but shown with a drawing):
Beovision AV9000
Beovision Avant
Beovision MX
Beosound Ouverture
Beosystem 5500/6500/7000
MCP AV9000
