Beogram 4002 internal RIAA connections from BO upgrade kit

[schanzenbaecher]

Hi all,

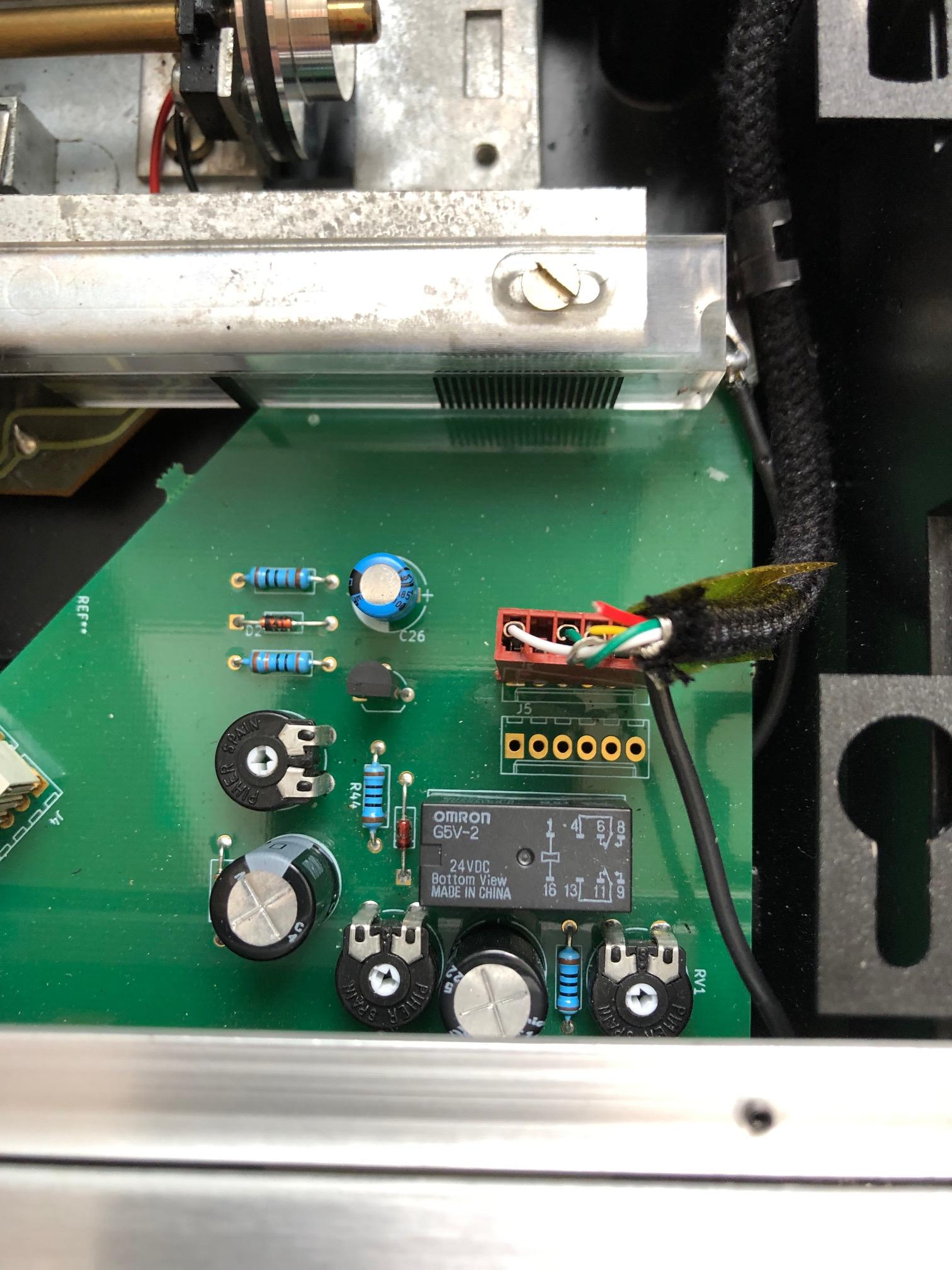

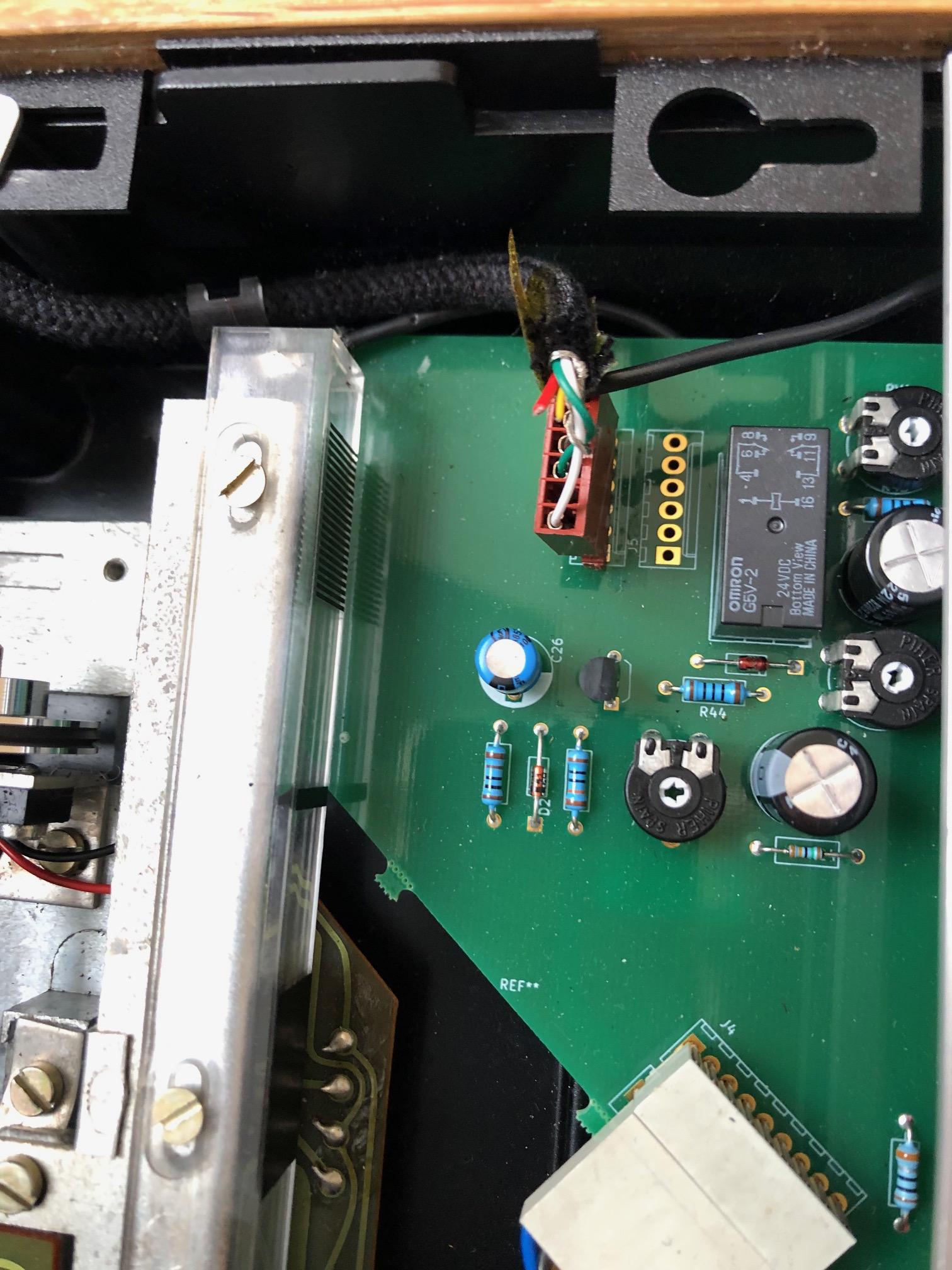

my BG4002 with internal RIAA from the B&O upgrade kit shows the following wire connections on the board: two wires are connected (white and green corresponding to right and left channel). The red and the yellow wire are cut off and not connected to the board. The BG has a 5 pin braided signal cable from the upgrade kit. With high volume there ist background noise and hum. Has somebody experience with the wire connections of the B&O upgrade kit? I appreciate your help.

Peter
