Home Forums Product Discussion & Questions BeoGram Beogram 1203 motor restoration, missing piece

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • #51764
    maybejensen
    BRONZE Member

    hey all, I’m restoring a Beogram 1203 my dad gave me for christmas.

    It had a bunch of different issues, but mainly the motor was running too slow. After a re-lube and some cleaning it’s now at almost perfect speed. However, during assembly i must have forgot a piece, because the motor is making a constant noise, and i found this on my table after reassembling it.

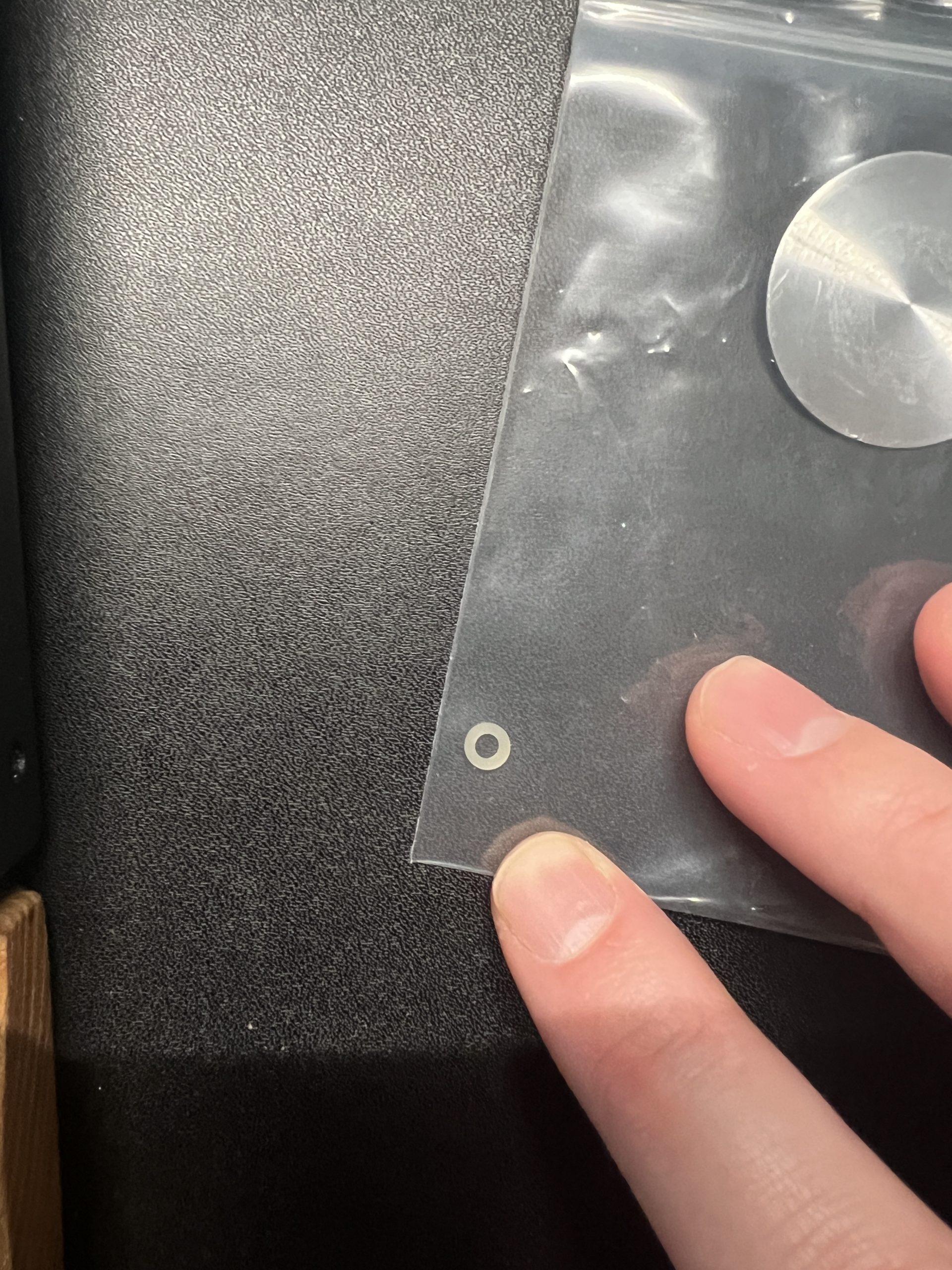

    Does anyone know where this rubber ring is this supposed to go?

    IMG_6319-scaled

    #59893
    M J Vink
    SILVER Member

    I think is was situated on the axle  between the pulley and the engine, or inside the engine also on the axle between lower bearing and anchor. Not essential.

    #59963
    Dillen
    Moderator

    It’s an oil stop.
    It prevents oil from the bearing creeping up the spindle to the pulley.

    Martin
